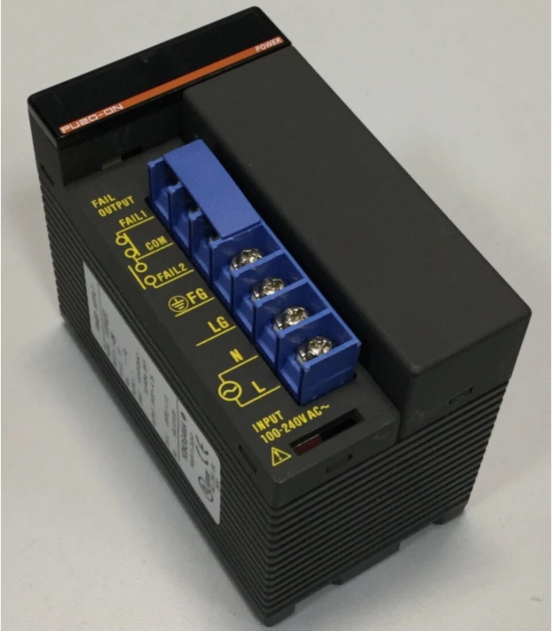

YOKOGAWA F3PU20-0NS1 240V AC PLC Power Contrator Supply Module
Description
| Manufacture | Yokogawa |
| Model | F3PU20-0NS1 |
| Ordering information | F3PU20-0NS1 |
| Catalog | Centum VP |
| Description | YOKOGAWA F3PU20-0NS1 240V AC PLC Power Contrator Supply Module |
| Origin | Indonesia |
| HS Code | 3595861133822 |
| Dimension | 3.2cm*10.7cm*13cm |
| Weight | 0.3kg |
Details
Product Details:
| Brand Name | YOKOGAWA |
| Model | F3PU20-0NS1 |
| Condition | New |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country | United States (USA) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depend on product |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Description | |
| Supply voltage | 100-240 V AC, single phase, 50/60 Hz |
| Supply voltage fluctuation range | 85-264 V AC, 50/60 Hz ±3 Hz |
| Power consumption | 85 VA |
| Inrush current | 20 A max.(120 V AC,Ta=25°C)45 A max.(240 V AC,Ta=25°C) |
| Rated output voltage | 5 V DC |
| Rated output current | 4.3 A |
| Insulation resistance | 500 V DC 5 MΩ or more between external AC terminals and FG terminal |
| Dielectric strength | 1500 V AC for 1 minute between external AC terminals and FG terminal |
| Allowable momentary power failure time | 20 ms |
| Noise immunity | Noise level: 1500 Vp-p when measured by a noise simulator having a 1 µs of noise pulse width, 1 ns of rise time, and 25 Hz to 60 Hz of repetition frequency. |
Description:
The F3PU10-0N is used for the F3BU04-0N and F3BU06-0N base modules. The F3PU20-0N and F3PU26-0N are used for the F3BU09-0N, F3BU13-0N and F3BU16-0N base modules.
FA-M3 base modules serve as the base for accommodating various modules. FA-M3 base modules are available in 4-, 6-, 9-, 13- and 16-slot versions. Choose an appropriate base module according to the target system requirements. There are no differences between main units and sub-units.
FA-M3 power supply modules supply power to the FA-M3 Range-free Multi-controllers. One power supply module is required for each FA-M3 base module.
