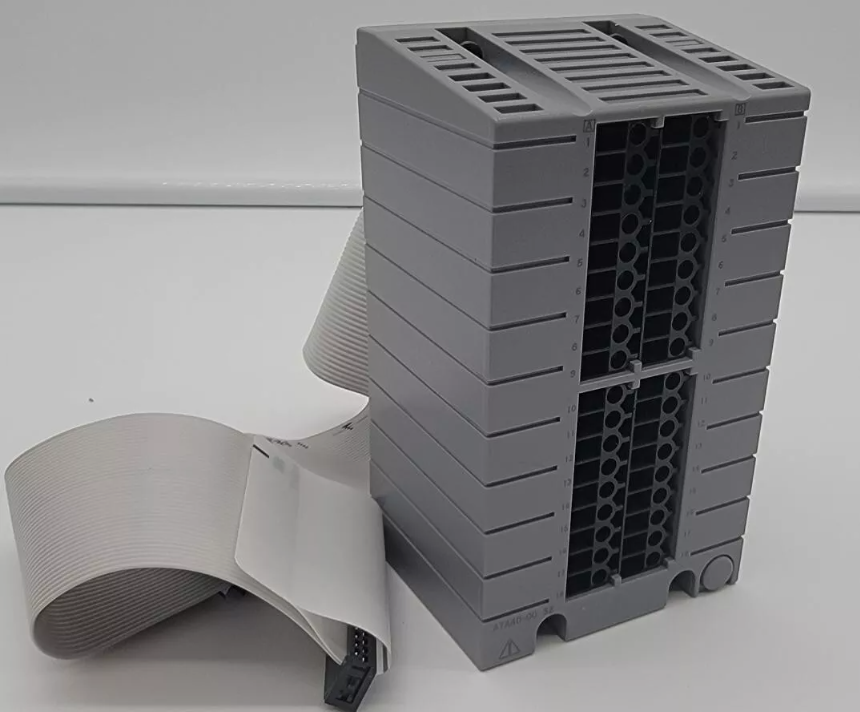

Yokogawa ATA4D-00 Dual-Redundant Pressure Clamp Terminal Block for Analog
Description
| Manufacture | Yokogawa |
| Model | ATA4D-00 |
| Ordering information | ATA4D-00 |
| Catalog | Centum VP |
| Description | YOKOGAWA ATA4D-00 Dual-Redundant Pressure Clamp Terminal Block for Analog |
| Origin | Indonesia |
| HS Code | 3595861133822 |
| Dimension | 6.5cm*7.2cm*11.4cm |
| Weight | 0.3kg |
Details
GENERAL
This GS covers the hardware specifications of the Terminal Block that can be used for I/O Modules (FIO) of CENTUM VP. For the Terminal Block that can be used for I/O Modules with Built-In Barrier, see “Terminal Block (for I/O Modules with Barrier (GS 33J60H40-01EN)”.
STANDARD

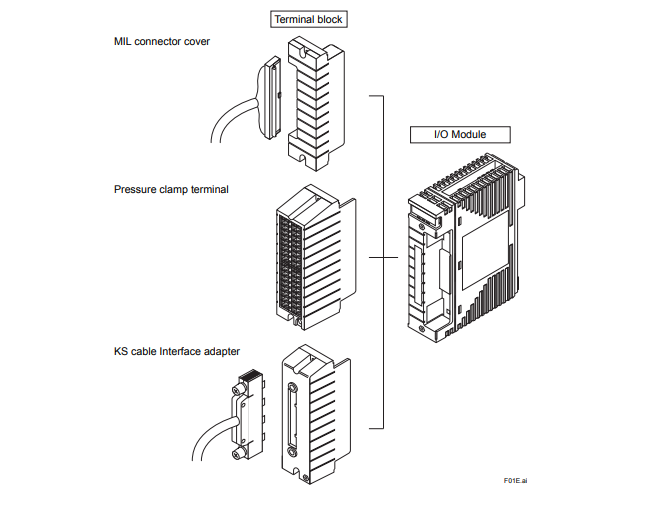

SPECIFICATIONS Variation of Connection I/O Modules can be connected to field devices with terminal block. Three types of terminal blocks are available: Pressure Clamp Terminal, KS Cable Interface Adapter, MIL Connector Cover. There is a pressure clamp terminal with surge absorber to preserve I/O modules from surge immunity. (Conforms to EMC standards EN 61000-6-2)
