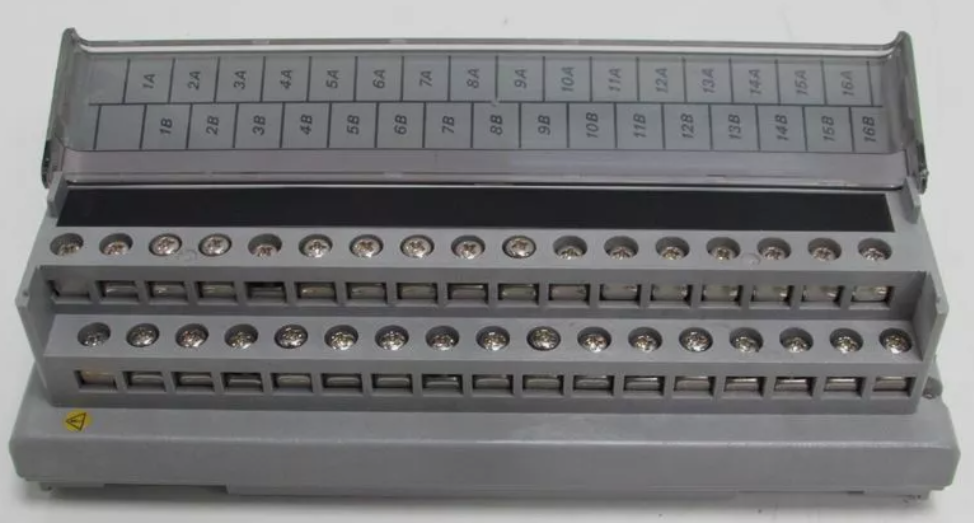

Yokogawa AMM12T-S2 Voltage Input Multiplexer Module
Description
| Manufacture | Yokogawa |
| Model | AMM12T-S2 |
| Ordering information | AMM12T-S2 |
| Catalog | Centum VP |
| Description | YOKOGAWA AMM12T-S2 Voltage Input Multiplexer Module |
| Origin | Singapore |
| HS Code | 3595861133822 |
| Dimension | 3.2cm*10.7cm*13cm |
| Weight | 0.3kg |
Details
Protection of RIO Module Vacant Slots When I/O modules are not installed, dummy covers should be provided for the backboard connectors to protect them against corrosion. T9081EF: Dummy frame for AMN1 Nest (Analog I/O Module ) T9081FB: Dummy frame for RJC (AMN1 Nest ) T9081CV (*1): Dummy plate for AMN3 Nest (Digital I/O Module, Multiplexer Module, etc.)

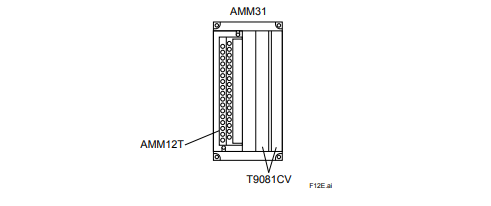

*1: The width of T9081CV is same as that of Multiplexer Module (Connector Type) or Digital I/O module (Connector type). So, in some cases, two T9081CV are required for one vacant slot.
