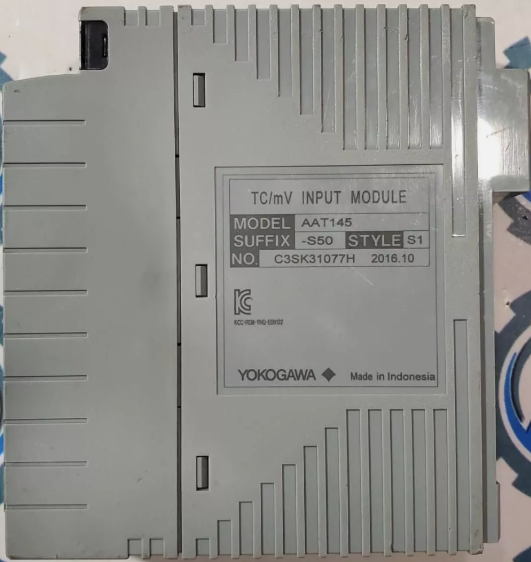

Yokogawa AAT145-S50 TC/RTD Input Modules
Description
| Manufacture | Yokogawa |
| Model | AAT145-S50 |

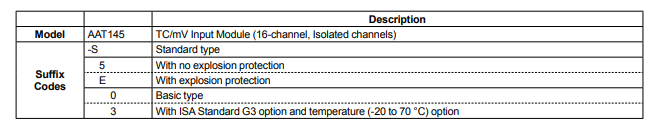

| Ordering information | AAT145-S50 |
| Catalog | Centum VP |
| Description | YOKOGAWA AAT145-S50 TC/RTD Input Modules |
| Origin | Singapore |
| HS Code | 3595861133822 |

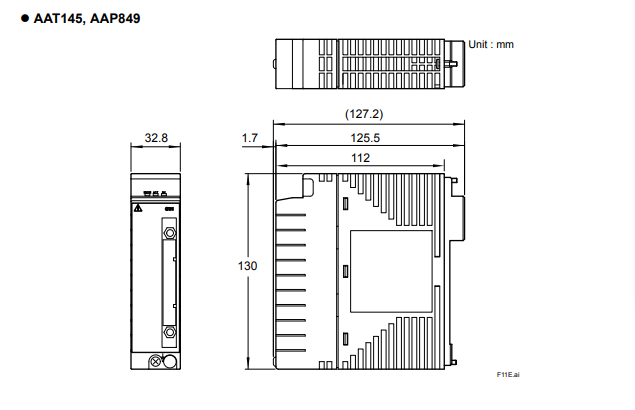

| Dimension | 3.2cm*10.7cm*13cm |
| Weight | 0.3kg |
Details
GENERAL This document describes about hardware specifications of Analog I/O Modules (for FIO) to be installed in the ESB bus node units (ANB10S and ANB10D), Optical ESB bus node units (ANB11S and ANB11D), ER bus node units (ANR10S and ANR10D) (*1), and field control units (for FIO) (AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D, AFF50S, and AFF50D). These analog I/O modules function as signal converters; by inputting field analog signals into these modules, it converts them to internal data for field control stations (FCS), or the FCS’s internal data to analog signals for outputs.
*1: Field control units (AFV30 and AFV40) do not support ER bus node unit (ANR10).

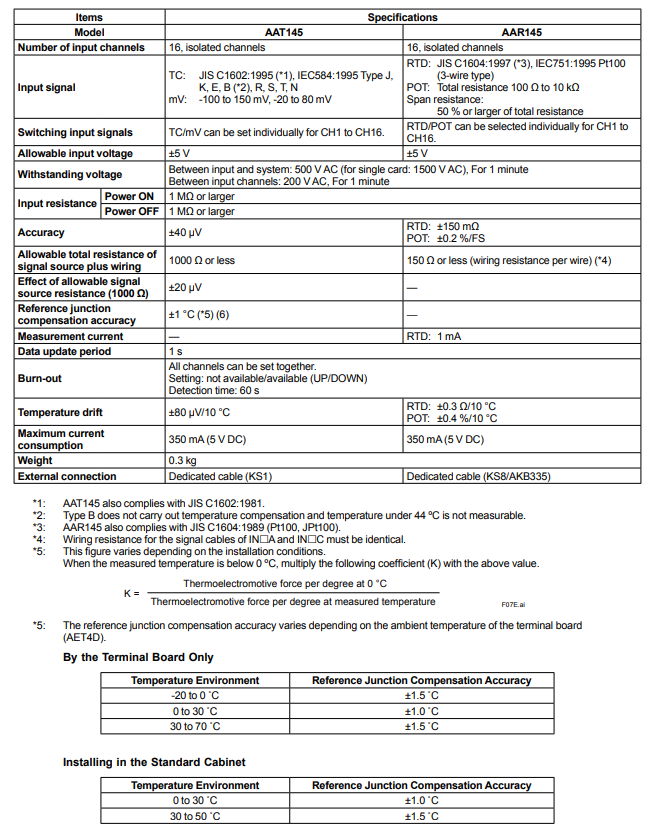

TC/RTD Input Modules (Isolated Channels) These modules receive signals from mV, thermocouple (TC), RTD, and potentiometer (POT), and they are isolated between the field and the system as well as in between each channel. They can be used in dual-redundant configuration.
