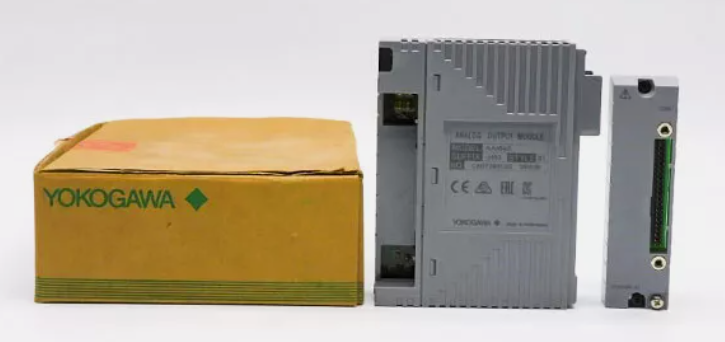

Yokogawa AAI543-H53-S1 Analog Output Module
Description
| Manufacture | Yokogawa |
| Model | AAI543-H53-S1 |
| Ordering information | AAI543-H53-S1 |
| Catalog | Centum VP |
| Description | YOKOGAWA AAI543-H53-S1 Analog Output Module |
| Origin | Indonesia |
| HS Code | 3595861133822 |
| Dimension | 3.2cm*10.7cm*13cm |
| Weight | 0.3kg |
Details
This document describes about hardware specifications of Analog I/O Modules (for FIO) to be installed in the ESB bus node units (ANB10S and ANB10D), Optical ESB bus node units (ANB11S and ANB11D), ER bus node units (ANR10S and ANR10D) (*1), and field control units (for FIO) (AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D, AFF50S, and AFF50D). These analog I/O modules function as signal converters; by inputting field analog signals into these modules, it converts them to internal data for field control stations (FCS), or the FCS’s internal data to analog signals for outputs.
*1: Field control units (AFV30 and AFV40) do not support ER bus node unit (ANR10).
