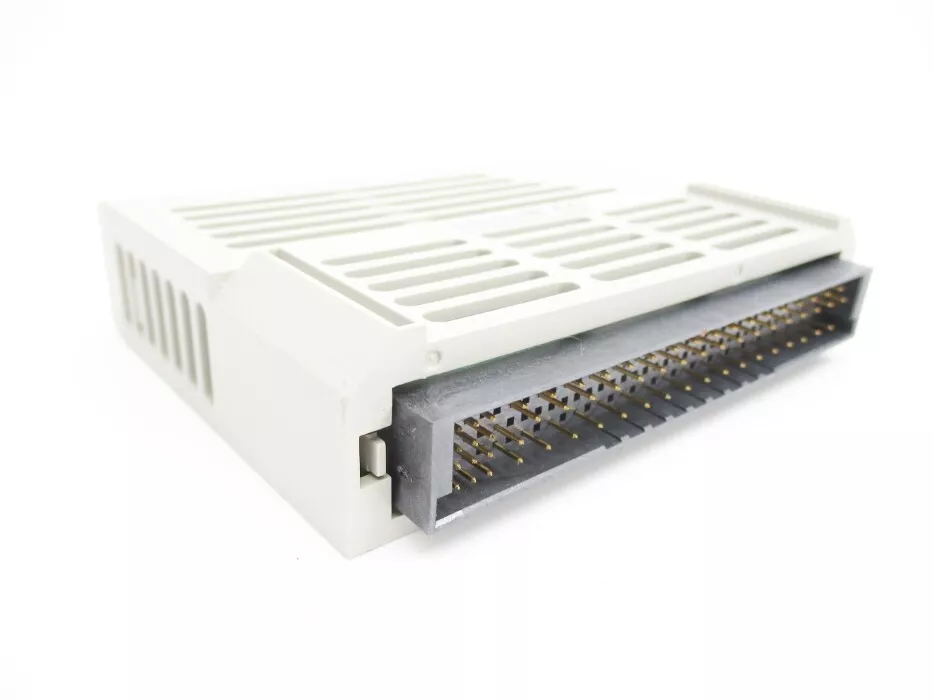

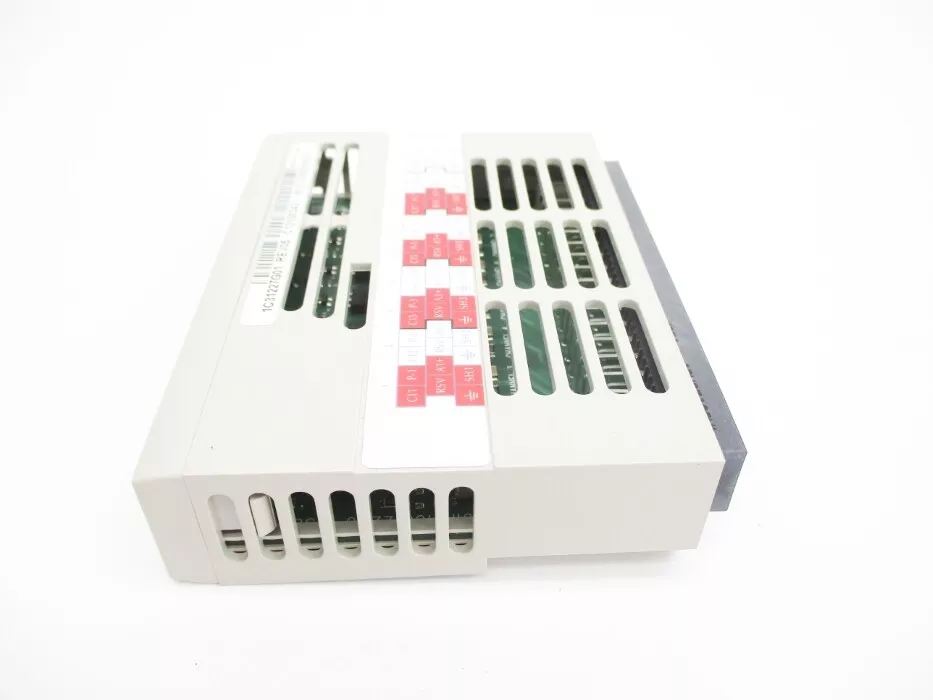

Westinghouse 1C31227G01 Analog Input module
Description
| Manufacture | Westinghouse |
| Model | 1C31227G01 |
| Ordering information | 1C31227G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31227G01 Analog Input module |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
5-2.2. Personality Modules
There are two groups of Personality modules for the 14 Bit Analog Input Module:
• 1C31227G01 provides current signals with an input range of 4 to 20 mA.
• 1C31227G02 provides voltage signals with an input range of ± 1V
5-4. External Power Supplies
Note
Module power specifications (main and auxiliary)
refer to the actual power drawn by the module from
the 24VDC main power supply and from the
auxiliary power supply (if required) and NOT from
the AC or DC Mains.
If the 14 Bit Analog Input module uses the 1C31227G01 Personality module, the
required voltage source is obtained from the internal auxiliary power supply
(backplane).

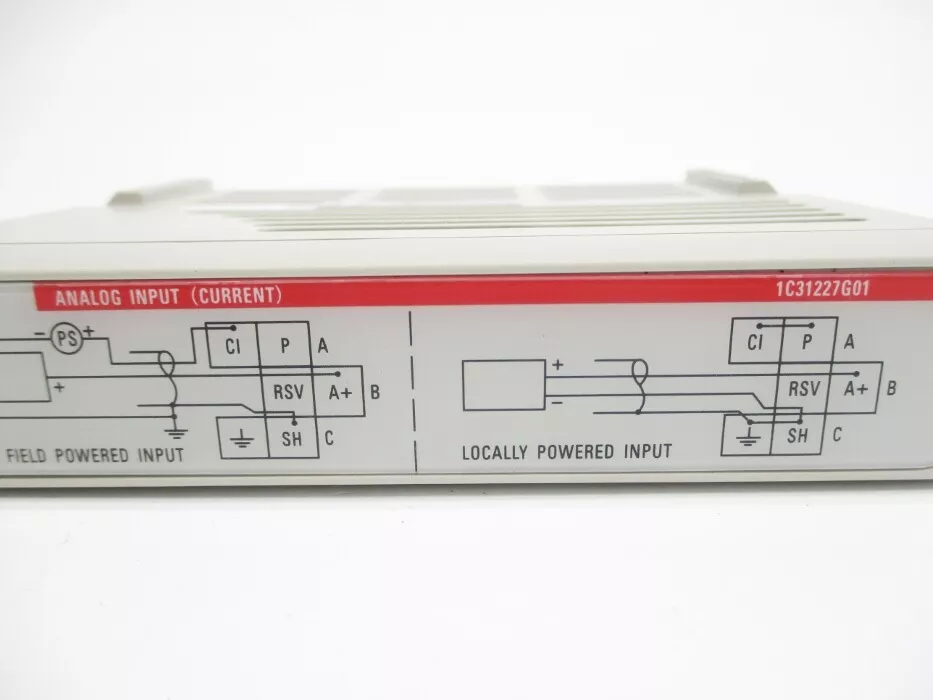

Also, personality module 1C31227G01 supports field-powered configurations.
