Westinghouse 1C31223G01 Relay Output Module G2R
Description
| Manufacture | Westinghouse |
| Model | 1C31223G01 |
| Ordering information | 1C31223G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31223G01 Relay Output Module G2R |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

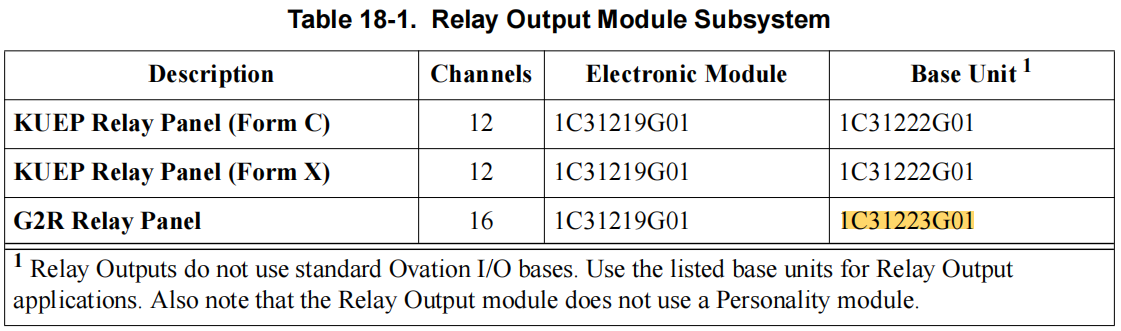

18-2.2. Relay Output Base Assemblies
There are two different styles of Relay Output base assemblies:

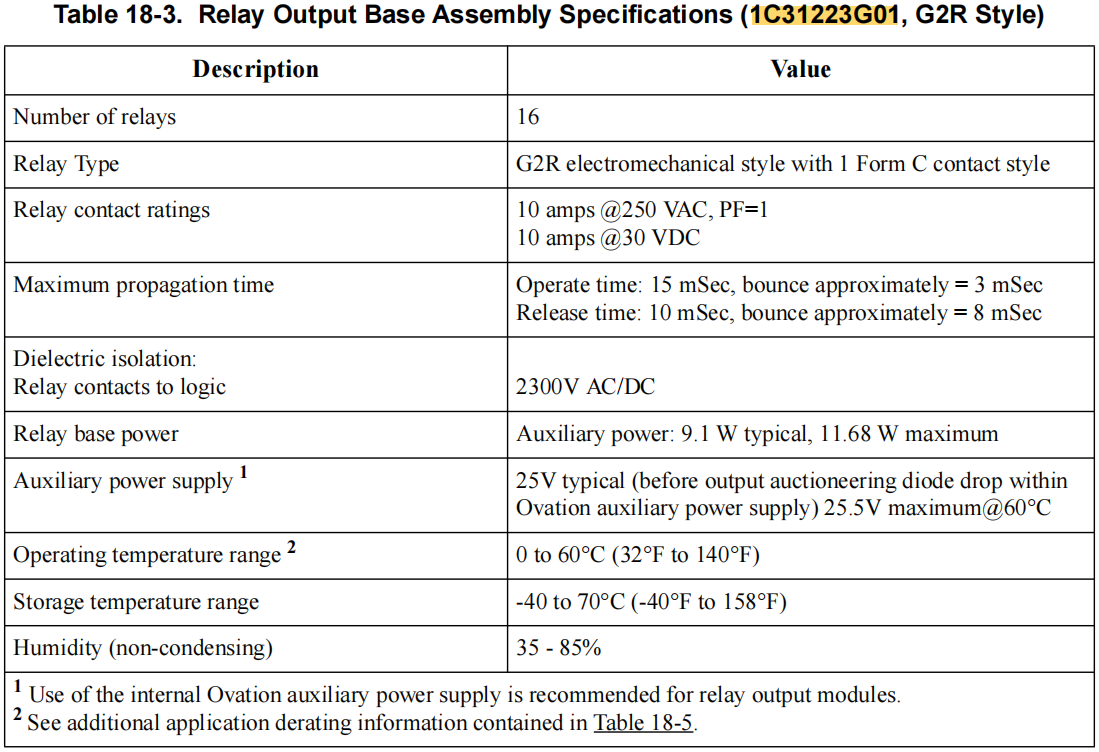

• 1C31223G01 is configured with 16 Form C (G2R style) relays which switch high AC and DC voltages at high currents. Each relay contains one Form C contact arrangement which is brought to terminal blocks for user connections.
• 1C31222G01 is configured at the project level with either 12 Form C (KUEP style) or 12 Form X (KUEP style) relays which switch high AC and DC voltages at high currents.
In the case of the Form C relay, only one of the contact pairs within the relay is available at the terminal blocks for user connection. The KUEP style relay bases (1C31222G01) have the advantage of being able to switch larger DC voltages at higher currents than the G2R style relay bases (1C31223G01).
Relay Contact Ratings must be adhered to when utilizing the Relay Output Module Assemblies. The application must include external current limiting protection for the Relay Output Module Assemblies.
