Westinghouse 1C31222G01 Relay Output Module KUEP
Description
| Manufacture | Westinghouse |
| Model | 1C31222G01 |
| Ordering information | 1C31222G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31222G01 Relay Output Module KUEP |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
18-2.2. Relay Output Base Assemblies

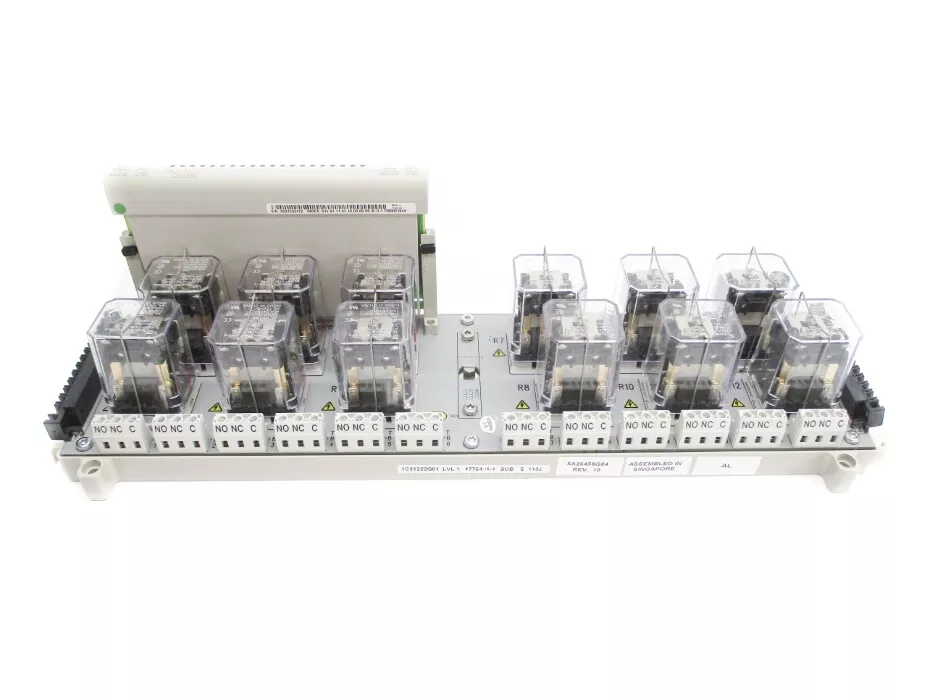

• 1C31222G01 is configured at the project level with either 12 Form C (KUEP style) or 12 Form X (KUEP style) relays which switch high AC and DC voltages at high currents.
In the case of the Form C relay, only one of the contact pairs within the relay is available at the terminal blocks for user connection. The KUEP style relay bases (1C31222G01) have the advantage of being able to switch larger DC voltages at higher currents than the G2R style relay bases (1C31223G01).

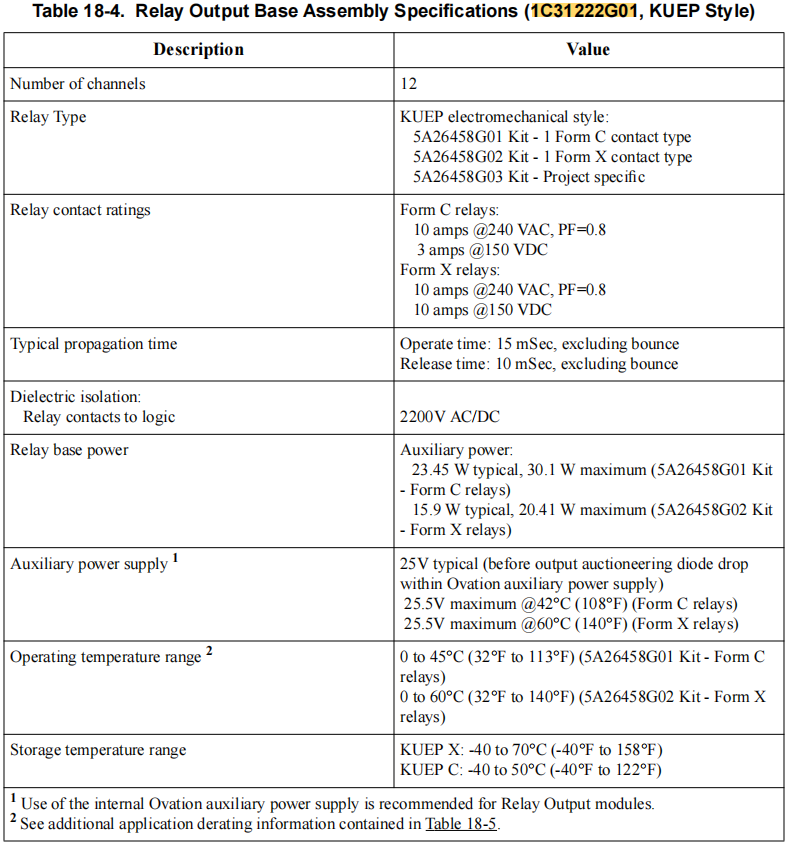

Relay Contact Ratings must be adhered to when utilizing the Relay Output Module Assemblies. The application must include external current limiting protection for the Relay Output Module Assemblies.
