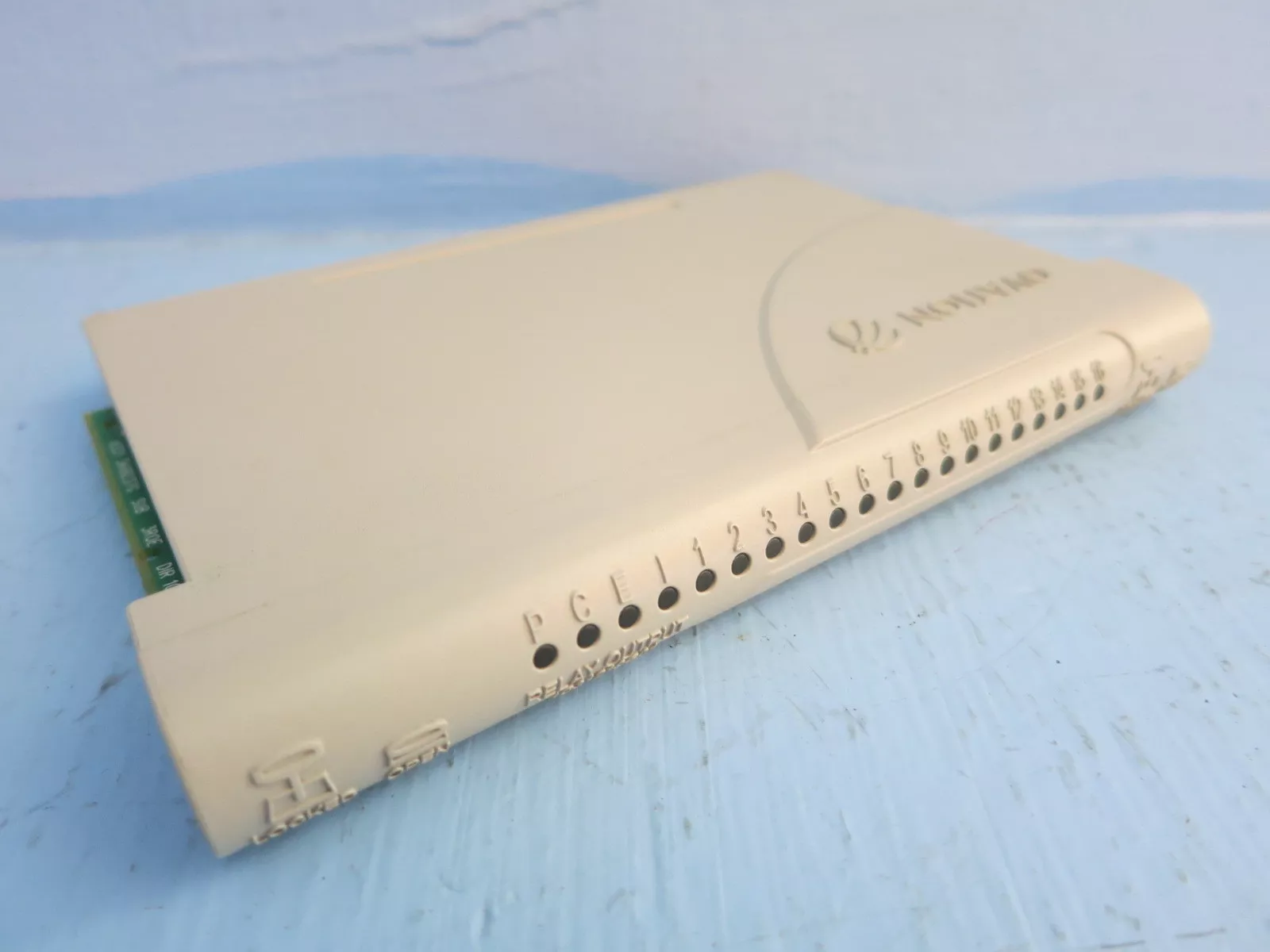

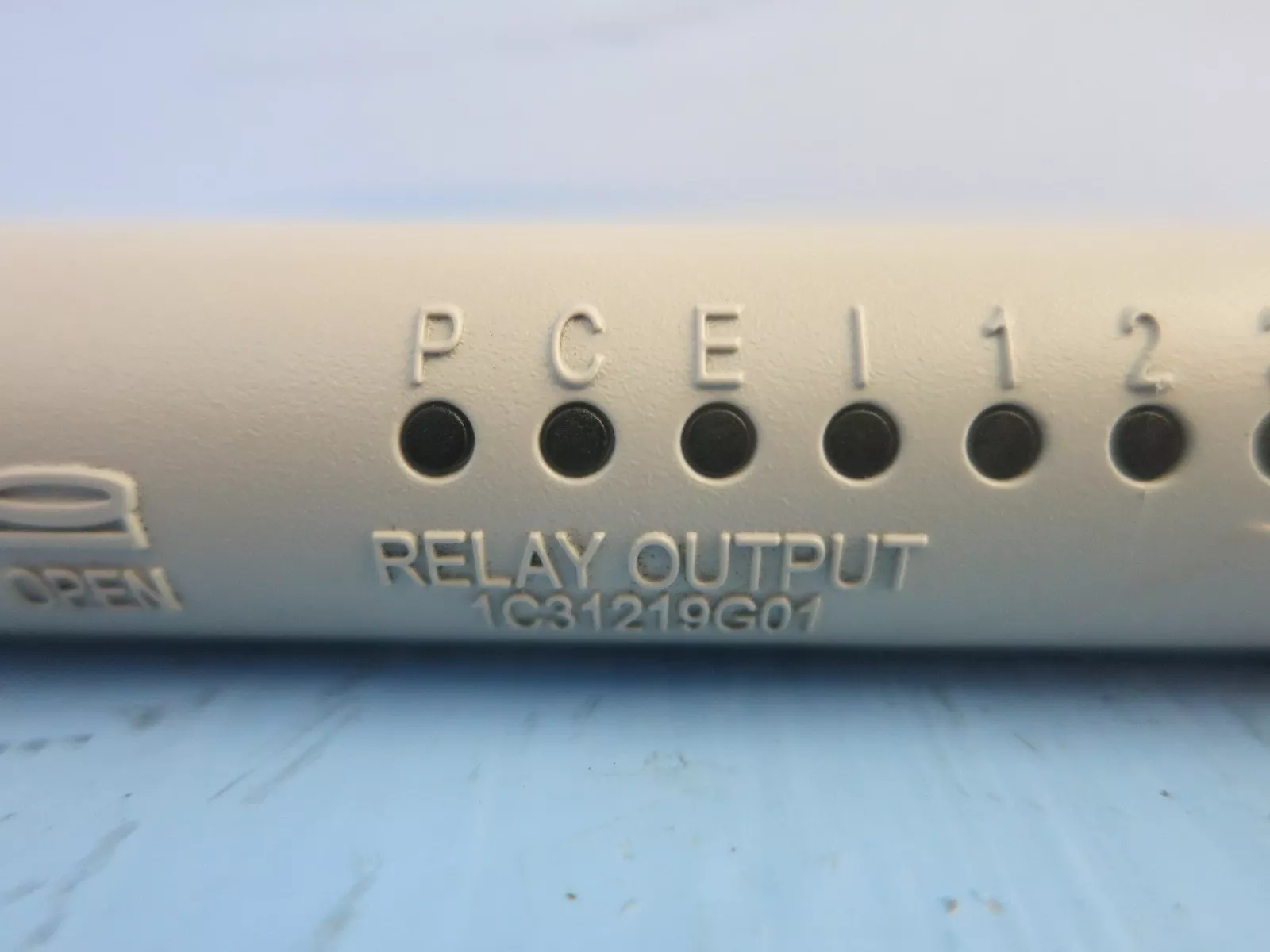

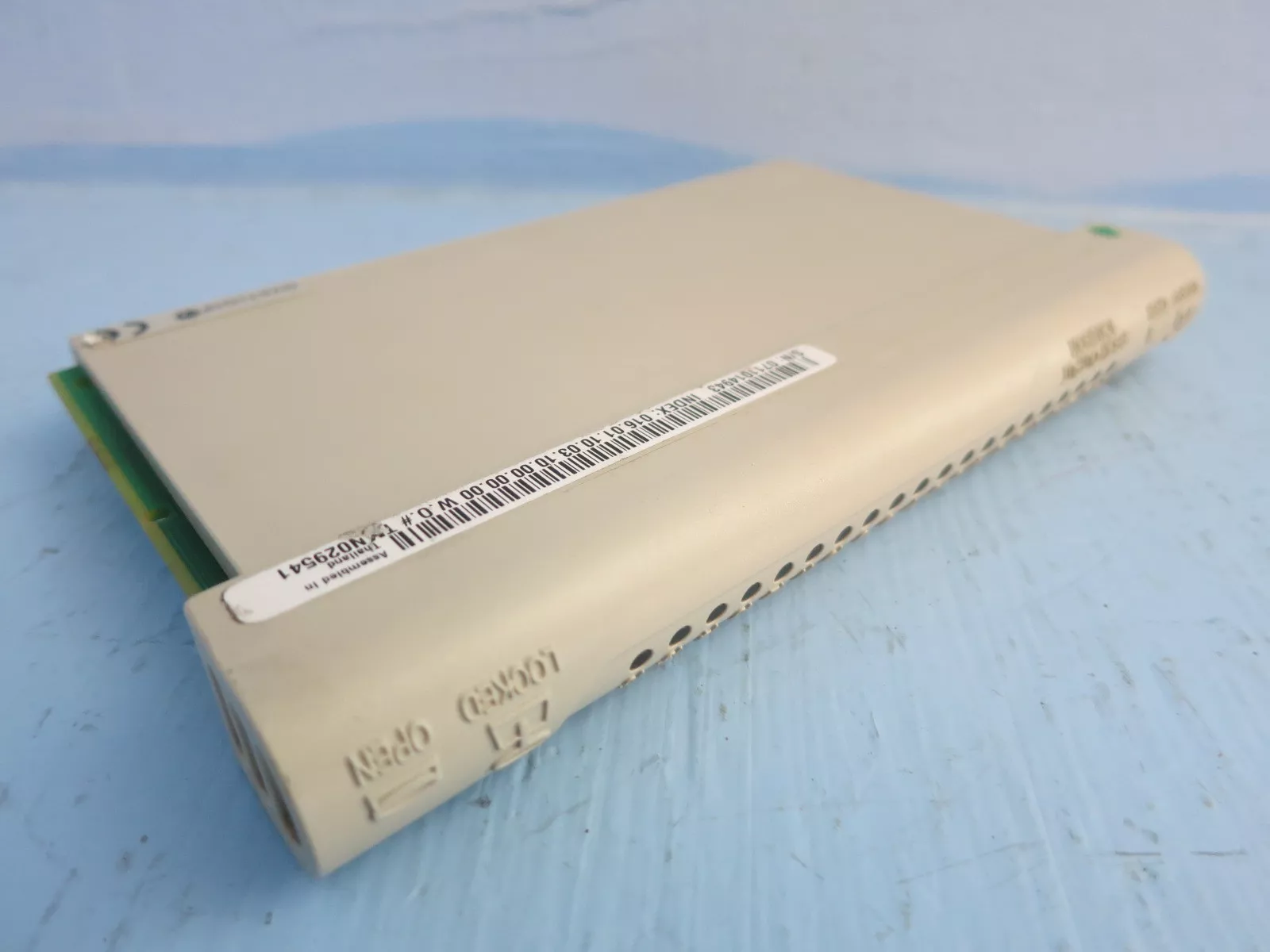

Westinghouse 1C31219G01 Relay Output module
Description
| Manufacture | Westinghouse |
| Model | 1C31219G01 |
| Ordering information | 1C31219G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31219G01 Relay Output module |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

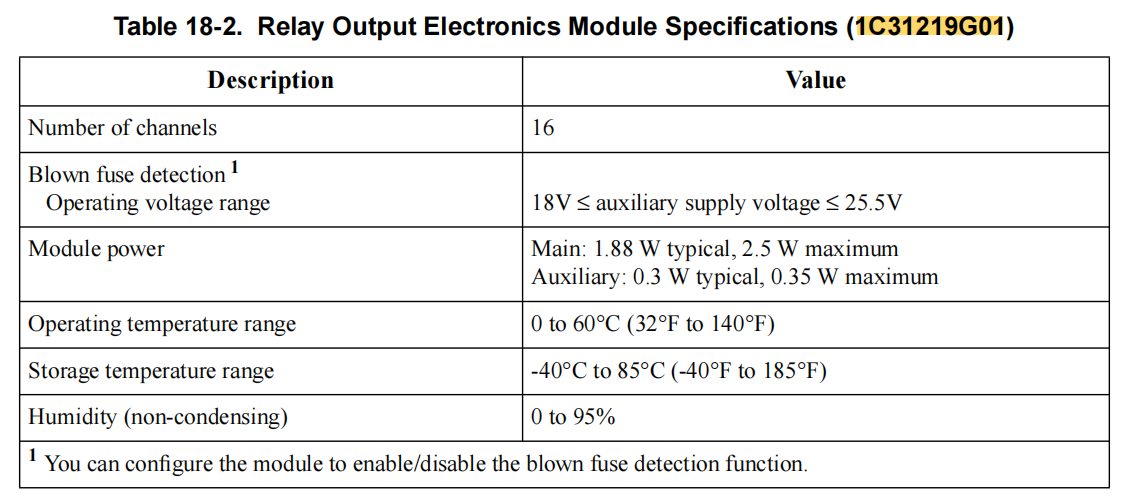

18-2.1. Electronic Module
There is one Electronics module group for the Relay Output module:
• 1C31219G01 provides an interface between the Ovation Controller and the mechanical relays that are used to switch high AC and DC voltages at highcurrents. This module plugs into the Relay Output base assembly.
Note
The Relay Output base assembly does not incorporate a Personality module.
Relay Contact Ratings must be adhered to when utilizing the Relay Output Module Assemblies. The application must include external current limiting protection for the Relay Output Module Assemblies.
