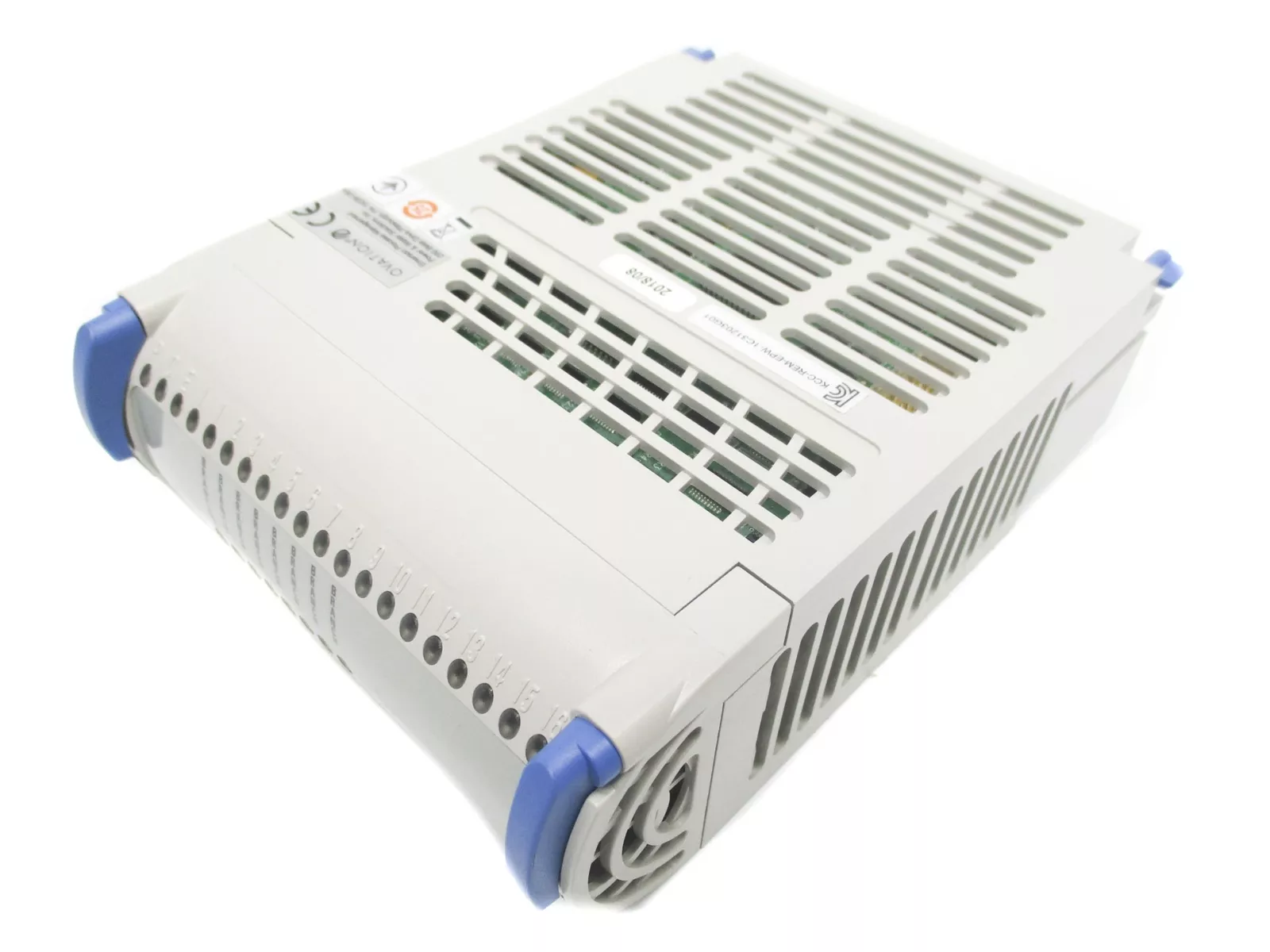

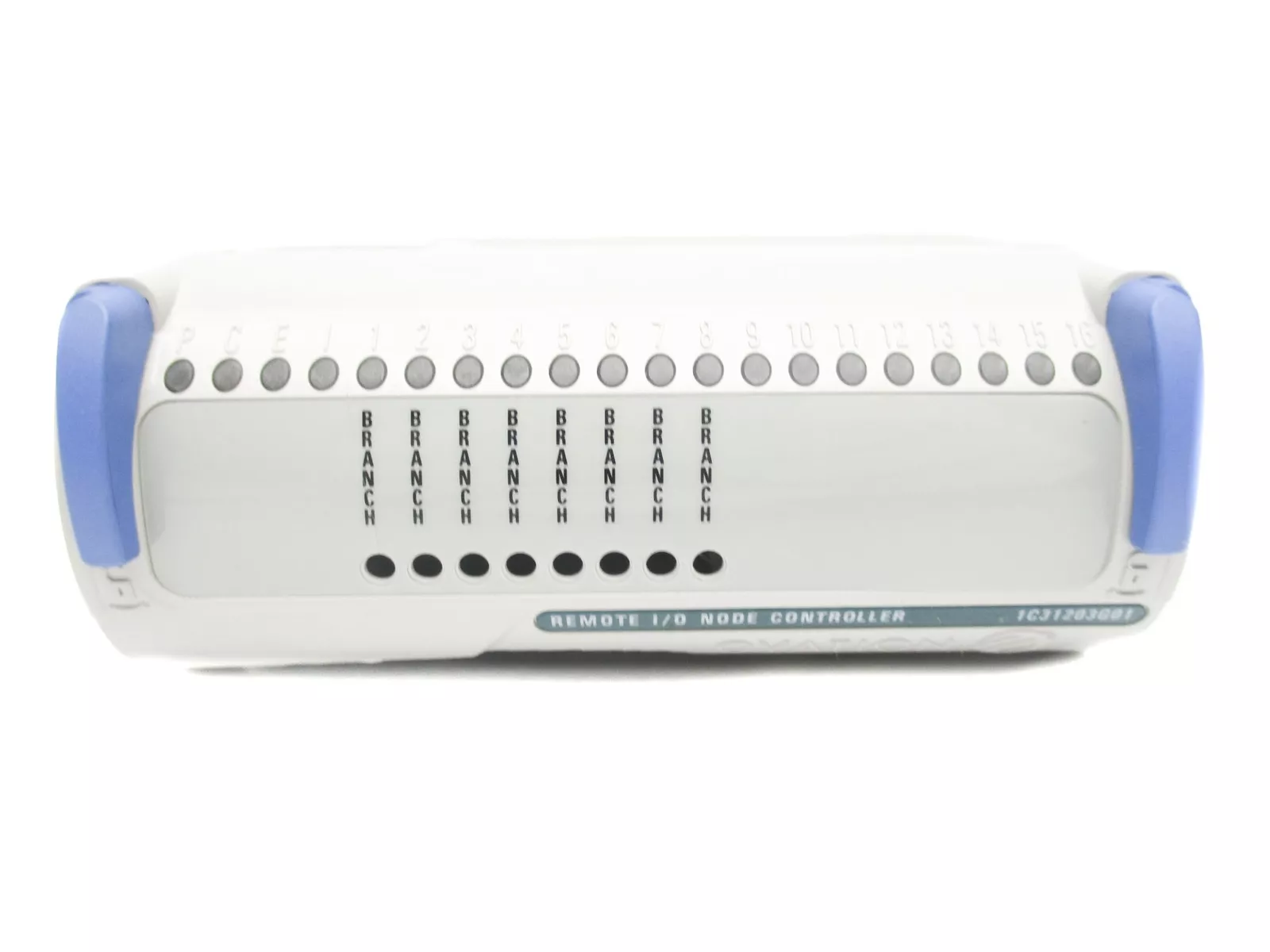

Westinghouse 1C31203G01 Remote Node Electronics Module
Description
| Manufacture | Westinghouse |
| Model | 1C31203G01 |
| Ordering information | 1C31203G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31203G01 Remote Node Electronics Module |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
27-4. Remote Node Cabinet Components
• Remote Node Electronics Module (1C31203G01) - Houses the Remote Node Logic Board (LND) and the Remote Node Field Board (FND). The electronics module prepares messages received from the remote I/O Controller for the local I/O modules at the remote node. When an I/O module responds to the message, the module prepares the response to be sent back to the Controller over the fiber optic media. The LND provides +5V power for the module.
• Remote Node Controller Base (1C31205G01) - This unique base holds a maximum of two Remote Node Modules and interfaces directly to two I/O branches. It provides a rotary switch for node addressing and a D-connector for interfacing to as many as six additional I/O branches using a local I/O communications cable. The RNC base unit is connected to the Remote Node Transition Panel described below.
