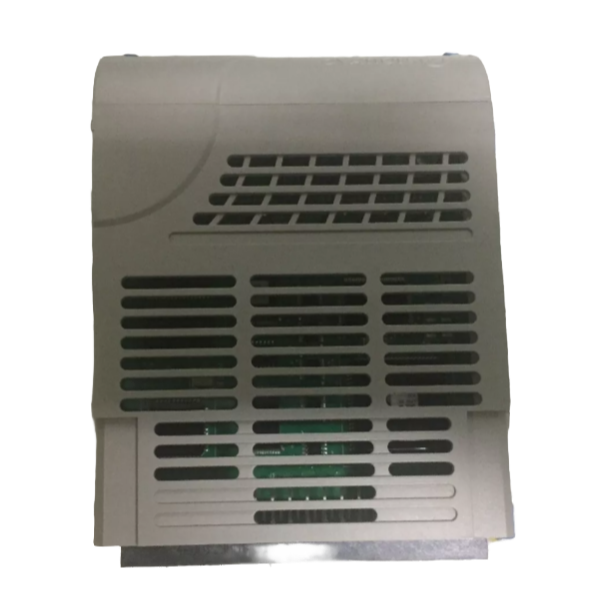

Westinghouse 1C31169G02 Link Controller Module
Description
| Manufacture | Westinghouse |
| Model | 1C31169G02 |
| Ordering information | 1C31169G02 |
| Catalog | Ovation |
| Description | Westinghouse 1C31169G02 Link Controller Module |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

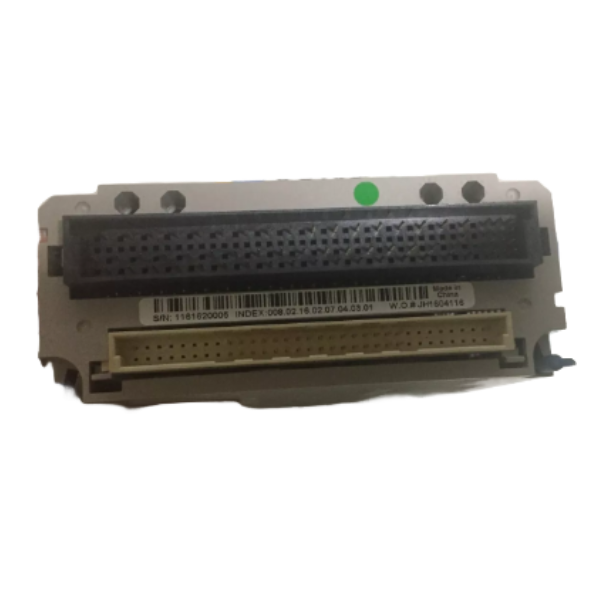

15-2.2. Personality Modules

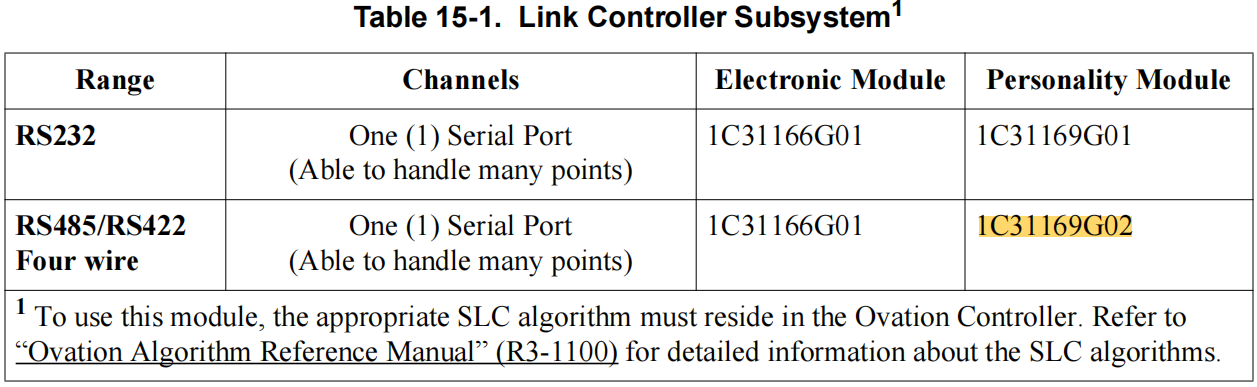

There are two Personality module groups for the Link Controller Module:
• 1C31169G01 provides for an RS-232 serial link (in CE Mark certified systems, the application port cable must be less than 10 meters (32.8 ft)).
• 1C31169G02 provides for an RS-485 serial link (also may be used to provide for an RS-422 serial link).
