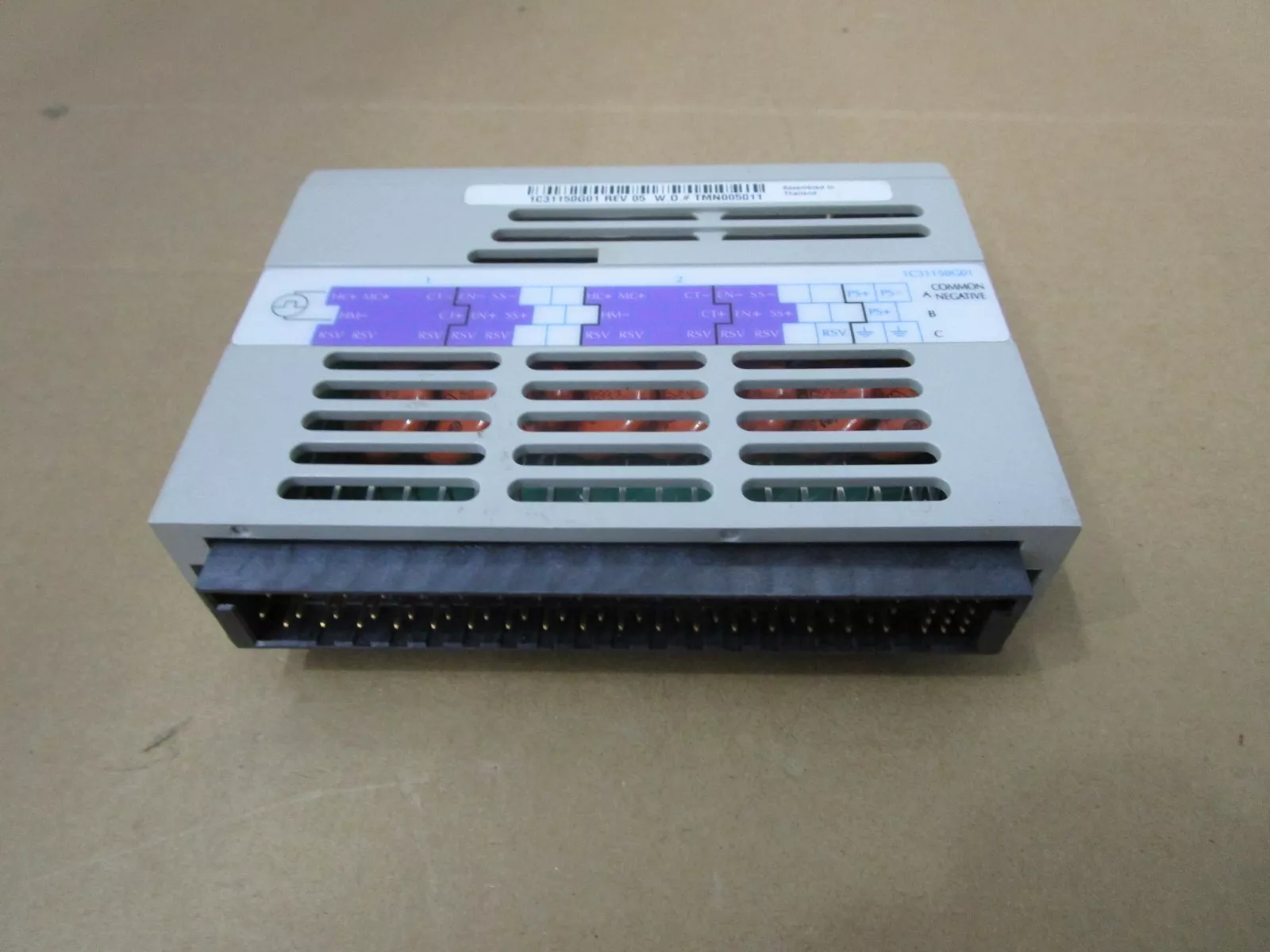

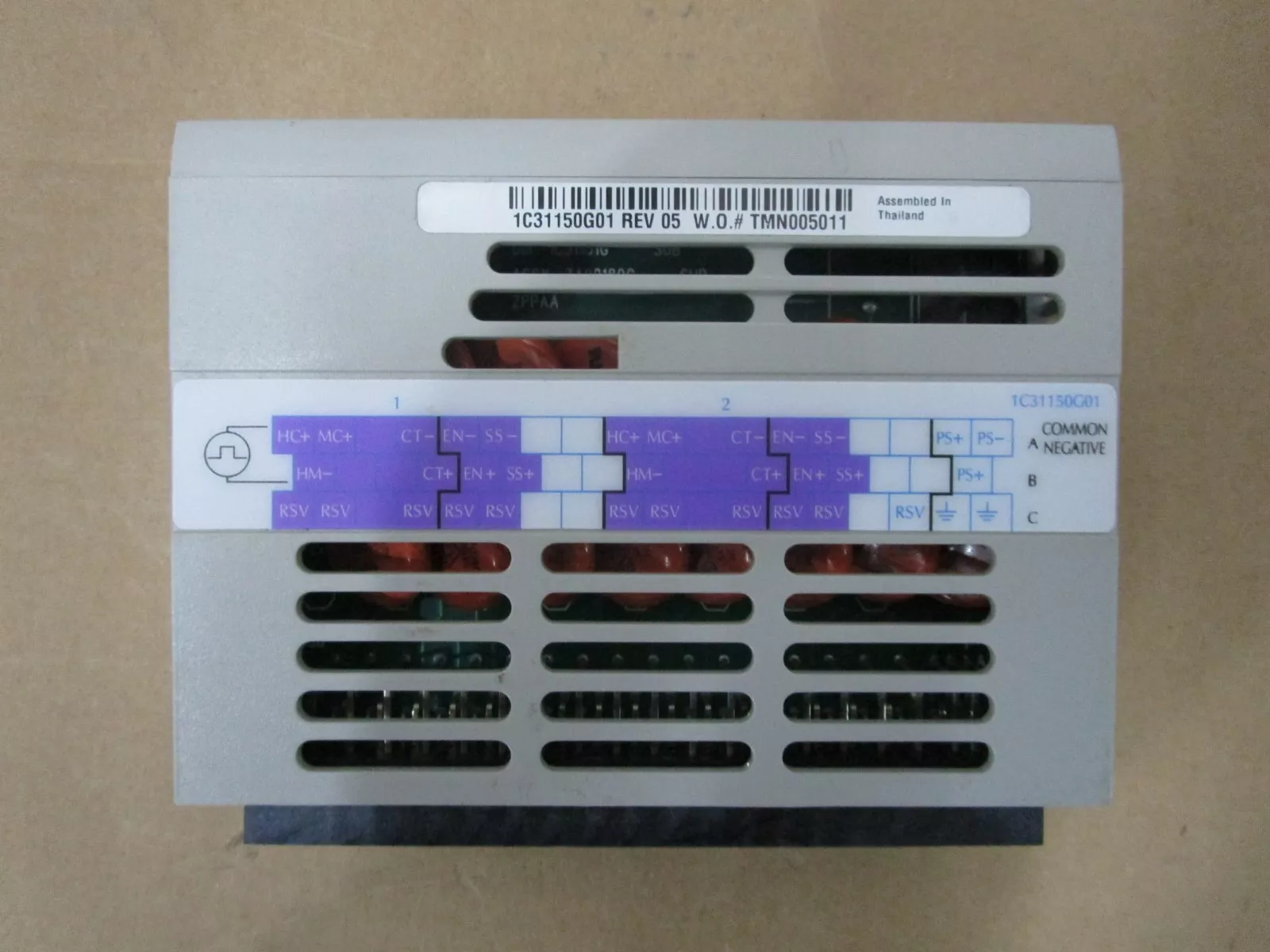

Westinghouse 1C31150G01 Pulse Accumulator Module
Description
Manufacture | Westinghouse |
Model | 1C31150G01 |
Ordering information | 1C31150G01 |
Catalog | Ovation |
Description | Westinghouse 1C31150G01 Pulse Accumulator Module |
Origin | Germany |
HS Code | 85389091 |
Dimension | 16cm*16cm*12cm |
Weight | 0.8kg |
Details
17-2.2. Personality Modules
There are three groups of Personality modules for the Pulse Accumulator Module:
• 1C31150G01 accepts 24/48 V count and control inputs from dry contacts or from open-collector transistor drivers. The input signals are low-true and are referenced to the branch internal auxiliary power supply return (common negative).
• 1C31150G02 accepts 24/48 V count and control inputs from dry contacts. The input signals are high-true and are referenced to the branch internal auxiliary power supply positive rail (common positive).
• 1C31150G03 provides dedicated 24/48 V count and control field input power for just this Pulse Accumulator Electronics module. The field input power is obtained from an external DC power supply that is connected to two base unit terminal block terminals (DSA and DSB).
