Westinghouse 1C31122G01 Digital Output Module(0 – 60 VDC)
Description
| Manufacture | Westinghouse |
| Model | 1C31122G01 |
| Ordering information | 1C31122G01 |
| Catalog | Ovation |
| Description | Westinghouse 1C31122G01 Digital Output Module(0 - 60 VDC) |
| Origin | Germany |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
12-2. Module Groups
12-2.1. Electronics Module
There is one Electronics module group for the Digital Output Module:
• 1C31122G01 provides for switching 60 VDC loads.
12-2.2. Personality Modules
There are three Personality module groups for the Digital Output Module:
• 1C31125G01 is used to interface the digital output module to the field through the terminal blocks.
• 1C31125G02 is used to interface the digital output module to the relay modules
when power is supplied locally (from the I/O backplane auxiliary power supply). It can also can be used to interface the digital output module to the field through the terminal blocks.
• 1C31125G03 is used to interface the digital output module to the relay modules when power is supplied remotely (from the relay modules). It can also can be used to interface the digital output module to the field through the terminal blocks.
Caution
When 1C31125G03 is used, the returns for the remote power supply and the local power supply are connected together. Therefore, to avoid problems with differences in earth ground potentials, ensure that the power supply return lines are earth grounded at only ONE point.

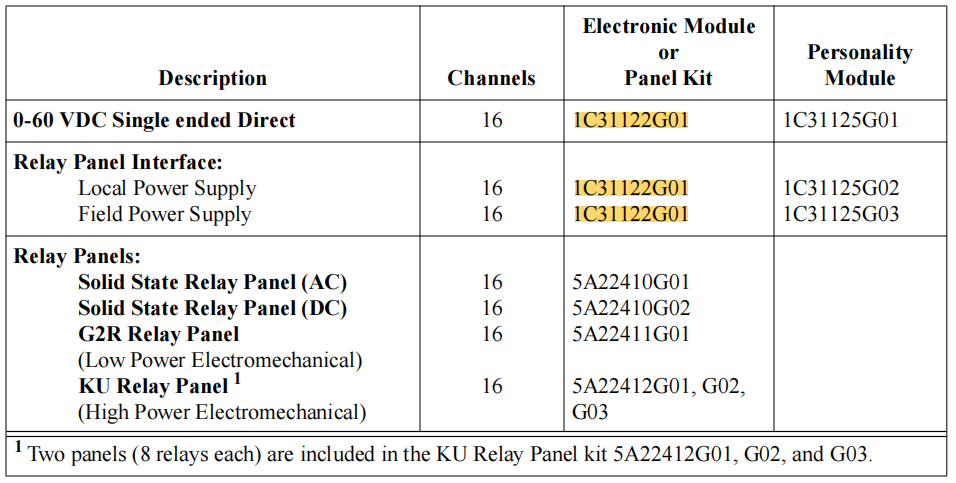

Table 12-1. Digital Output Subsystem
