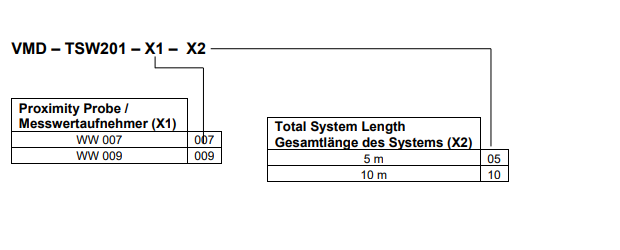

VMD TSW201-007-05 Transmitter
Description
| Manufacture | Others |
| Model | CA901 |
| Ordering information | 144-901-000-282 |
| Catalog | Vibration Monitoring |
| Description | CA901 144-901-000-282 Piezoelectric Accelerometer |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Description
The single-channel TSW201 transmitter is used for vibration measurement (ppm) and non-contacts the shaft vibration using eddy current displacement sensors. It allows measurements according to DIN ISO 10817-1 and calculates the peak-to-peak value.
The TSW201 partially complies with API 610.
Measuring ranges:

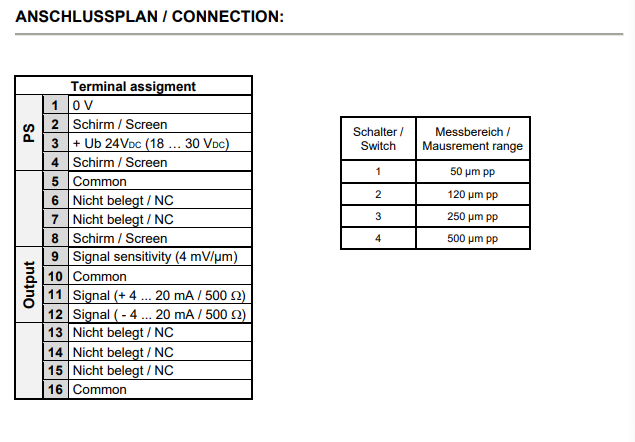

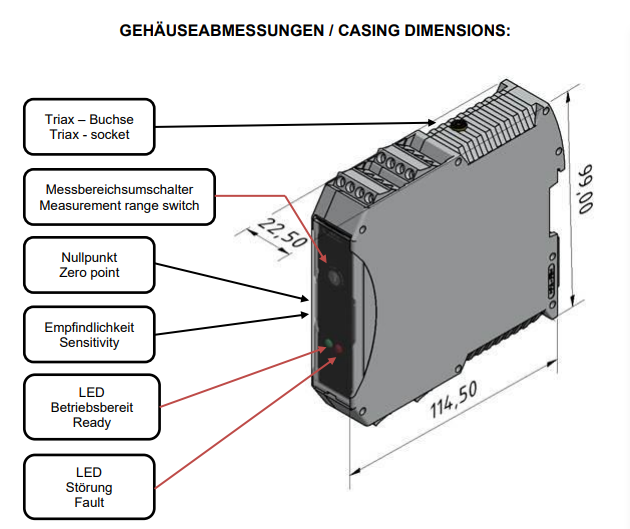

Selectable via a rotary switch on the front panel.
(1) 50 µm pp,
(2) 125 µm pp,
(3) 250 µm pp,
(4) 500 µm pp.
Frequency ranges:
1 … 250 Hz
(optional 5 … 1.5 kHz)
Factory-set
Self-monitoring:
Monitors for an open circuit or short circuit in the sensor or wiring. It also detects when the measurement object is significantly outside the static measuring range.
Fault indication:
Via the red LED on the front panel and as a 2 mA signal from the analog output.
1 analog output (current):
4 to 20 mA ppm, load 500 Ω
For 0 to 100% measuring range
1 analog output (voltage):
Static distance signal with a sensitivity of 4 mV/µm with superimposed vibration (short-circuit-proof and non-interference-free). R load 10 kΩ.
Description
The one-channel vibration transmitter TSW201 measures the shaft vibration with the assistance of the proximity transducer, non-contacting.
It allows measurements according to DIN ISO
10817-1 and forming the peak-to-peak value.
The TSW201 is partially equivalent to the API 610.
Measuring ranges:
Selected over a Switch on the front panel.
(1) 50 µm pp,
(2) 125 µm pp,
(3) 250 µm pp,
(4) 500 µm pp.
Frequency range:
1 … 250 Hz
(optional 5 … 1.5 kHz)
Factory designed
Internal controls:
Controlled is an interruption or a short circuit in the
proximity transducer or in the cable connections.
Furthermore, it will be recognized when the
measuring object is clearly placed out of the
measuring range.
Fault indication:
By the red LED on the front panel and as 2 mA signal
from the analog output.
1 analogue output (current):
Sppm 4 … 20 mA, max. load 500 Ω
For 0 … 100% measuring range
1 analogue output (voltage):
Static distance signal with the sensitivity
of 4mV/µm with superimposed vibration (short circuit
protection and decoupled non-reaction)
R Load 10 kΩ.
