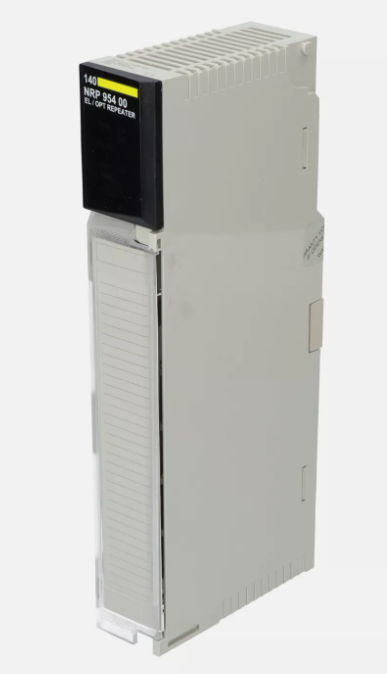

Schneider 140NRP95400 Fibre optic repeater MM/ST RIO S908 2CH
Description
| Manufacture | Schneider |
| Model | 140NRP95400 |
| Ordering information | 140NRP95400 |
| Catalog | Quantum 140 |
| Description | Schneider 140NRP95400 Fibre optic repeater MM/ST RIO S908 2CH |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 4cm*25cm*10cm |
| Weight | 0.554kg |
Details
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Fibre optic repeater |
| Optic fiber type | Multi mode |
| Bus current requirement | 700 mA |
|---|---|
| Power dissipation in W | 5 W |
| Inrush current | 1 A at 5 V DC |
| Number of port | 2 fiber optic, connector type: ST 1, connector type: coaxial connector |
| Local signalling | 1 LED green with RDY marking for module status 1 LED red with ERR marking for internal fault, module failure 1 LED green for coaxial communication status 2 LEDs green for optical communication status 1 LED red with FAULT marking for error 1 LED red for activity detected |
| Wavelength | 820 nm |
| Optic distance between 2 transceivers | 2000 m (50/125 µm), optical power: 3.5 dBm 3000 m (62.5/125 µm), optical power: 3.5 dBm 3000 m (100/140 µm), optical power: 5 dBm |
| Attenuation | -20…-13 dB (50/125 µm) -16…-10 dB (62.5/125 µm) -10.5…-4 dB (100/140 µm) |
| Rise/fall time | 20 ns |
| Receiver sensitivity | - 30 dBm |
| Dynamic range | 20 dB |
| Detected silence | -36 dBm |
| Marking | CE |
| Material | PC (polycarbonate) |
| AWG gauge | AWG 14...AWG 1 |
| Width | 40.34 mm |
| Height | 250 mm |
| Depth | 103.85 mm |
| Net weight | 0.554 kg |
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m |
| Standards | CSA C22.2 No 142 UL 508 FM Class 1 Division 2 |
| Product certifications | TÜV |
