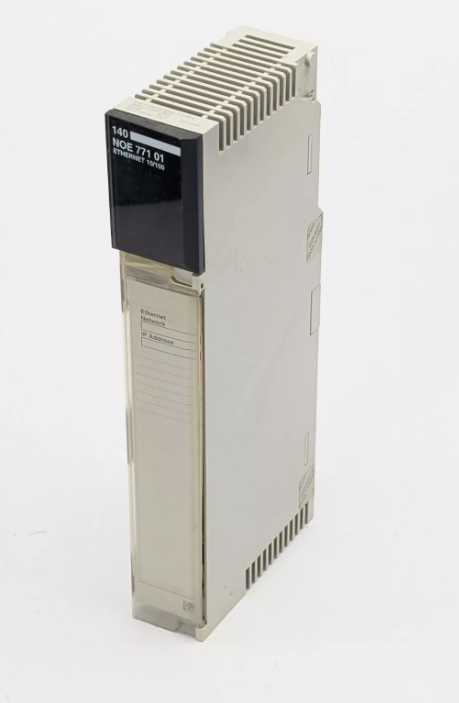

Schneider 140NOE77100 Ethernet network TCP/IP module
Description
| Manufacture | Schneider |
| Model | 140NOE77100 |
| Ordering information | 140NOE77100 |
| Catalog | Quantum 140 |
| Description | Schneider 140NOE77100 Ethernet network TCP/IP module |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31cm |
| Weight | 0.5kg |
Details
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Ethernet network TCP/IP module |
| Concept | Transparent Ready |
| Web server | Class B20 |
| Web services | Rack viewer Diagnostics via predefined web pages Data Editor (via PC terminal) |
| Communication service | Modbus TCP messaging I/O scanning |
| Communication port protocol | Ethernet Modbus TCP/IP |
| Physical interface | MT/RJ - 100BASE-FX fiber optic RJ45 - 10BASE-T/100BASE-TX twisted pair |
| Transmission rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
|---|---|
| Supply | Via the power supply of the rack |
| Marking | CE |
| Local signalling | 1 LED for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) 1 LED for collision detection (Coll) 1 LED for download mode (Kernel) 1 LED for Ethernet module fault (Fault) 1 LED for Ethernet network status (RUN) 1 LED for full-duplex mode (Fduplex) 1 LED for module ready (Ready) 1 LED for network active (Link) 1 LED for rack operational (Active) 1 LED for transmission/reception activity (TxAct/RxAct) |
| Current consumption | 750 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.345 kg |
| IP degree of protection | IP20 |
|---|---|
| Product certifications | cUL UL 508 |
| Standards | FM Class 1 Division 2 CSA C22.2 No 142 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 4500 m |
