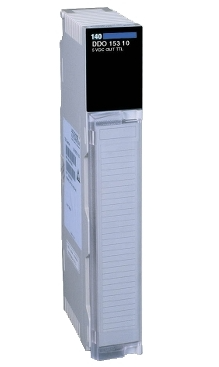

Schneider 140DDO35300 discrete output module Modicon Quantum 32 O solid state
Description
| Manufacture | Schneider |
| Model | 140DDO35300 |
| Ordering information | 140DDO35300 |
| Catalog | Quantum 140 |
| Description | Schneider 140DDO35300 discrete output module Modicon Quantum 32 O solid state |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31cm |
| Weight | 0.5kg |
Details
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Dc discrete output module |
| Discrete output number | 32 |
| Group of channels | 4 groups of 8 |
|---|---|
| Discrete output logic | Positive logic (source) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 24 V DC |
| Output voltage limits | 19.2...30 V |
| Absolute maximum output | 56 V for 1.3 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | 16 A per module 4 A per group |
| Surge current | 5 A for 0.0005 s |
| Response time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| Maximum leakage current | 0.4 mA 30 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz |
| Fault indication | Blown fuse Loss of field power |
| Associated fuse rating | 3 A each point 5 A per group |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute |
| Isolation between group | 500 Vrms DC for 1 minute |
| Protection type | Internal output protection by 5 A fuse per group |
| Power dissipation | 1.75 W + (0.4 V x total module load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 330 mA |
| Module format | Standard |
| Net weight | 0.45 kg |
| Product certifications | GOST BV RMRS ABS DNV GL RINA C-Tick FM Class 1 Division 2 safety certification non interfering |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
