Specification

Network protocol: Modbus Plus

Transmission speed: 1 Mbps

Bus length: up to 4500 feet when using a repeater; Number of nodes supported: 64 nodes;

Input voltage: 24VDC;

Power consumption: 4.5W; 6.5W;

Operating temperature: 0℃ to 60℃;

Storage temperature: -40-85℃;

Humidity: 5% to 95%, non-condensing;

Connection type: RJ45 connector;

Programming software: Mod Soft V2.32 or higher, Concept Version 2.2 or higher;

Communication channel: 1 Profibus port, 1 RS-232 port (DB9 pin);

Bus current: 1.2 A.

Features

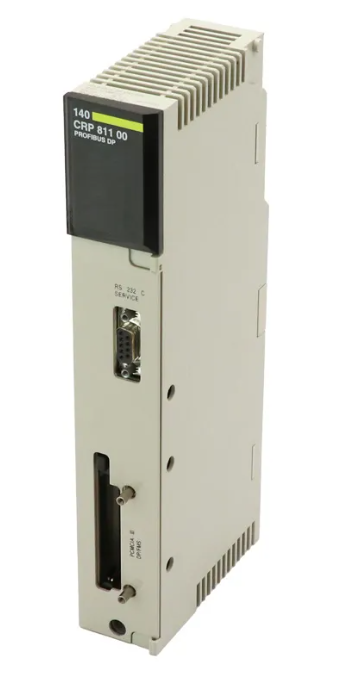

Profibus Communication function: Schneider 140CRP81100, as a Profibus interface module, can provide an efficient means of data communication between master and slave stations. The Profibus link not only connects various devices to the Schneider Quantum series PLC system but also enables centralized control and monitoring of different devices for uniform production process management.

Data transmission way: Schneider 140CRP81100 employs the high-speed, secure optical fiber communication link in data transmission. With its strong interference resistance capability, fast transmission speed, and low signal attenuation advantages, data transmissions really maintain data integrity and accuracy while ensuring the stable system operation.

System integration and expansion convenience: with rich interface type and good compatibility, Schneider140CRP81100 has made system integration workflow during the automation system easy. Schneider 140CRP81100 would work for a newly installed automation system or an upgraded one with great ease.

Application

Automobile manufacturing: The engine assembly production lines of a large automobile manufacturing company employ the Schneider 140CRP81100 interface module. Automated equipment on this production line is numerous and includes robots such as tightening machines, glue coating machines, handling robots, etc. The Schneider140CRP81100 module functions at connecting those devices to the Quantum PLC system using the Profibus network to perform accurate control and monitoring over the whole assembly process.

Power Industry: The basic operating information of each generator of the thermal power plant under Schneider 140CRP81100 module, monitored with the interface system, connects various sensors, actuators, and protective devices of its generator set to the PLC system for real-time monitoring and control of the generator set. Through the Profibus communication network, operators can monitor and control the operating condition of the generator set in the central control room, such that various abnormal situations can be detected and handled without losing time. In the failure of the main controller, the hot backup module quickly transferred operations of all generation sets, maintaining their safety and stable operation and thus preventing significant economic losses and power grid swings that would have been incurred due to the shutdown.

Chemical production: Schneider 140CRP81100 interface module is used in the control system of large reactors in chemical enterprises. It connects the temperature, pressure, liquid level and other sensors of the reactor to the PLC system, and transmits the control signal to the relevant valves, pumps and other actuators, realizing precise control of the reaction process. Allowing for long-term operation, the reliability and stability of the Schneider 140CRP81100 systems have been thoroughly established. In fact, to date, there have been no incidents of production accidents arising from communication failures or module malfunctions to speak of, cementing the notion that it protects the continued and steady processes of chemical production while neatly raising both product quality and production efficiency.
