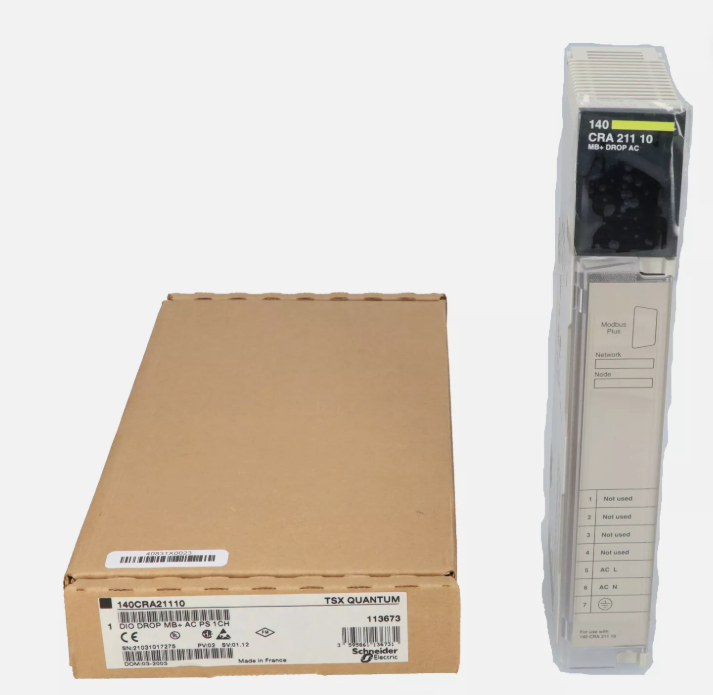

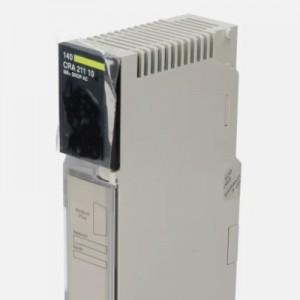

Schneider 140CRA21110 DIO drop interface Modicon Quantum
Description
| Manufacture | Schneider |
| Model | 140CRA21110 |
| Ordering information | 140CRA21110 |
| Catalog | Quantum 140 |
| Description | Schneider 140CRA21110 DIO drop interface Modicon Quantum - 115/230 V AC - 1 single port |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31。5cm |
| Weight | 0.689kg |
Details
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | DIO drop interface |
| Number of port | 1 single |
|---|---|
| [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85…276 V |
| Supply frequency | 47...63 Hz |
| Maximum supply current | 0.2 A 115 V 0.4 A 230 V |
| Inrush current | 10 A 115 V 20 A 230 V |
| Rated power in VA | 50 VA |
| Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V |
| Nominal output current | 3 A |
| Minimum load current | 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 3 positions 2 positions 6 positions 16 positions 10 positions 4 positions |
| Diagnostics startup | RAM address RAM Checksum |
| Diagnostics run time | RAM address RAM Checksum |
| Power dissipation in W | 11 W |
| Connections - terminals | Terminal block, 7 poles |
| Module format | Standard |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Standards | UL 508 |
| Product certifications | CSA Class 1 Division 2 UL DNV C-Tick GOST |
