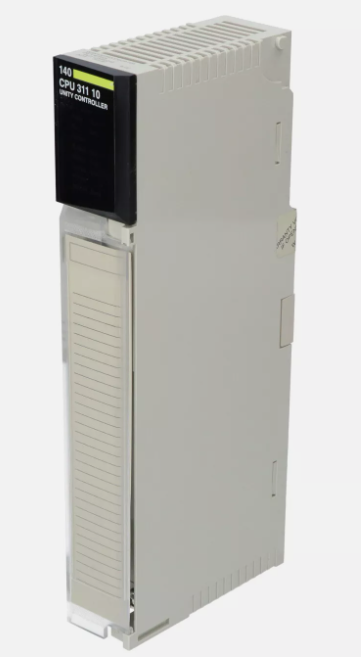

Schneider 140CPU31110 Unity processor, Modicon Quantum automation platform, Modbus Plus, 548kB RAM, 66MHz
Description
| Manufacture | Schneider |
| Model | 140CPU31110 |
| Ordering information | 140CPU31110 |
| Catalog | Quantum 140 |
| Description | Schneider 140CPU31110 Unity processor, Modicon Quantum automation platform, Modbus Plus, 548kB RAM, 66MHz |
| Origin | Franch(FR) |
| HS Code | 3595861133822 |
| Dimension | 5cm*16.5cm*31cm |
| Weight | 0.5kg |
Details
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Unity processor |
| Clock frequency | 66 MHz |
|---|---|
| Number of slots | 16 4 10 2 6 |
| Number of racks | 2 - local |
| Number of distributed I/O station | 63 1 3 Modbus Plus |
| Number of remote I/O station | 31 - 2 S908 remote I/O 0 - 0 ethernet remote I/O |
| Discrete I/O number | Unlimited (27 slots max) - local 31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus |
| Analogue I/O number | Unlimited (27 slots max) - local 500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O |
| Application specific I/O | High-speed interrupt inputs Counter Accurate time stamping Serial link |
| Number of optional modules | 2 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB 2 AS-Interface - distributed 2 Ethernet TCP/IP - local 2 Modbus Plus - local 2 Modbus RS232/485 Modbus/ASCII) 2 Profibus DP - local 4 AS-Interface - remote |
| Integrated connection type | 1 Modbus Plus 2 Modbus |
| Checks | Process control |
| Memory description | Internal RAM 548 kB |
| Switch Function | Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off |
| Application structure | 1 cyclic/periodic master task - 1 periodic fast task - 16 timer interrupt tasks - 64 I/O interrupt tasks - 64 interrupt tasks - No auxiliary task - |
| Execution time per instruction | 0.1...0.27 µs floating points 0.1...0.27 µs on fixed-point arithmetic 0.12...0.585 µs Boolean 0.12...0.585 µs on word |
| Number of instructions per ms | 1.86 Kinst/ms 100 % Boolean 2.49 Kinst/ms 65 % Boolean and 35 % numerical |
| System overhead | 0.2 ms fast task 1 ms master task |
| Bus current requirement | 1800 mA |
| Local signalling | for communications are active on the Modbus Plus port (Modbus Plus) 1 LED (green) for communications are active on the Modbus port (Modbus) 1 LED (green) for CPU has been started and is solving logic (RUN) 1 LED (green) for CPU has passed the power-up diagnostic tests (READY) 1 LED (green) for write-protected memory (memory port) 1 LED (orange) for battery needs replacing or is not present (BAT LOW) 1 LED (red) for communications error on the Modbus Plus port (ERROR A) 1 LED (red) |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network 2 female connectors SUB-D 9 for connecting to the Modbus bus |
| Product Certifications | CSA CE UL |
|---|---|
| Standards | HazLoc |
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595862067300 |
| Returnability | No |
| Country of origin | FR |
