RLC16 200-570-000-012 Relay Card
Description
| Manufacture | Others |
| Model | RLC16 |
| Ordering information | 200-570-000-012 |
| Catalog | Vibration Monitoring |
| Description | RLC16 200-570-000-012 Relay Card |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The RLC16 relay card is designed for use in the machinery protection systems and condition and performance monitoring systems. It is an optional card, for use when the four relays on the IOC4T input /output card are insufficient for the application and additional relays are required. The RLC16 is installed in the rear of a rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector. The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the rack. The relays are controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow the selection of relay normally energized (NE) or normally de-energized (NDE). For further information on the use of RLC16 cards in general, refer to the machinery protection system (MPS) hardware manual and the MPSx software manuals.

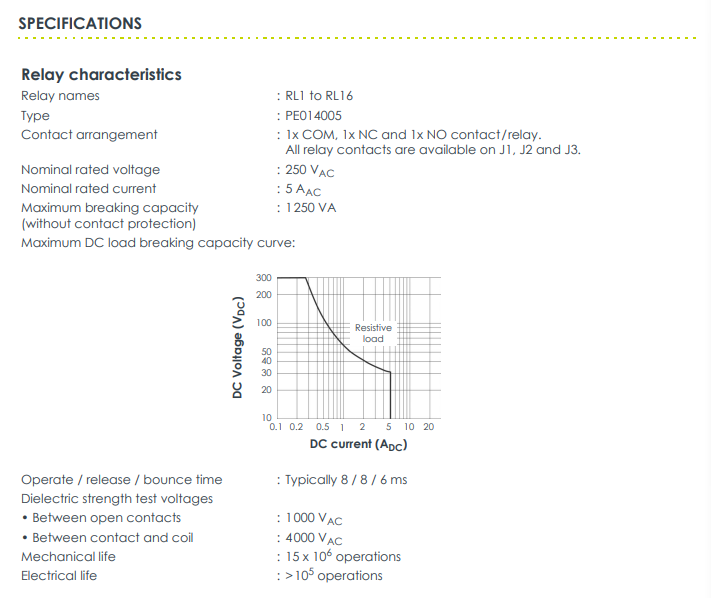

Environmental
Temperature
• Operating : −25 to 65°C (−13 to 149°F)
• Storage : −40 to 85°C (−40 to 185°F) Humidity
• Operating : 0 to 90% non-condensing
• Storage : 0 to 95% non-condensing
Approvals
Conformity : CE marking, European Union (EU) declaration of conformity. EAC marking, Eurasian Customs Union (EACU) certificate/ declaration of conformity.
Electromagnetic compatibility : EN 61000-6-2. EN 61000-6-4. EN 61326-3-1. TR CU 020/2011.
Electrical safety : EN 61010-1. TR CU 004/2011.
Vibration : IEC 60255-21-1 (Class 2)
Insulation coordination for measuring relays and protection equipment : Separate circuits according to IEC 60255-5 for the “separate circuits” version of the RLC16
Environmental management : RoHS compliant
Russian federal agency for technical regulation and metrology (Rosstandart) : Pattern approval certificate CH.C.28.004.A N° 60224
Power supply to card (input)
Power source : VM600 rack power supply
Supply voltage : +5 VDC
Consumption : 40 mA × 16 (per relay)
Connectors J1 : 16-contact screw-terminal connector.
Outputs (contacts) for relays RL1 to RL6. J2 : 16-contact screw-terminal connector.
Outputs (contacts) for relays RL6 to RL11. J3 : 16-contact screw-terminal connector.
Outputs (contacts) for relays RL11 to RL16.
Physical Height : 6U (262 mm, 10.3 in)
Width : 20 mm (0.8 in)
Depth : 125 mm (4.9 in)
Weight : 0.30 kg (0.66 lb) approx
