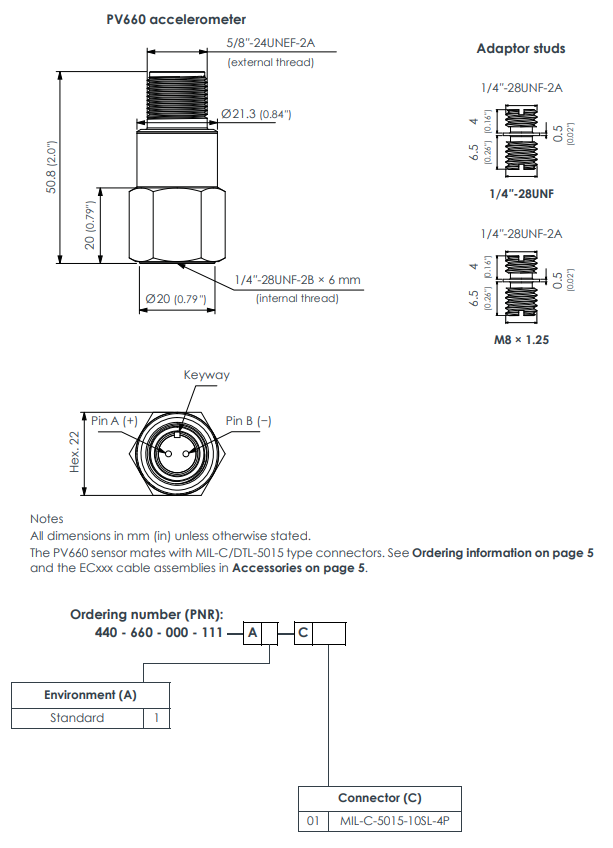

The PV660 piezoelectric velocity sensor  is a generalpurpose vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments. The PV660 is an industry standard IEPE (integrated electronics piezo electric) velocity sensor that requires a constant current power supply and provides a dynamic vibration output signal (AC voltage) on a bias level (DC voltage). It is available with a sensitivity of 4 mV/mm/s. The PV660 is available as a sensor only (with a top connector). This allows a range of cable assemblies to be used to connect the sensor to the monitoring system, depending on the application/environment. The PV660 is available in standard versions for use in standard (non-hazardous) areas only.

Operating Sensitivity : 4 mV/mm/s (100 mV/ips) ±5%

Dynamic range : 1250 mm/s peak (50 ips peak)

Transverse sensitivity : <5%

Linearity : ±1% maximum

Frequency response : 2.5 to 3500 Hz (±10%). 1.9 to 7000 Hz (±3 dB).

Resonant frequency : 16 kHz nominal

Electrical

Power supply voltage (for current source) : 22 to 28 VDC

Power supply current : 2 to 10 mA Bias voltage (4 mA supply) : 10 VDC nominal

Output impedance : 200 Ω nominal

Residual electrical noise : 2.54 μm/s at 2.5 Hz, 0.254 μm/s at 10 Hz (100 μips at 2.5 Hz, 10 μips at 10 Hz)

Grounding : Isolated from case (machine ground), internally shielded

Internal isolation (case to shield) : 100 MΩ minimum

Reversed polarity : Protected

Overvoltage : Protected

Environmental

Temperature range : −55 to 120°C (−67 to 248°F)

Humidity : IP68 (according to IEC 60529)

Shock vibration limit : 2500 g peak

Continuous vibration limit : 500 g peak

Approvals

Conformity : European Union (EU) declaration of conformity (CE marking)

Electromagnetic compatibility (EMC) : EMC compliant (2014/30/EU). EN 61326-1.

Environmental management : RoHS compliant (2011/65/EU)
