I/O architectures

The Trusted System has comprehensive internal diagnostics that reveal both covert and overt failures. The hardware implementation of many of the fault tolerance and fault detection mechanisms provides for rapid fault detection for most system elements. Self-test facilities used to diagnose faults within the remainder of the system are defined to provide optimum safety availability. These self-test facilities may require short periods of offline operation to introduce conditions, i.e. alarm or fault test conditions, which effectively result in the point being offline within that redundant channel. Within TMR configurations, this period of offline operation only affects the system’s ability to respond under multiple fault conditions.

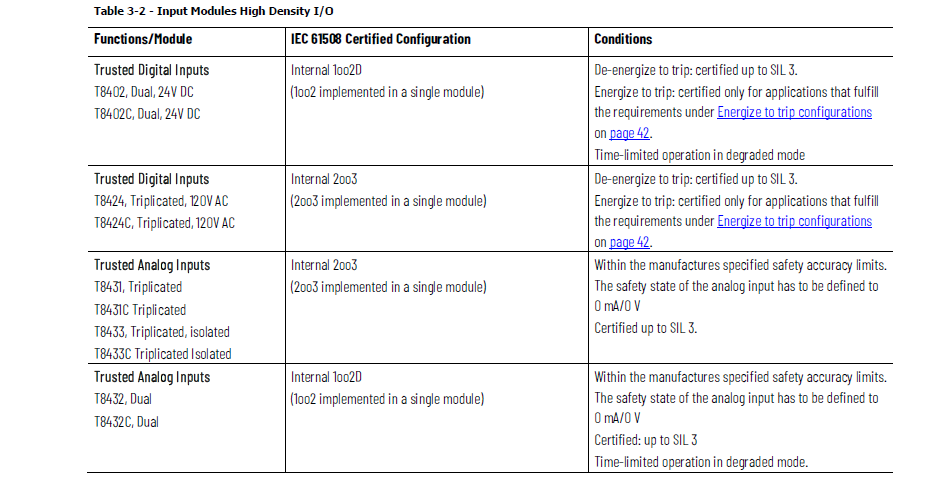

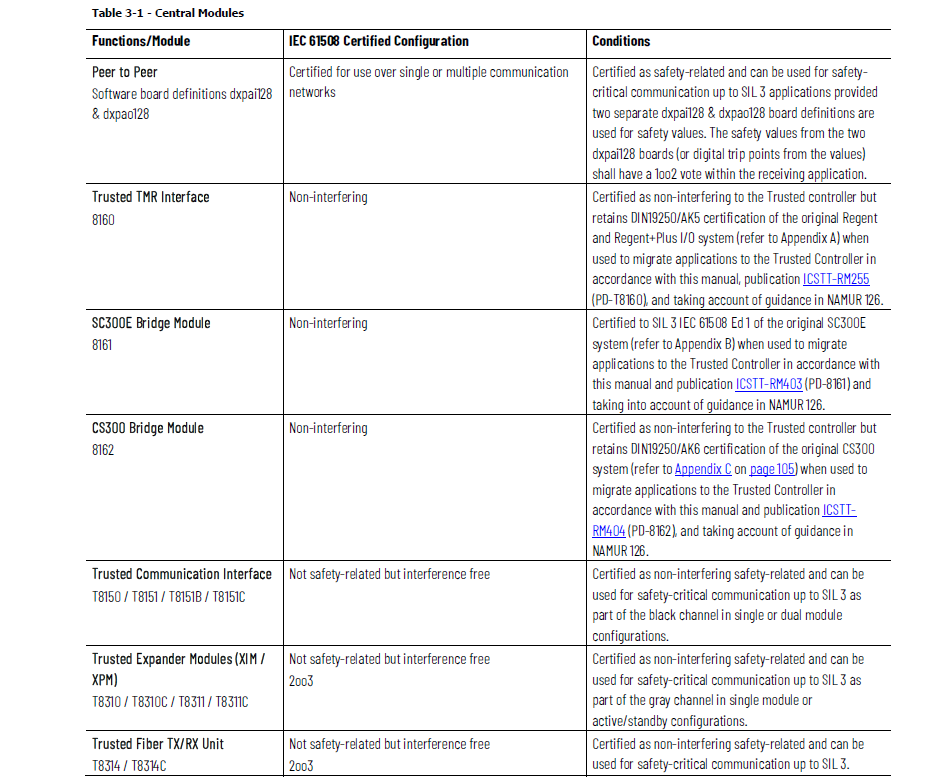

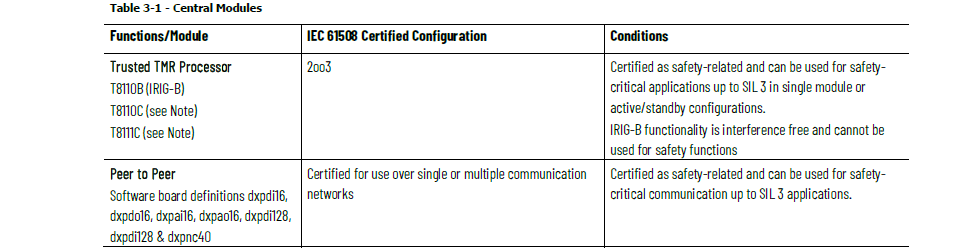

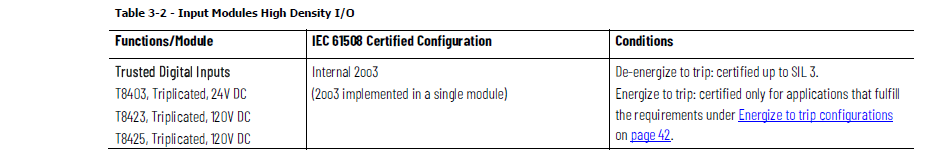

The Trusted TMR Processors, Interfaces, Expander Interfaces, and Expander Processors are all naturally redundant and have been designed to withstand multiple faults and support a fixed online repair configuration in adjacent slots and therefore require little further consideration. The input and output modules support a number of architecture options, the effects of the chosen architecture should be evaluated against the system and application-specific requirements.

FTA modules and other ancillaries are suitable for use as part of Trusted safety system even though they may not explicitly include a TÜV mark.
