HIMA F8621A Coprocessor module
Description
| Manufacture | HIMA |
| Model | F8621A |
| Ordering information | F8621A |
| Catalog | HIQUAD |
| Description | HIMA F8621A Coprocessor module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
F 8621A: Coprocessor module
use in in PES H51q

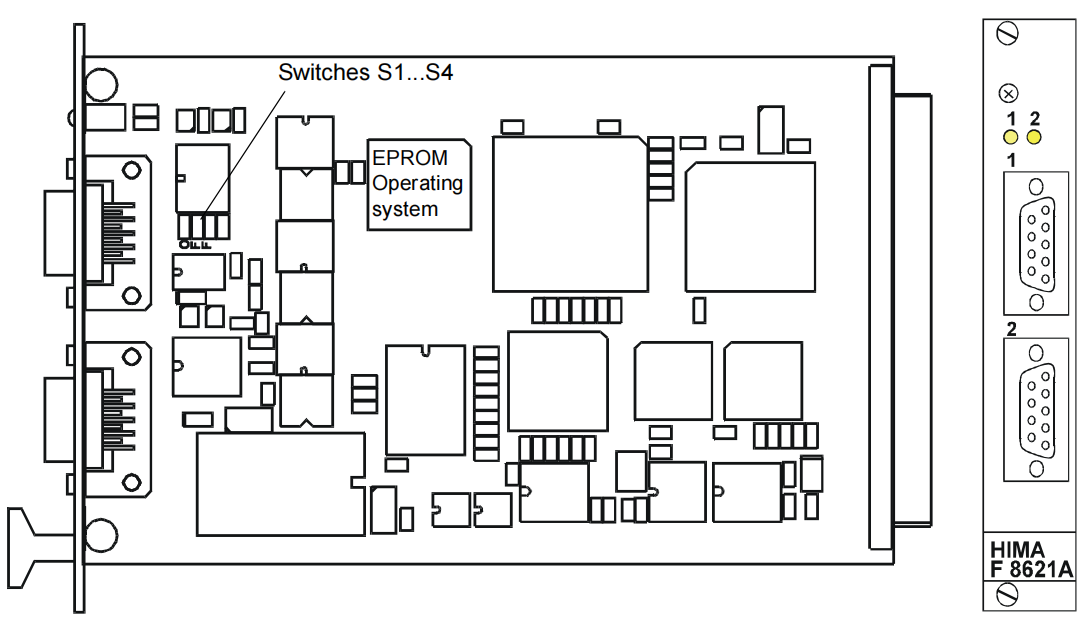

The coprocessor module has its own microprocessor HD 64180 and operates with a clock frequency of 10 MHz. It contains mainly the following functions:
– 384 kbyte static memory, CMOS-RAM and EPROM on 2 ICs. Battery buffer of the RAMs on power supply monitoring module F 7131.
– 2 interfaces RS 485 (half-duplex) with galvanic isolation and own communication processor. Transmission rates (set by software): 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600bps or takeover of the values which are set on the CU via DIP switch.
– Dual Port RAM for fast memory access to the second central module.
Space requirement 4 TE
Operating data 5 V DC: 360 mA

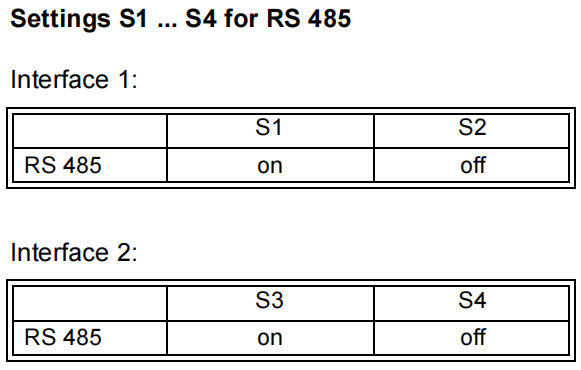

Other settings as given in the table are not admissible.
Pin allocation of the interface channels RS 485
Pin RS 485 Signal Meaning
1 - - not used
2 - RP 5 V, decoupled by diodes
3 A/A RxD/TxD-A Receive/Transmit-Data-A
4 - CNTR-A Control signal A
5 C/C DGND Data Ground
6 - VP 5 V, positive pole of power supply
7 - - not used
8 B/B RxD/TxD-B Receive/Transmit-Data-B
9 - CNTR-B Control signal B
