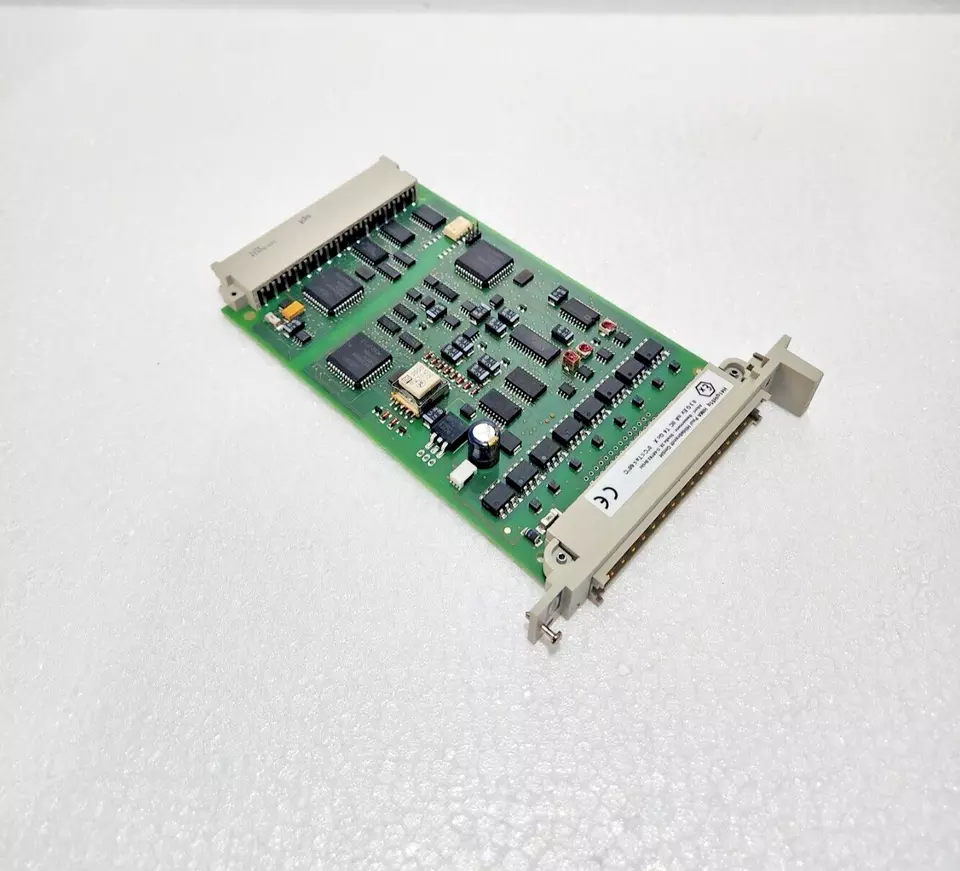

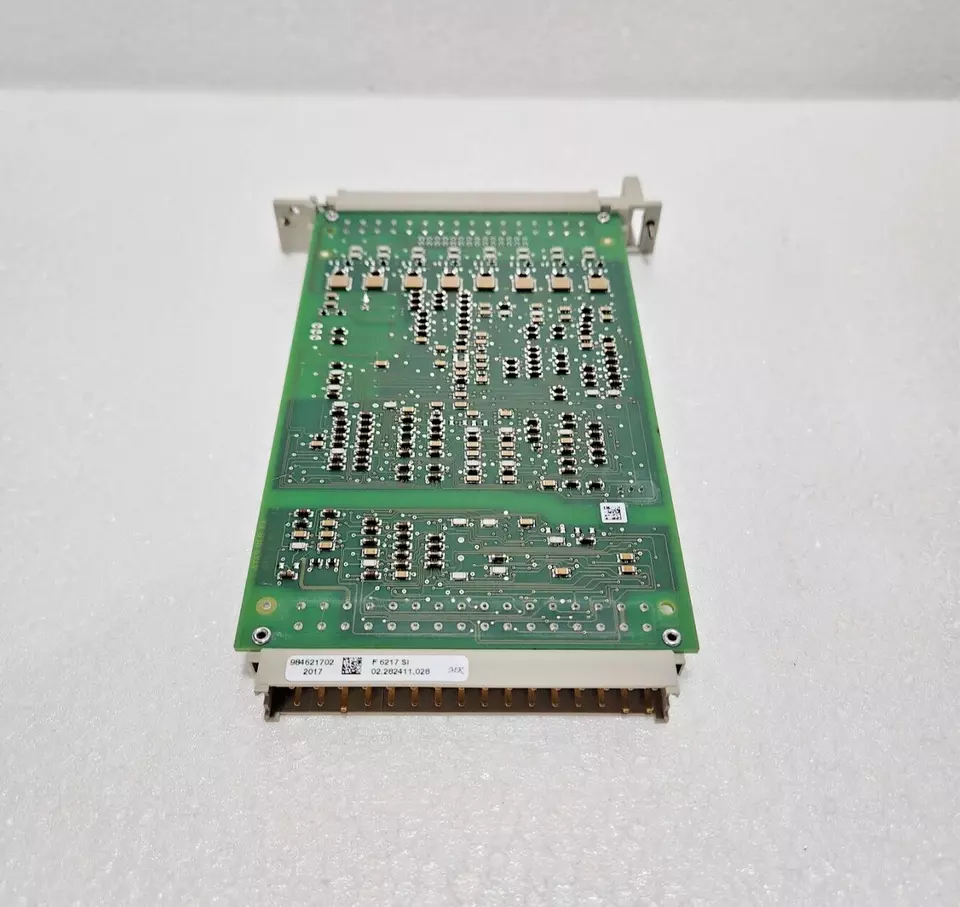

HIMA F6217 8 fold analog input module
Description
| Manufacture | HIMA |
| Model | F6217 |
| Ordering information | F6217 |
| Catalog | HIQUAD |
| Description | 8 fold analog input module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
for current inputs 0/4...20 mA, voltage inputs 0...5/10 V,
with safety isolation
resolution 12 bits
tested according to AK6/SIL3
Input voltage 0...5.5 V
max. input voltage 7.5 V
Input current 0...22 mA (via shunt)
max. input current 30 mA
R*: Shunt with 250 Ohm; 0.05 %; 0.25 W;
current input T<10 ppm/K; part-no: 00 0710251
Resolution 12 bit, 0 mV = 0
5.5 V = 4095
Measurand up date 50 ms
Safety time < 450 ms
Input resistance 100 kOhm
Time const. inp. filter appr. 10 ms
Basic error
0.1 % at 25 °C
Operating error 0.3 % at 0...+60 °C
Error limit related
on safety 1 %
Electric strength 200 V against GND
Space requirement 4 TE
Operating data 5 V DC: 80 mA, 24 V DC: 50 mA
