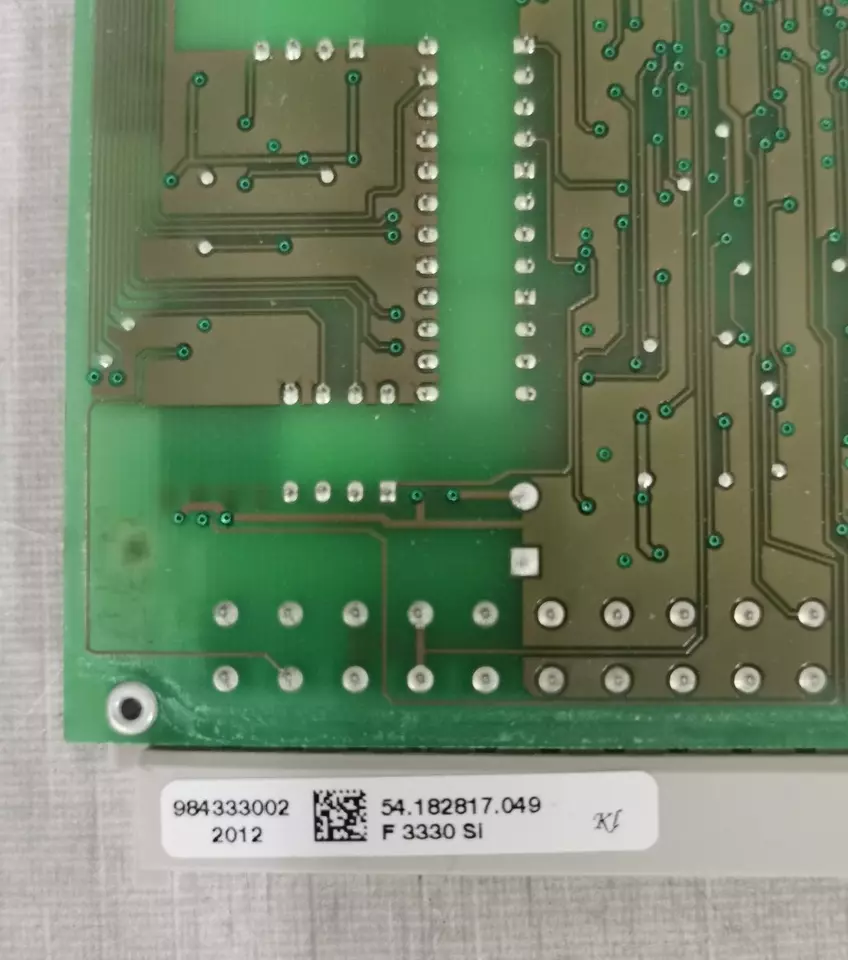

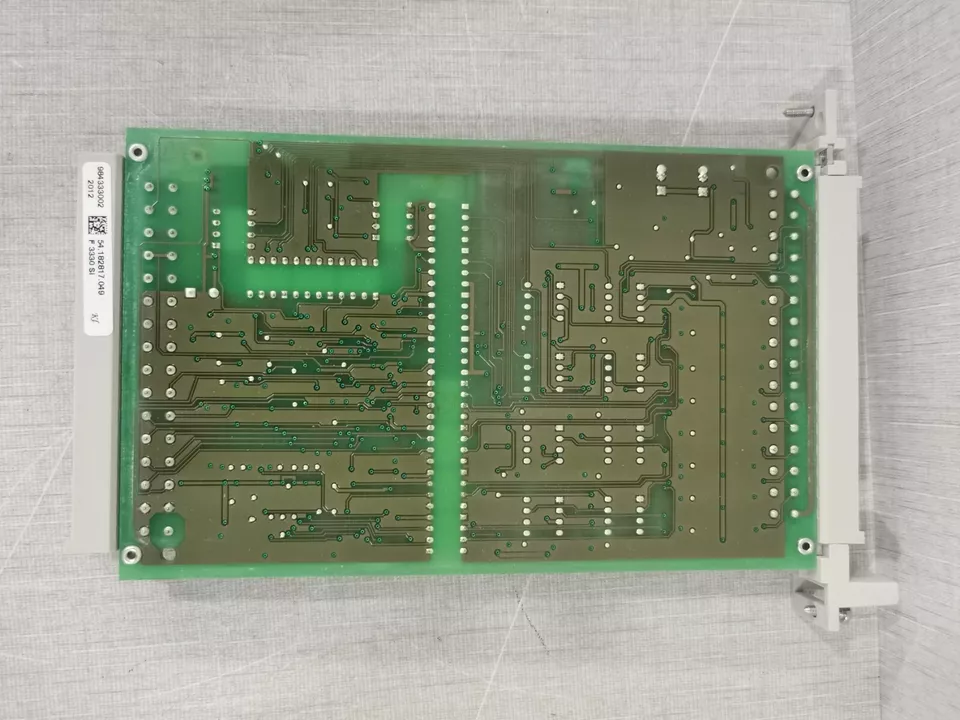

HIMA F3330 8 fold output module
Description
| Manufacture | HIMA |
| Model | F3330 |
| Ordering information | F3330 |
| Catalog | HIQUAD |
| Description | 8 fold output module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
resistive load or inductive load up to 500 mA (12 W),
lamp connection up to 4 W,
with integrated safety shutdown, with safe isolation,
no output signal with break of the L- supply
requirement class AK 1 ... 6
The module is automatically tested during operation. The main test routines are:
– Reading back of the output signals. The operating point of the 0 signalread back is ≤ 6.5 V. Up to this value the level of the 0 signal may arise
in case of a fault and this will not be detected
– Switching capability of test signal and cross-talking (walking-bit test).
Outputs 500 mA, k short circuit proof
Internal voltage drop max. 2 V at 500 mA load
Admissible line resistance (in + out) max. 11 Ohm
Undervoltage tripping at ≤ 16 V
Operating point for
short circuit current 0.75 ... 1.5 A
Outp. leakage current max. 350 µA
Output voltage if output is reset max. 1,5 V
Duration of the test signal max. 200 µs
Space requirement 4 TE
Operating data 5 V DC: 110 mA
24 V DC: 180 mA in add. load
