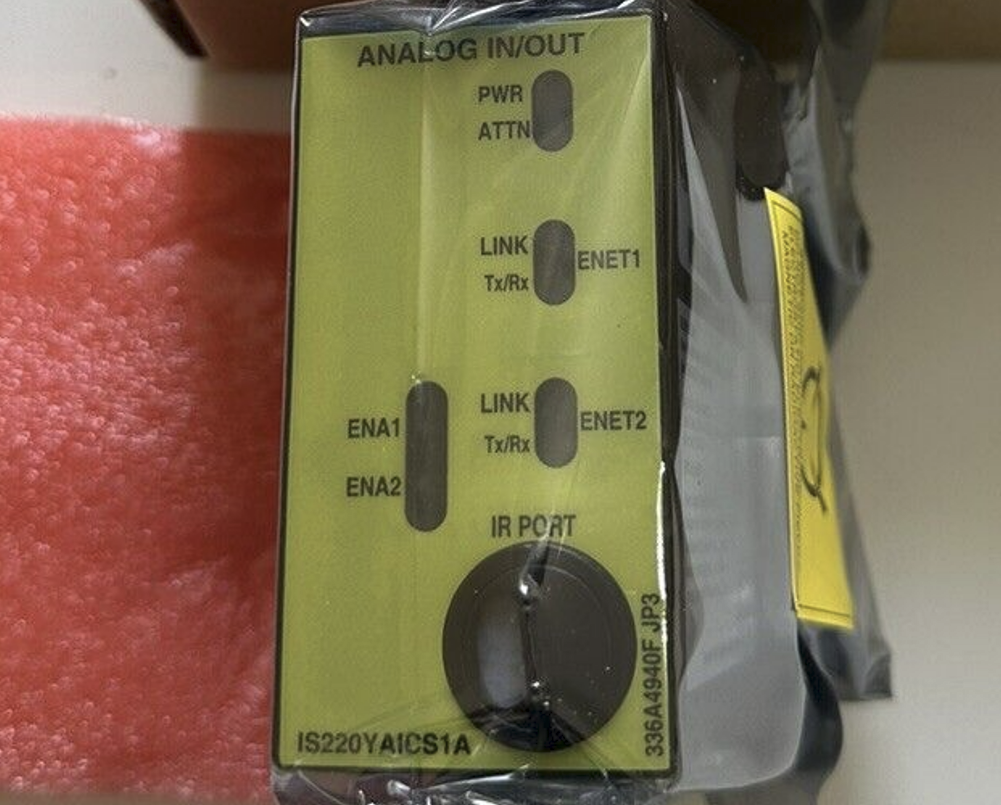

GE IS220YAICS1A INPUT/OUTPUT PACK ANALOG SAFETY INTEGRITY
Description
| Manufacture | GE |
| Model | IS220YAICS1A |
| Ordering information | IS220YAICS1A |
| Catalog | MARK VIe |
| Description | GE IS220YAICS1A INPUT/OUTPUT PACK ANALOG SAFETY INTEGRITY |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
3.1 PAIC and YAIC Analog I/O Modules The following I/O pack and terminal board combinations are approved for use in hazardous locations:
• Mark VIe Analog I/O pack IS220PAICH1A with terminal boards (accessories) IS200STAIH1A, IS200STAIH2A, or IS200TBAIH1C
• Mark VIe Analog I/O pack IS220PAICH1B with terminal boards (accessories) IS200STAIH1A, IS200STAIH2A, or IS200TBAIH1C

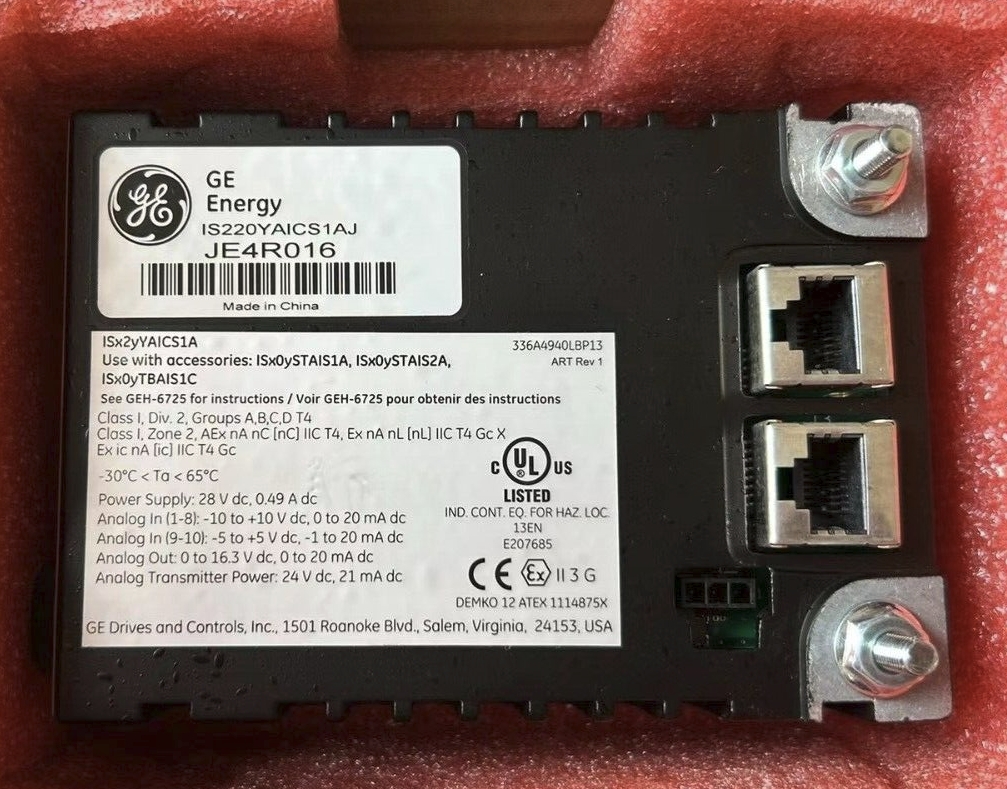

• Mark VIeS Safety Analog I/O pack IS220YAICS1A with terminal boards (accessories) IS200STAIS1A, IS400STAIS1A, IS200STAIS2A, IS400STAIS2A, IS200TBAIS1C, or IS400TBAIS1C • Mark VIeS Safety Analog I/O pack ISx2yYAICS1B (where x = 2 or 4 and y = 0 or 1) with terminal boards (accessories) ISx0ySTAIS1A, ISx0ySTAIS2A, or ISx0yTBAIS1C 3.1.1 Electrical Ratings Item Min Nominal Max Units Power Supply Voltage PAICH1B / YAICS1B: 22.5 PAICH1A / YAICS1A: 27.4 PAICH1B / YAICS1B: 24.0/28.0 PAICH1A / YAICS1A: 28.0 28.6 V dc Current — — 0.49 A dc Analog Inputs (1-8) Voltage -10 — 10 V dc Current 0 — 20 mA dc Analog Inputs (9-10) Current -5 — 5 V dc Current -1 — 20 mA dc Analog Outputs Voltage 0 — 16.3 V dc Current 0 — 20 mA dc Analog Transmitter Power Voltage 22.8 24.0 25.2 V dc Current — — 21 mA dc
