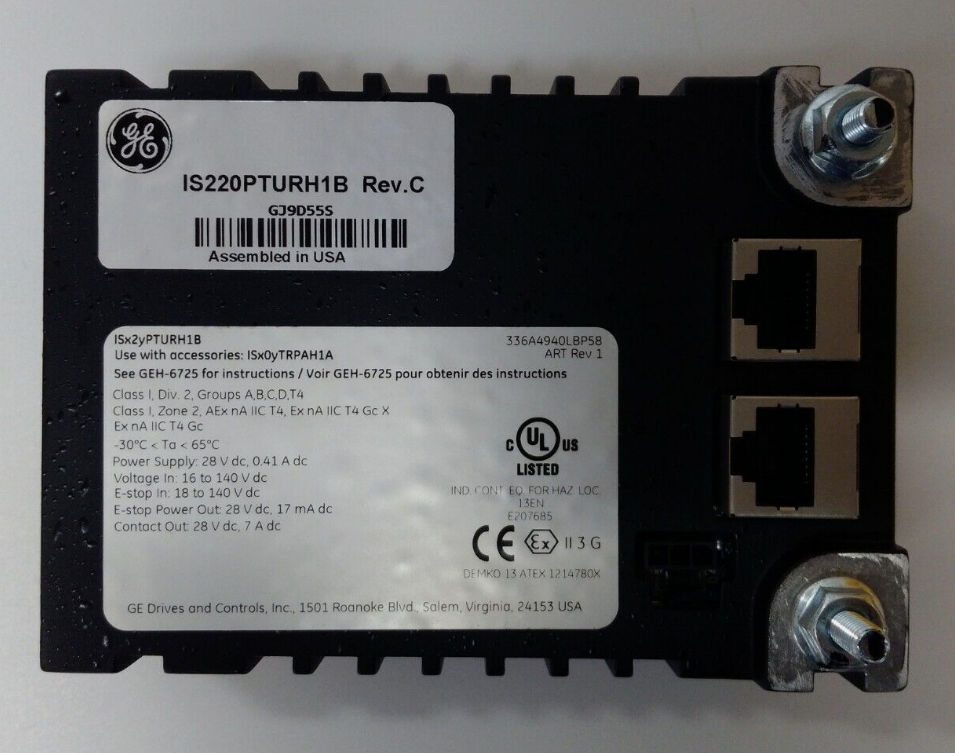

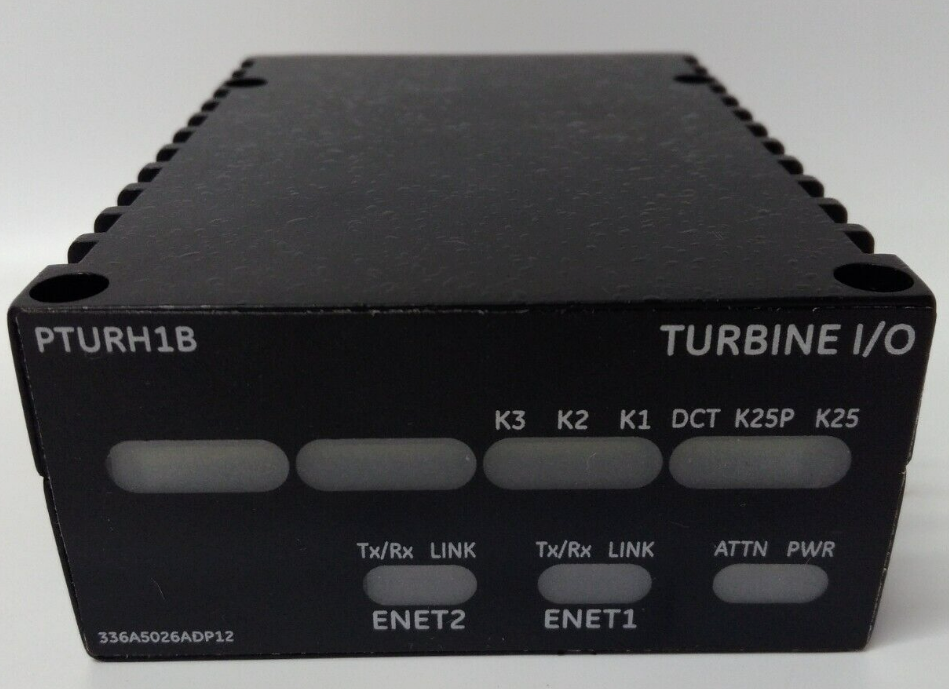

GE IS220PTURH1B Turbine Specific Primary Trip Module
Description
| Manufacture | GE |
| Model | IS220PTURH1B |
| Ordering information | IS220PTURH1B |
| Catalog | MARK VIe |
| Description | GE IS220PTURH1B Turbine Specific Primary Trip Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
3.18 PTUR and YTUR Turbine Specific Primary Trip Modules The following hardware combinations are approved for use in hazardous locations:
• Mark VIe Turbine Specific Primary Trip I/O pack IS220PTURH1A or IS220PTURH1B with terminal board (accessory) IS200TRPAH1A
• Mark VIeS Turbine Specific Primary Trip I/O pack IS220YTURS1A or IS220YTURS1B‡ with terminal board (accessory) IS200TRPAS1A Note ‡ Contact GE for hardware availability. 3.18.1 Electrical Characteristics Item Min Nominal Max Units Power Supply Voltage 27.4 28.0 28.6 V dc Current — — 0.41 A dc Voltage Detection Inputs (TRPA) Voltage 16 — 140 V dc E-stop Input (TRPA) Voltage 18 — 140 V dc Speed Inputs (TRPA) Voltage -15 — 15 V dc E-stop Power Output Voltage (O.C.) — 28 — V dc Current (S.C.) — 17 — mA dc Contact Out (TRPA) Voltage — 24 28 V dc Current — — 7 A dc
