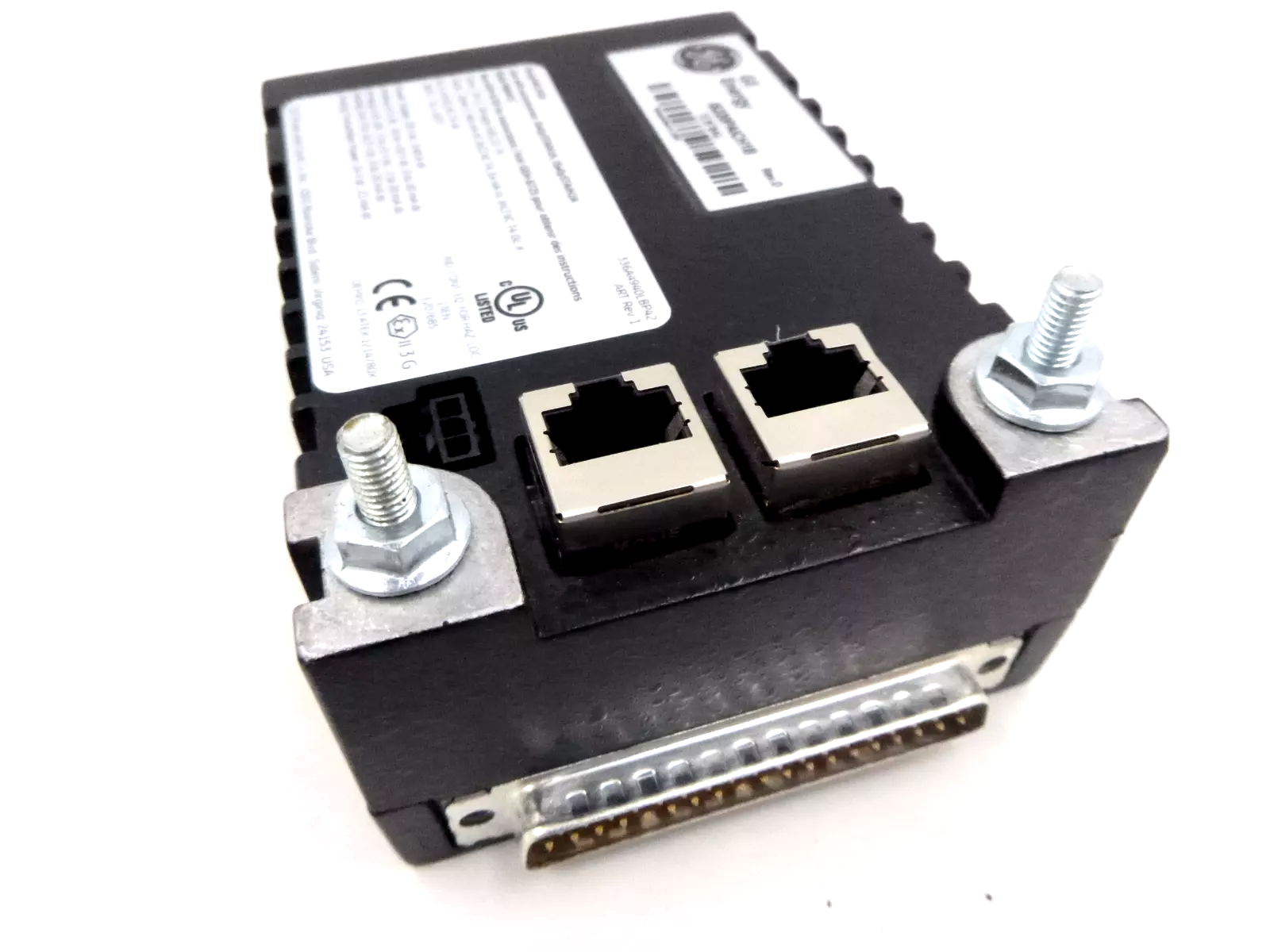

GE IS220PSCHH1A Specialized Serial Communication Module
Description
| Manufacture | GE |
| Model | IS220PSCHH1A |
| Ordering information | IS220PSCHH1A |
| Catalog | Mark Vie |
| Description | GE IS220PSCHH1A Specialized Serial Communication Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS220PSCAH1A is an I/O module for serial Modbus communication, designed for GE (General Electric) Mark VIeS control system.
The module provides an interface between two input and output Ethernet networks and serial communication boards, enabling the system to exchange data with external devices through serial communication.
IS220PSCAH1A is equipped with six independently configurable serial transceiver channels, which are compatible with multiple serial communication standards, such as RS485 half-duplex, RS232 and RS422.
In terms of serial communication, the IS220PSCAH1A module supports multiple communication protocols and standards:
RS-232: A widely used serial communication standard that defines the voltage levels and signal distribution required for communication between devices, usually used for short-distance communication.
RS-485: Suitable for long-distance communication and multi-node networks, RS-485 allows multiple devices to communicate through a pair of wires, so it is widely used in industrial and automation systems.
UART (Universal Asynchronous Receiver Transmitter): A common hardware module responsible for handling the process of asynchronous serial communication, including data formatting and transmission control, widely used in microcontroller and peripheral communication.
SPI (Serial Peripheral Interface): A synchronous serial communication protocol, usually used for communication between microcontrollers and peripheral devices, such as sensors, displays, and memory.
I2C (Inter-Integrated Circuit Communication): Another synchronous serial communication protocol, suitable for connecting multiple devices through two signal lines to achieve communication between devices.
The design of the IS220PSCAH1A module enables it to flexibly implement serial communication in industrial control systems, suitable for various devices and application scenarios, and supports different communication requirements.
Through these serial communication standards, the system can exchange data with external devices stably and reliably, meeting the high requirements for communication stability and real-time performance in industrial automation.
