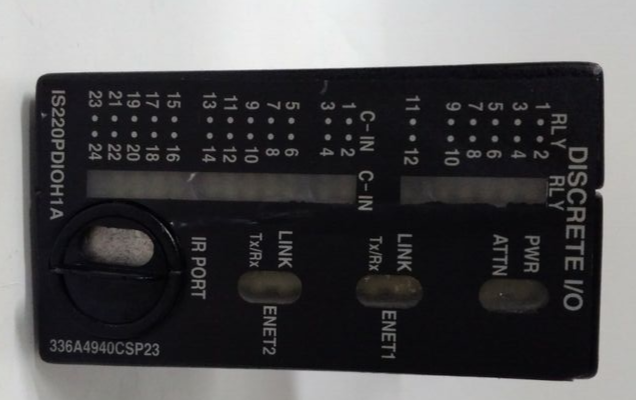

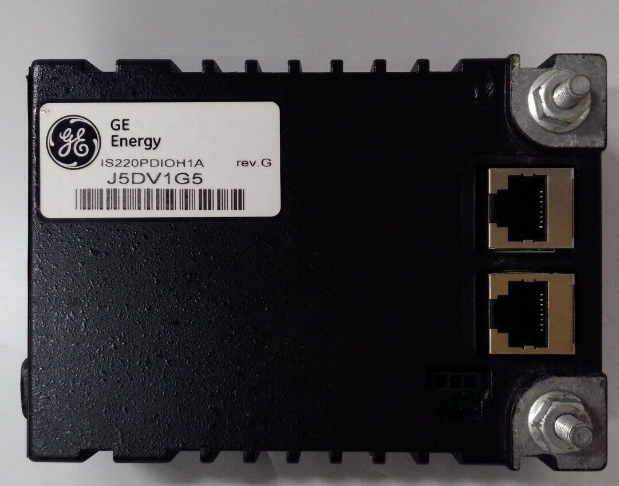

GE IS220PDIOH1A PDIO Discrete Input/Output Module
Description
| Manufacture | GE |
| Model | IS220PDIOH1A |
| Ordering information | IS220PDIOH1A |
| Catalog | Mark Vie |
| Description | GE IS220PDIOH1A PDIO Discrete Input/Output Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
PDIODiscreteInput/OutputModule
ThefollowingI/Opackandterminalboardcombinationsareapprovedforuseinhazardouslocations:
• DiscreteI/OpackIS220PDIOH1A
withterminalboards(accessories)IS200TDBSH2AorIS200TDBTH2A
• DiscreteI/OpackIS220PDIOH1B
withterminalboards(accessories)ISx0yTDBSH2A,ISx0yTDBSH8A,ISx0yTDBTH2A, orISx0yTDBTH8A
3.8.1 ElectricalRatings
PDIOH1A
Item Min Nominal Max Units
PowerSupply
Voltage 27.4 28.0 28.6 Vdc
Current — — 0.81 Adc
ContactInputs
Voltage 0 — 32 Vdc
ContactOutputs
Voltage — — 32.0 Vdc
Current — — 3.15 Adc
ContactWettingOutputs
Voltage — — 32 Vdc
Current — — 110 mAdc
PDIOH1B
Item Min Nominal Max Units
PowerSupply
Voltage 27.4 28.0 28.6 Vdc
Current — — 0.81 Adc
ContactInputs
Voltage 0 — 32 Vdc
TDBSH2A,TDBTH2AContactWettingOutputs
Voltage 16 — 32 Vdc
Current — — 110 mAdc
TDBSH8A,TDBTH8AContactWettingOutputs(1-21)
Voltage — — 31 Vdc
Current — — 10 mAdc
TDBSH8A,TDBTH8AContactWettingOutputs(22-24)
Voltage — — 31 Vdc
Current — — 41 mAdc
ContactOutputs
Voltage — — 32.0 Vdc
Current — — 3.15 Adc
