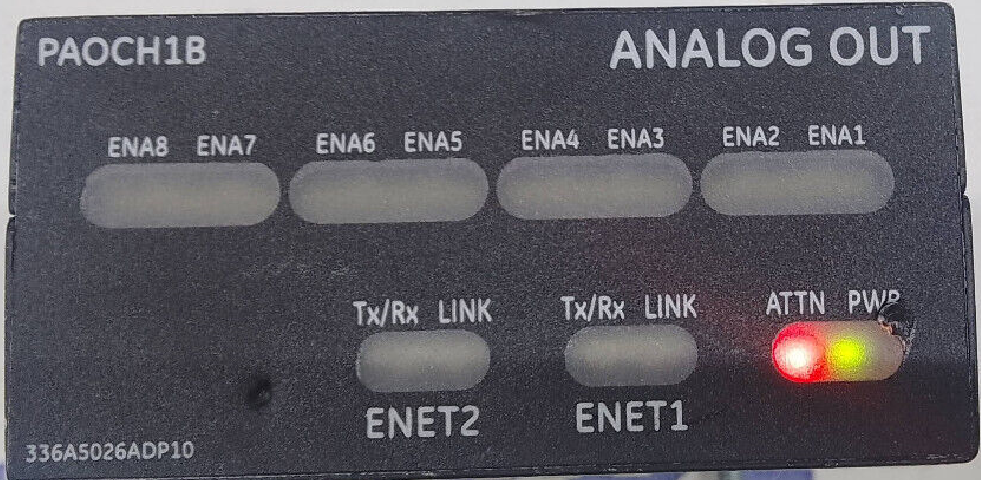

GE IS220PAOCH1B PAOC Analog Output Module
Description
| Manufacture | GE |
| Model | IS220PAOCH1B |
| Ordering information | IS220PAOCH1B |
| Catalog | MARK VIe |
| Description | GE IS220PAOCH1B PAOC Analog Output Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
3.3 PAOCAnalogOutputModule
ThefollowingI/Opackandterminalboardcombinationsareapprovedforuseinhazardouslocations: • AnalogoutputpackIS220PAOCH1Bwithterminalboards(accessories)IS200STAOH1A,IS200STAOH2A,orIS200TBAOH1C
3.3.1 ElectricalRatings Item Min Nominal Max Units PowerSupply Voltage 27.4 28 28.6 Vdc Current — — 0.45 Adc AnalogOutputs Voltage 0 — 18 Vdc Current 0 — 20 mAdc 3.3.2 FieldWireConnections TerminalBoard TerminalBlockType IS200STAOH1A,IS200STAOH2A RefertothetableEuroStyleBox-typeTerminalBlocksforwiresizeandscrew torques. IS200TBAOH1C RefertothetableBarrier-typeTerminalBlocksforwiresizeandscrewtorques. 3.3.3 IntrinsicSafety“ic” WiringDiagram ASSOCIATED APPARATUS ANALOG OUTPUTS INTRINSICALLY SAFE APPARATUS WITH ENTITY PARAMETERS: Vmax => Voc Imax => Isc Pi => Po Ci + Ccable <= Ca Li + Lcable <= La +Hazardous (Classified) Location Class I, Division 2, Groups A, B, C, and D Class I, Zone 2, Group IIC ATEX Zone 2, Group IIC Nonhazardous Location or Hazardous (Classified) Location Class I, Division 2, Groups A, B, C, and D Class I, Zone 2, Group IIC ATEX Zone 2, Group IIC EntityParameters AnalogOutputs Value Unit VocorUo 28.6 V IscorIo 22.5 mA Po 0.64 W CaorCo 0.26 uF LaorLo 100 mH
