GE IS215UCVGM06A IS215UCVGH1A UCV CONTROLLER Board
Description
| Manufacture | GE |
| Model | IS215UCVGM06A |
| Ordering information | IS215UCVGM06A |
| Catalog | Mark VI |
| Description | GE IS215UCVGM06A UCV CONTROLLER Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS215UCVGM06A and IS215UCVGH1A are VME Controller Cards from GE, designed for the GE Mark VI system, which is part of the Speedtronic line of control systems for steam and gas turbines.
The IS215UCVGM06A is used as UCV controller.
These cards are components of the UCV controller series and are designed to replace any previous controller without requiring a backplane upgrade, making them versatile for maintaining and upgrading turbine control systems.

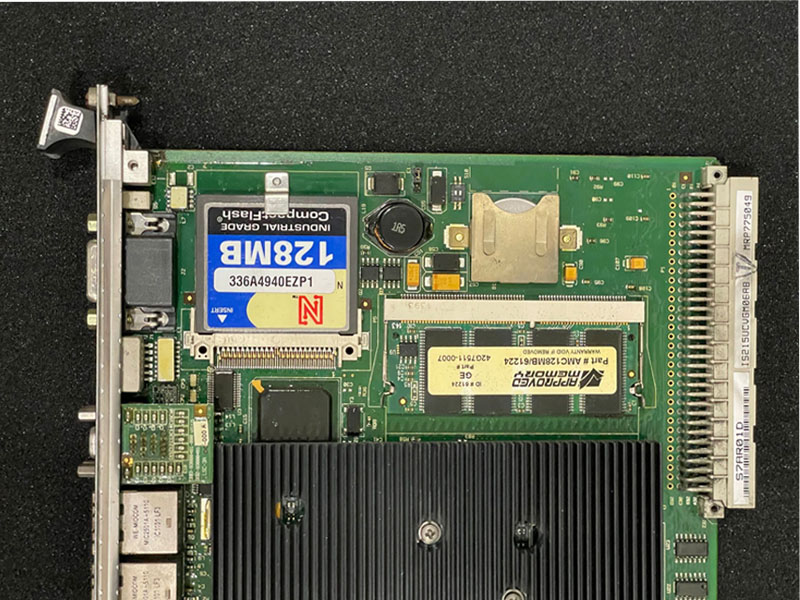

IS215UCVGM06A: This card is equipped with an Ultra Low-Voltage Celeron 650 processor from Intel, featuring 128MB of SDRAM and 128MB of flash memory.

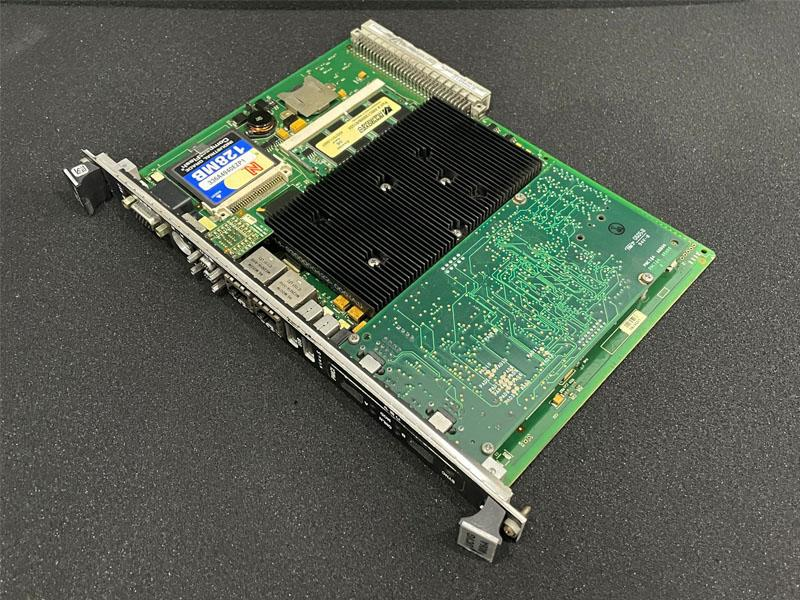

It includes a front faceplate with a reset switch, an SVGA monitor port, a keyboard/mouse port, two COM ports, two Ethernet ports (LAN1 and LAN2), two USB connectors, four LED indicators, and a faceplate opening.
The board is populated with several auxiliary boards and components such as capacitors, inductor coils, crystal oscillators, oscillating chips, jumper switches, and integrated circuits.
