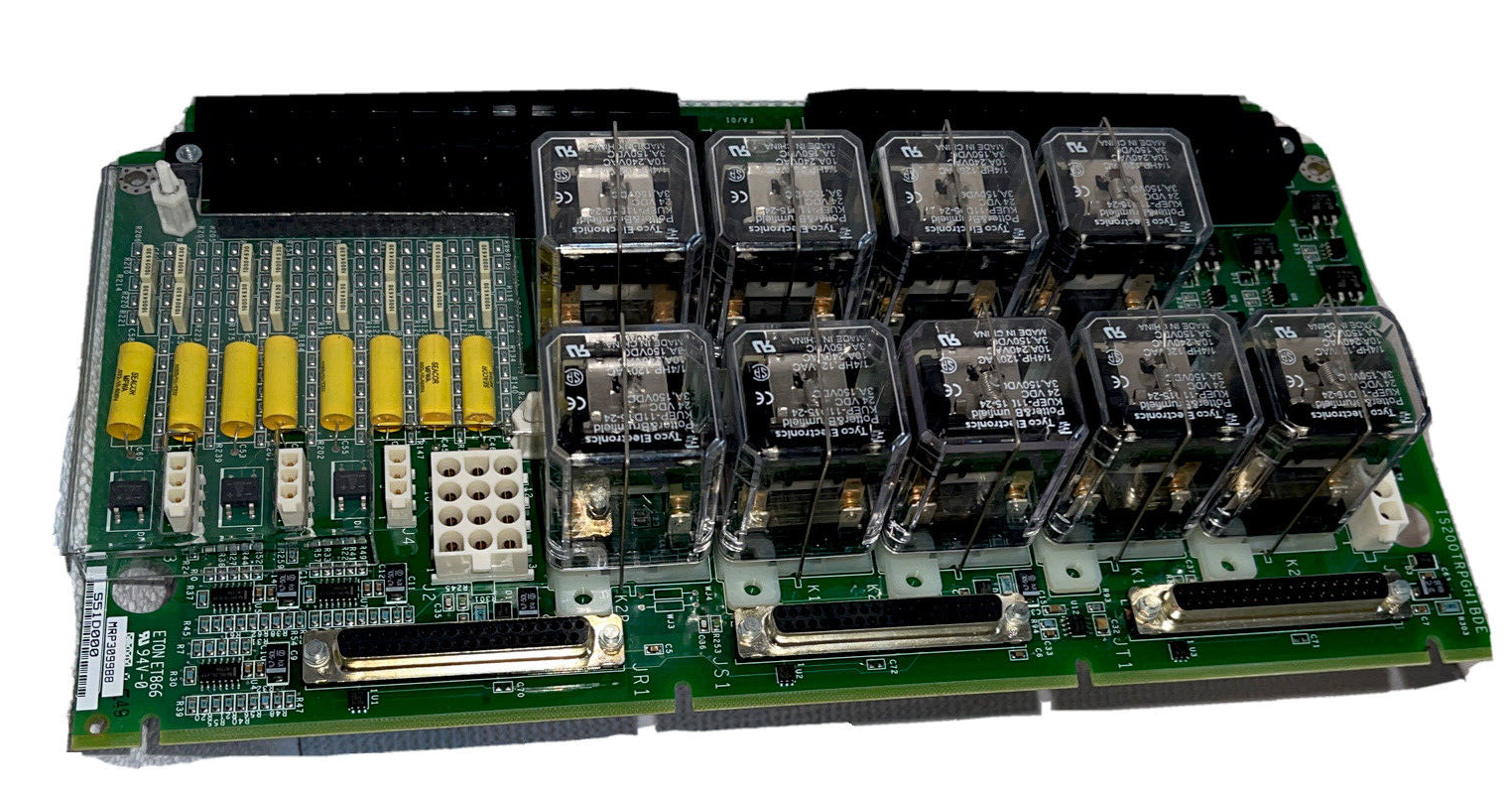

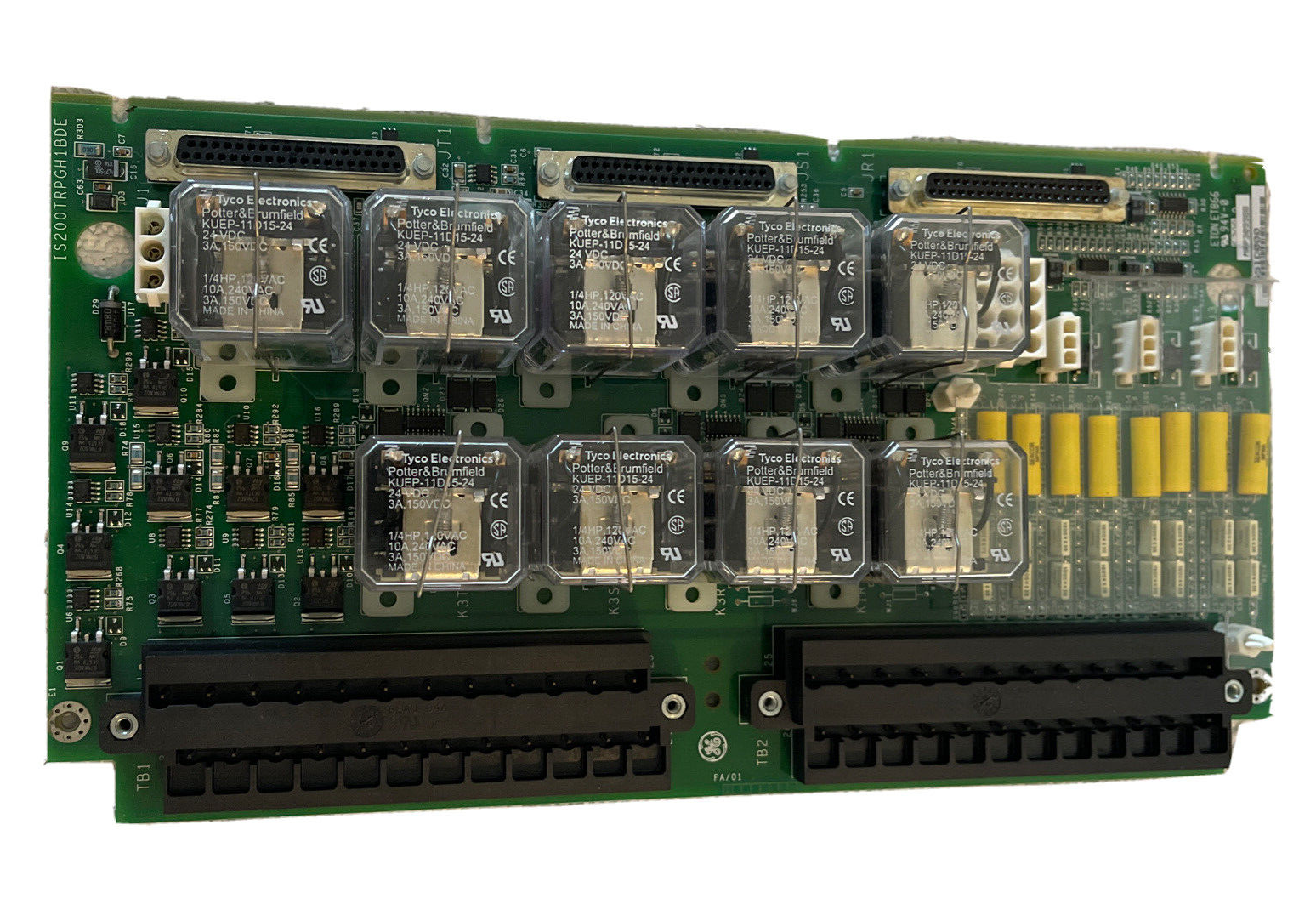

GE IS210TRPGH1B(IS200TRPGH1BDE) Primary Trip Terminal Board
Description
| Manufacture | GE |
| Model | IS210TRPGH1B |
| Ordering information | IS210TRPGH1B |
| Catalog | Mark VI |
| Description | GE IS210TRPGH1B(IS200TRPGH1BDE) Primary Trip Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS200TRPGH1B is a Primary Trip Terminal Board manufactured and designed by GE as part of the Mark VI Series used in gas turbine control systems.
The I/O controller regulates the TRPG terminal board. Three voting circuits in TRPG feature nine magnetic relays that connect to three trip solenoids, or Electrical Trip Devices (ETD). The primary and emergency sides of the interface to the ETDs are formed by the TRPG and TREG working together.
For gas turbine applications, TRPG also accepts inputs from eight Geiger-Mueller flame detectors. There are two board types as follows:
The H1A and H1B versions include three voting relays built into each trip solenoid for TMR applications.
For simplex applications, the H2A and H2B versions have one relay per trip solenoid.
