GE IS210DTTCH1A(IS200DTTCH1A) IS200DTCIH1ABB Simplex Thermocouple Input Board
Description
| Manufacture | GE |
| Model | IS210DTTCH1A |
| Ordering information | IS210DTTCH1A |
| Catalog | Mark VI |
| Description | GE IS210DTTCH1A Simplex Thermocouple Input Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

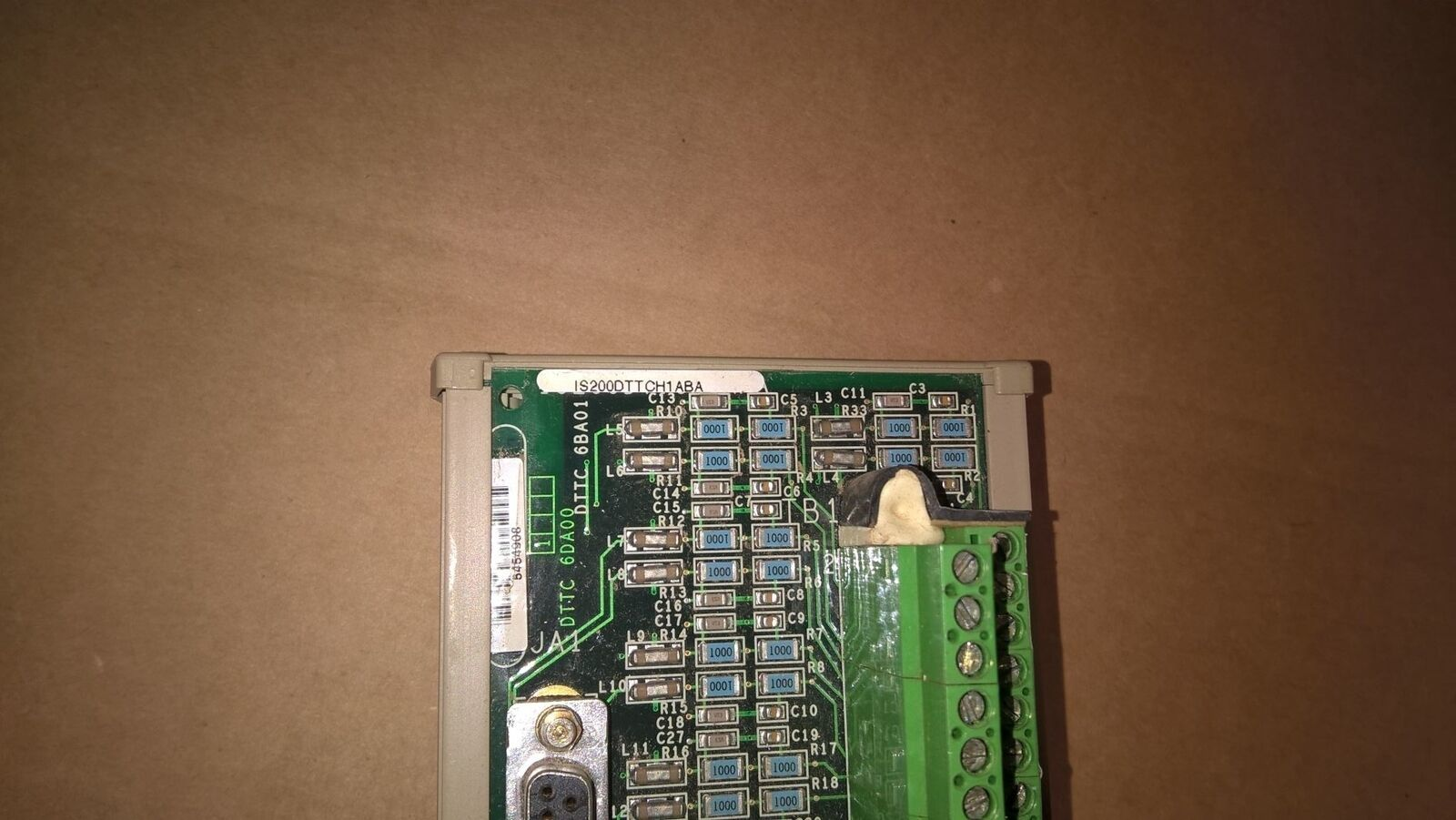

IS210DTTCH1AA is a Simplex Thermocouple Input Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Control Systems.

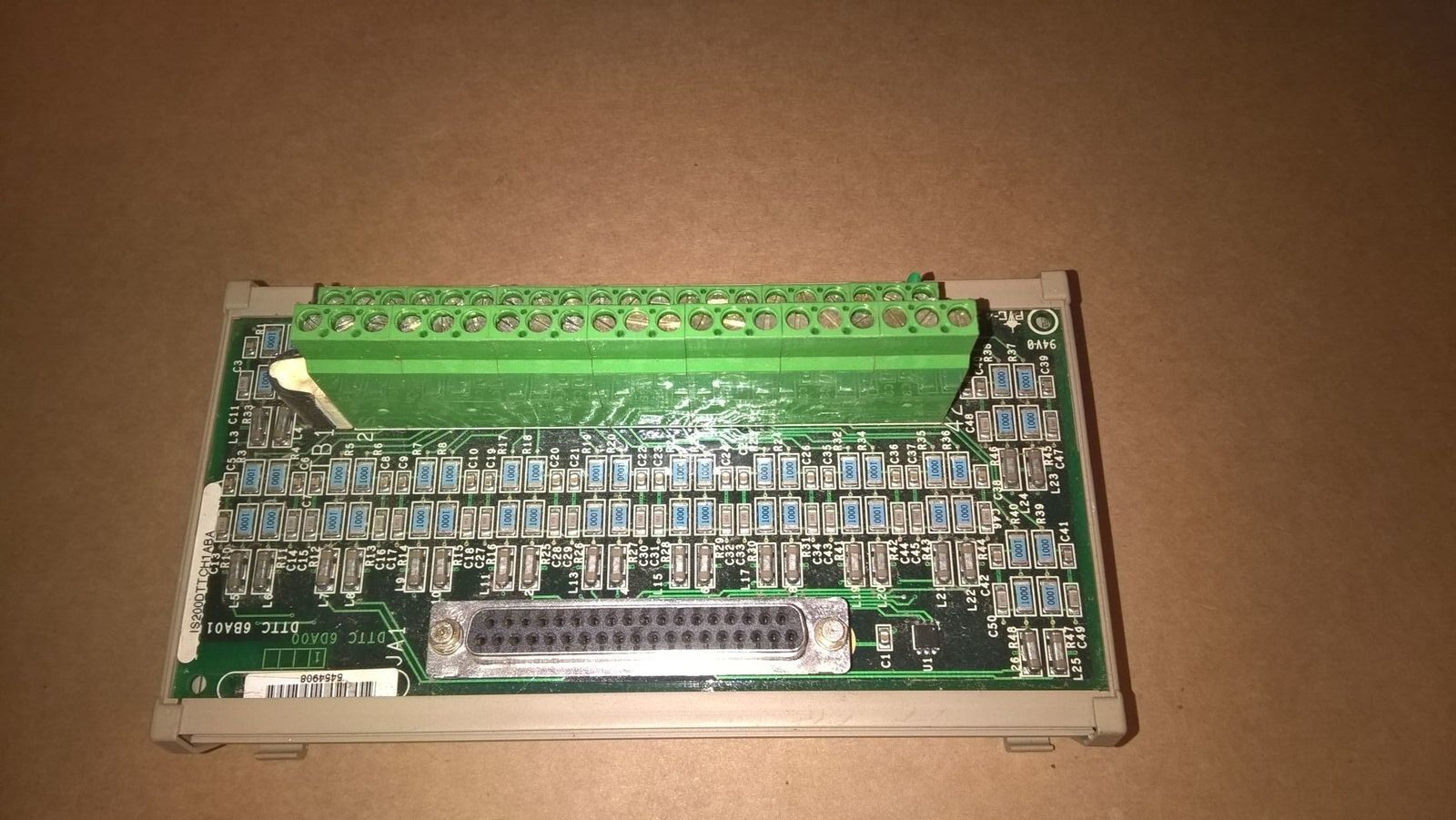

The Simplex Thermocouple Input (DTTC) terminal board is a compact terminal board designed for DIN-rail mounting.
The board has 12 thermocouple inputs and connects to the VTCC thermocouple processor board with a single 37-pin cable.
This cable is identical to the one used on the larger TBTC terminal board. The onboard signal conditioning and CJ reference are identical to those on the TBTC board.
Two DTTC boards can be connected to the VTCC for a total of 24 inputs. High-density Euro-block type terminal blocks are permanently mounted to the board with two screw connections for the ground connection (SCOM).
Every third screw connection is for the shield. Only the simplex version of the board is available. The terminal boards can be stacked vertically on the DIN rail to conserve cabinet space.
