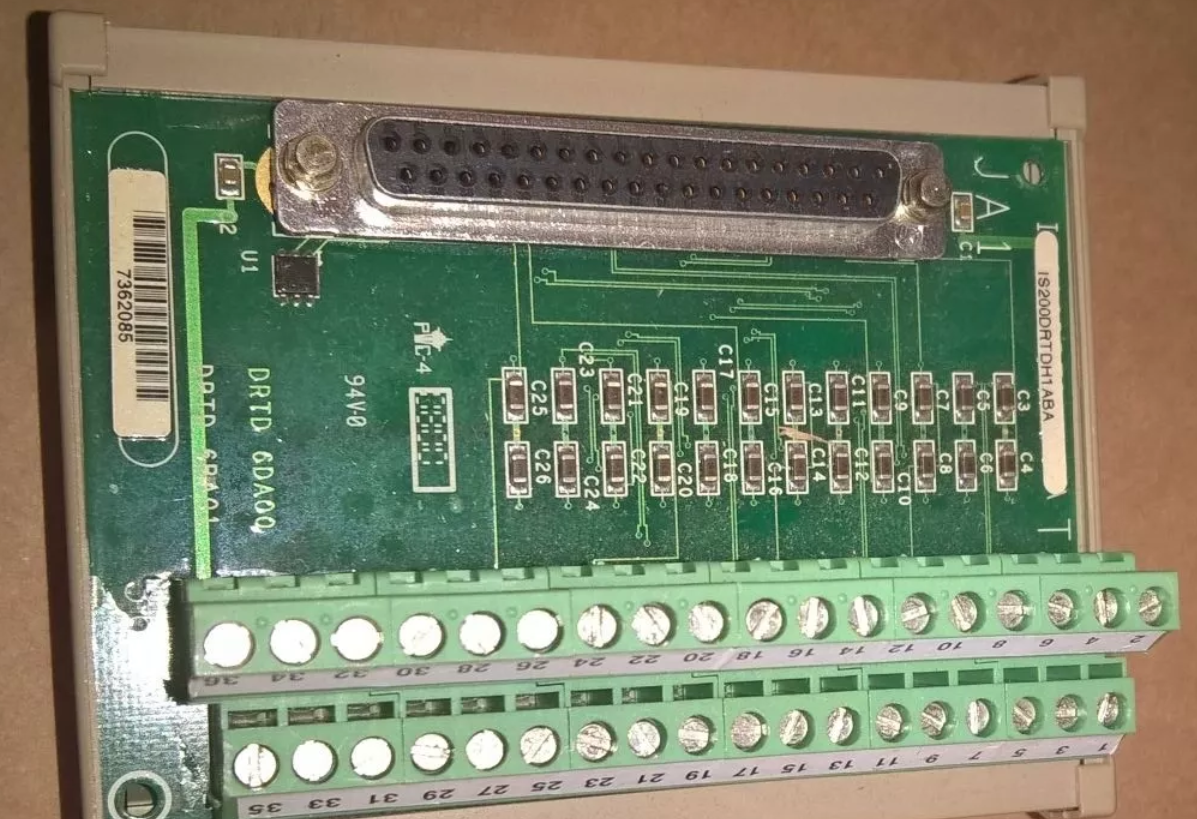

GE IS210DRTDH1A IS200DRTDH1A RTD Simplex Terminal Board
Description
| Manufacture | GE |
| Model | IS210DRTDH1A |
| Ordering information | IS210DRTDH1A IS200DRTDH1A |
| Catalog | Speedtronic Mark VI |
| Description | GE IS210DRTDH1A IS200DRTDH1A RTD Simplex Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS200DRTDH1A is a device which is known as a gate drive amplifier and interface board. These boards are used to interface between the control rack and power switching devices or IGBTs in Innovation Series low voltage drives. The IS200DRTDH1A is a device in the Mark VI series by General Electric. Mark VI is one of several series which make up the Mark family of devices by GE. The IS200DRTDH1A features a power rating of either 92 frames or 125 frames.
These devices have light-emitting diodes or LEDs. These LEDs let the user know whether the IGBT is turned off or on. The DAMDG2 is one of six (6) variations of gate drive boards named DAMC, DAMA, DAMB, DAMDG1, DAMDG2, and DAME. The boards in the DAM series are used when attaching bridge personality interfaces boards, emitters, IGBT gates, and collector terminals. These DAM boards don’t contain test points, fuses, or configurable parts. DAMD boards interface between devices without amplifying. These boards do not have any power input.
The IS200DRTDH1A features four light-emitting diodes or IGBT driver monitors named 2FF, 2ON, 1FF, and 1ON. 2FF and 1FF are green and 2ON and 1ON are yellow. The IS200DRTDH1A also contains twelve (12) pins or IGBT connections which are called C1, G1IN, COM1, C2, NC, COM2, and G2IN. The IS200DAMDG2AAA and other DAMD cards like it are shaped like the letter C. A large resistor with a small knob is situated on the left side of the IS200DAMDG2AAA. This resistor is long and rectangular and positioned parallel to the left edge.
The IS200DRTDH1A developed by General Electric is a printed circuit board or PCB created by General Electric or GE. This device was developed as a part of the Mark VI series of gas and steam turbine controls. It is designed as a small board shaped like a C and a square-shaped board attached on its right side. On the left side of the C-shaped half is a long white component which is lying vertically on the board?s surface. There are two solid white resistors that are positioned right next to this large component and many small components are visible on the side of this board. It also features four small light-emitting diodes or LEDs that are labeled as DS1 and DS2 light up yellow and the other two, labeled as DS3 and DS4, light up green. The DS1 is also named 1ON. DS2 is named 2ON, and the DS3 and DS4 are named IFF and 2FF respectively. These circuit boards contain twelve IGBT connection pins. These are named G21N, COM2, NC, C2, COM1, G1IN, and C1.
