GE IS200VCMIH2B VME Communication Board
Description
| Manufacture | GE |
| Model | IS200VCMIH2B |
| Ordering information | IS200VCMIH2B |
| Catalog | Mark VI |
| Description | GE IS200VCMIH2B VME Communication Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

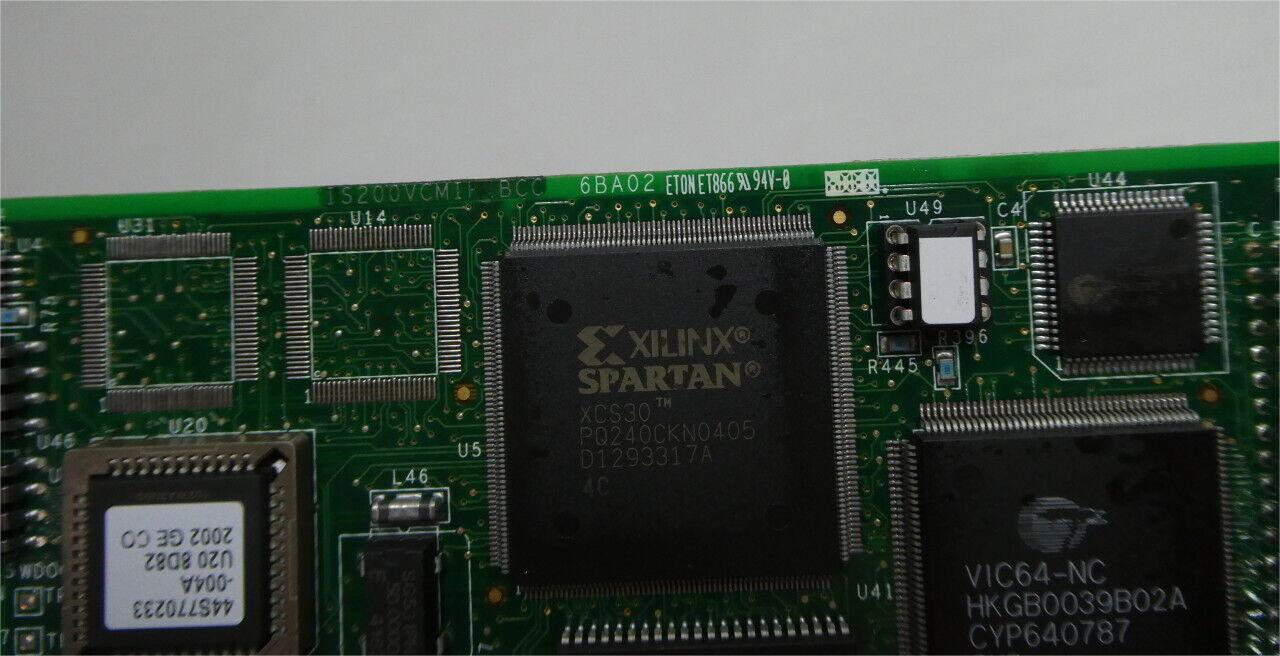

IS200VCMIH2B is a VME controller board developed by GE. It is a part of Mark VI control system.
The VCMI board in the control and interface module communicates internally with the I/O boards in its rack and via the IONet with the other VCMI cards.
There are two versions, one for simplex systems with one Ethernet IONet port and one for TMR systems with three Ethernet ports.
A single cable connects one control module to one or more interface modules in simplex systems.
In TMR systems, the VCMI with three separate IONet ports communicates with the three I/O channels Rx, Sx, and Tx, as well as the two other control modules.
Connection:
1.Three lONet 10 Base2 Ethernet ports, BNC connectors, 10 Mbits/sec VME bus block transfers
2.1 RS-232C Serial port, male "D" style connector, 9600, 19,200, or 38,400 bits/sec
3.1 Parallel port, eight bit bi-directional, EPP Version1.7 mode of IEEE 1284-1994
