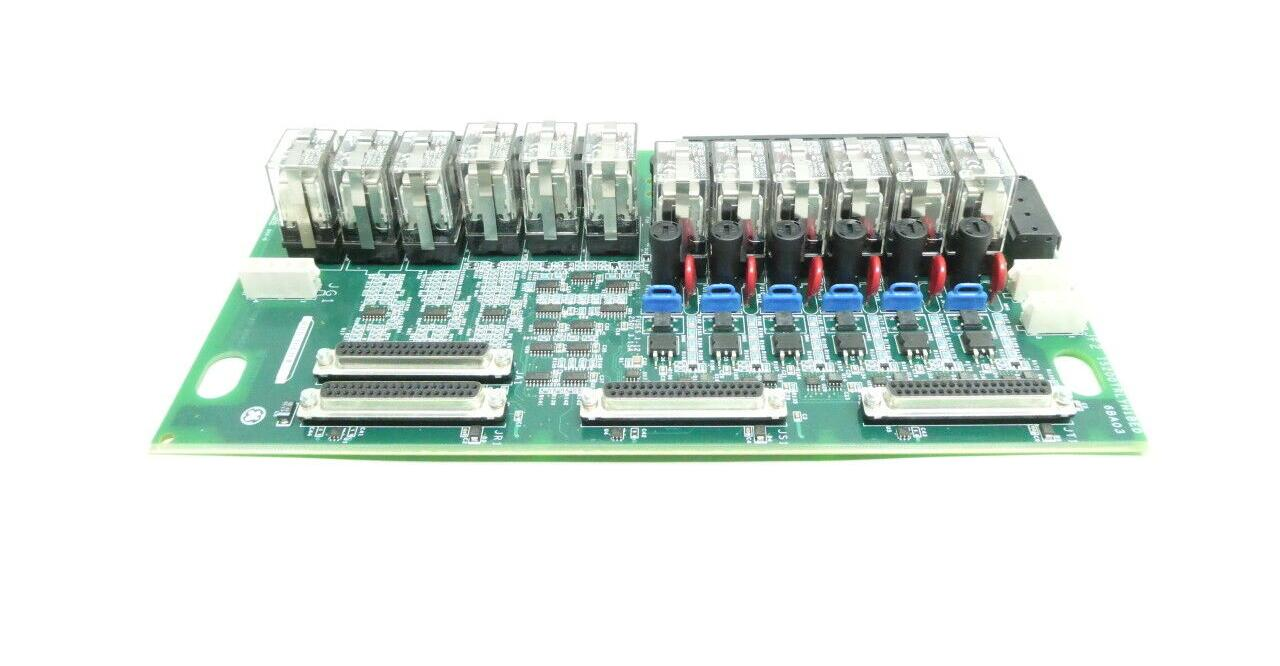

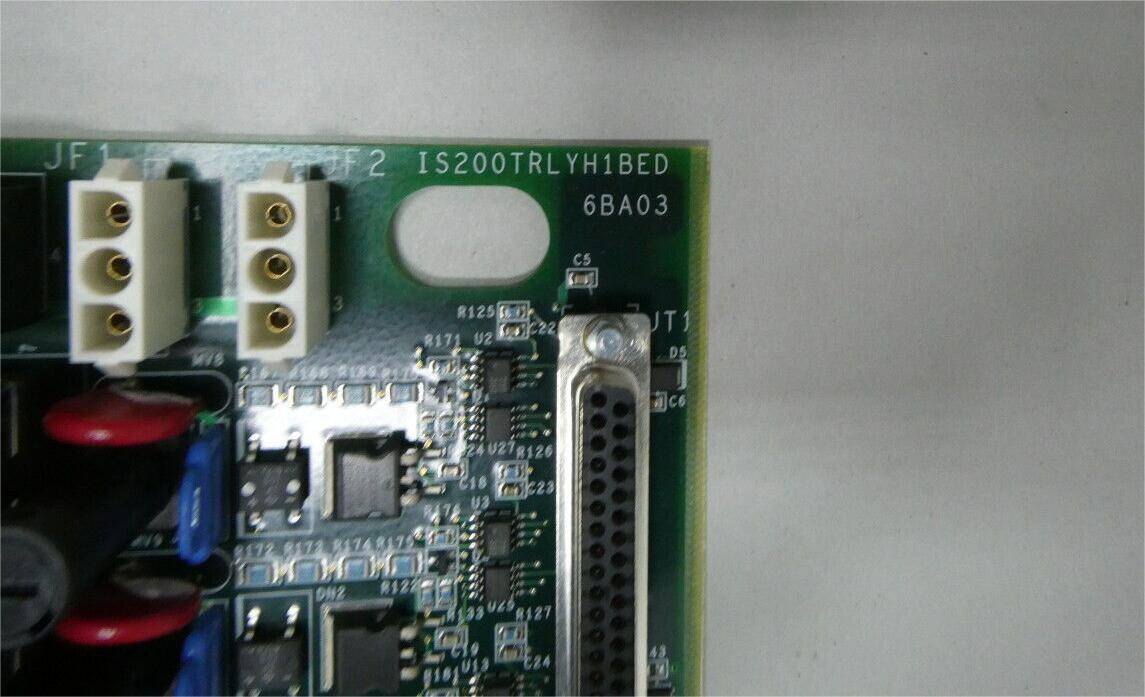

GE IS200TRLYH1BED IS200TRLYH1BFD Relay Terminal Board
Description
| Manufacture | GE |
| Model | IS200TRLYH1BED |
| Ordering information | IS200TRLYH1BFD |
| Catalog | Mark VI |
| Description | GE IS200TRLYH1BED IS200TRLYH1BFD Relay Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS200TRLYH1BED is a Relay Terminal Board developed by GE. It is a part of Mark VI system. The board is designed to accommodate and control up to 12 plug-in magnetic relays.
It include jumper configurations, power source options, and on-board suppression capabilities. The relay module serves as a reliable and flexible solution for controlling plug-in magnetic relays in industrial applications.
With its configurable relay circuits, multiple power source options, and on-board suppression capabilities, it offers versatility, reliability, and ease of integration, making it an ideal choice for a wide range of control and automation tasks.
The first six relay circuits on the TRLYH1B board offer flexible configuration options. They can be jumper-configured to provide either dry, Form-C contact outputs or to drive external solenoids, depending on the specific requirements of the application.
The board supports multiple power source options to cater to different voltage requirements.
A standard 125 volts DC or 115/230 volts AC source is available, providing flexibility in power supply selection.
Additionally, an optional 24 volts DC source is offered for specific applications requiring this voltage range.
Each power source comes with individual jumper-selectable fuses, ensuring protection and safety for the system.
