GE IS200TPROH1C Emergency Protection Terminal board
Description
| Manufacture | GE |
| Model | IS200TPROH1C |
| Ordering information | IS200TPROH1C |
| Catalog | Mark VI |
| Description | GE IS200TPROH1C Emergency Protection Terminal board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

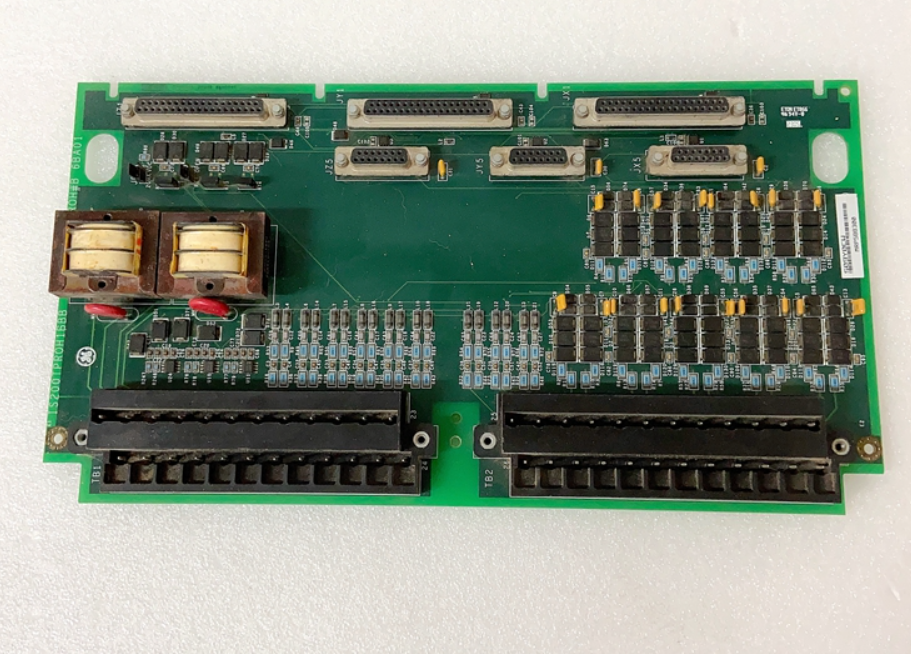

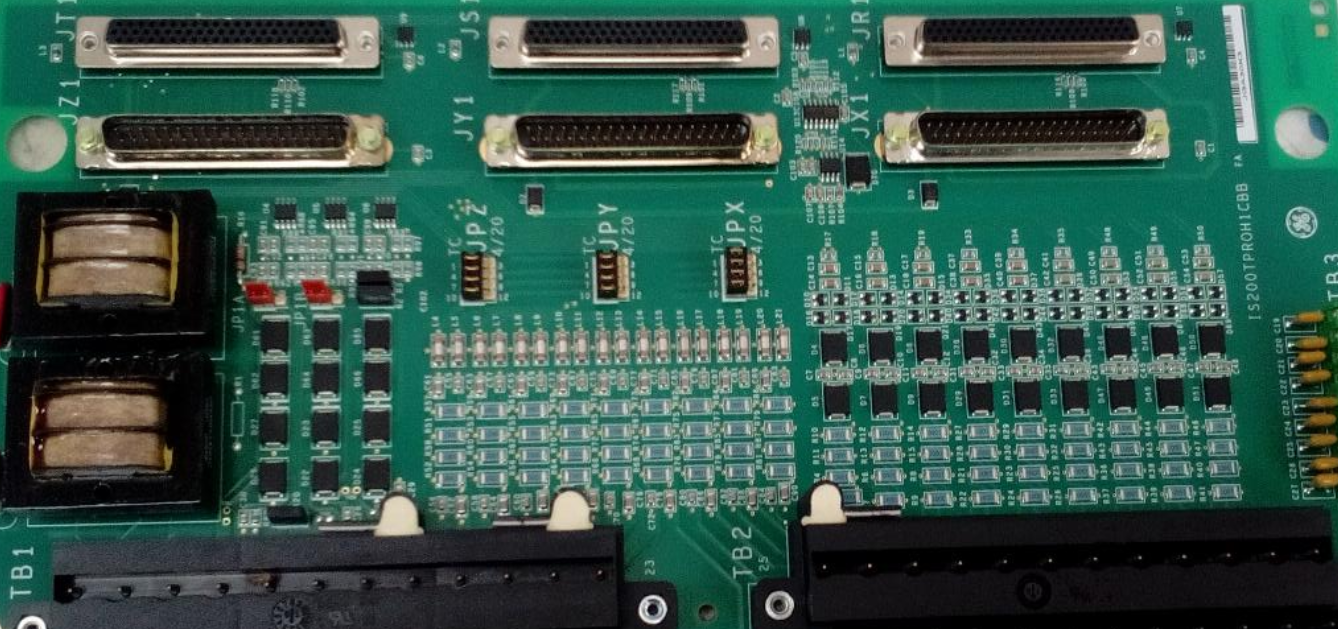

The IS200TPROH1C is an Emergency Protection (TPRO) terminal board developed by GE.
Three PPRO I/O packs are housed on the Emergency Protection (TPRO) terminal board.
It has a pair of potential transformers (PTs) for bus and generator voltage input and conditions speed signal inputs for the PPROs.
There are three DC-37 pin connectors on it, one on each side of the PPRO pack connectors.
A cable leading to a Mark* VIe backup trip relay terminal board is accepted by each DC-37. TPROH1C has two pluggable blocks with 24 barrier terminals each.
TPROH1C is a simplex and TMR application that works with the PPRO I/O pack. TPROH#C links to three PPRO I/O packs in TMR systems.
TPROH1CD and H12C both accept three PPROH1As for direct attachment and include DC-37 connections for three cables to the backup trip relay terminal boards.
Features
Pulse rates of magnetic speed pickup
range from 2 Hz to 20,000 Hz.
The pulse rate accuracy of the magnetic speed pickup 0.05 percent of the reading.
Dimensions
15.9 cm tall x 17.8 cm broad
Technology
Surface-mount
Operating temperature 30°C to 65°C
