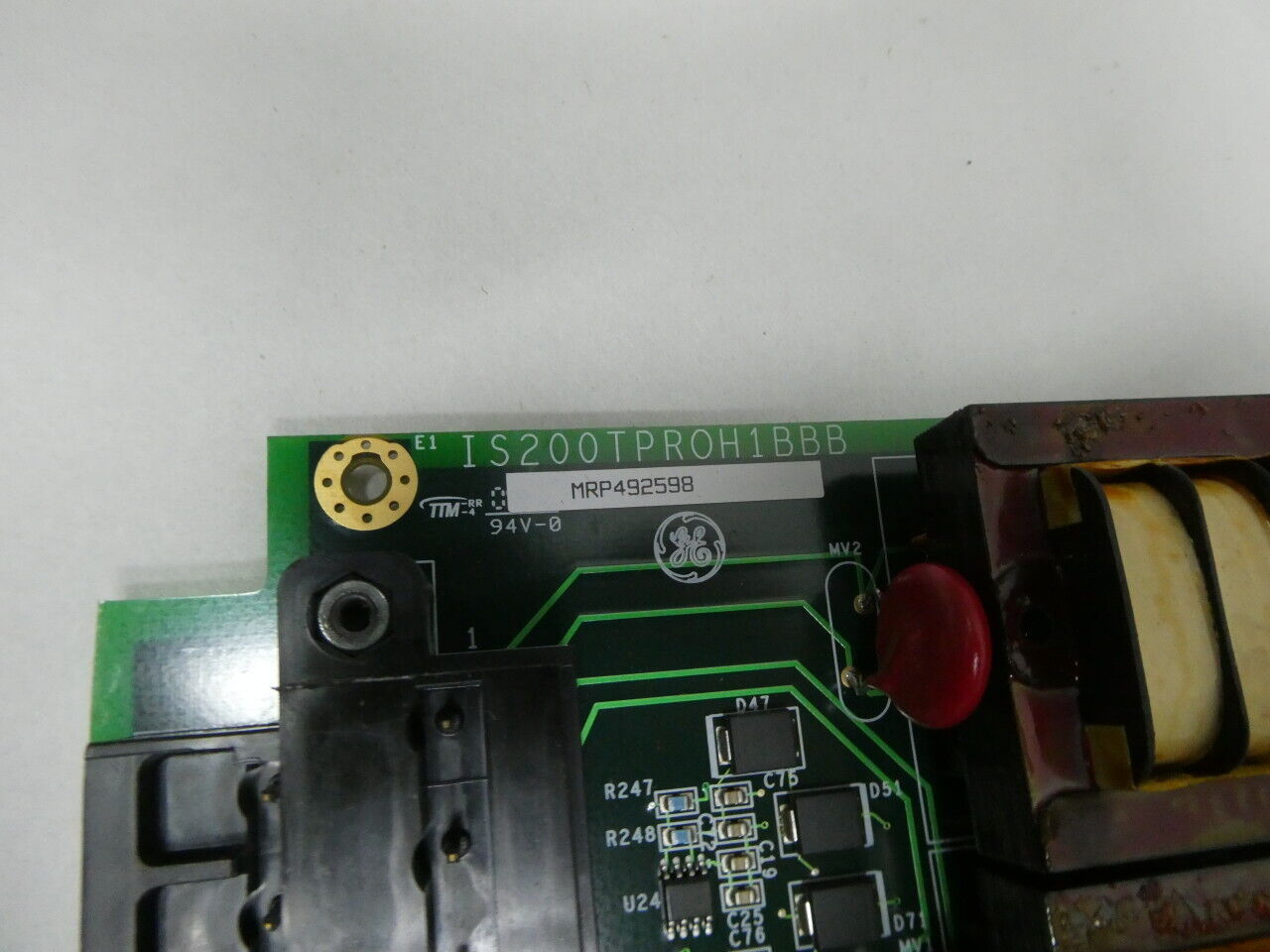

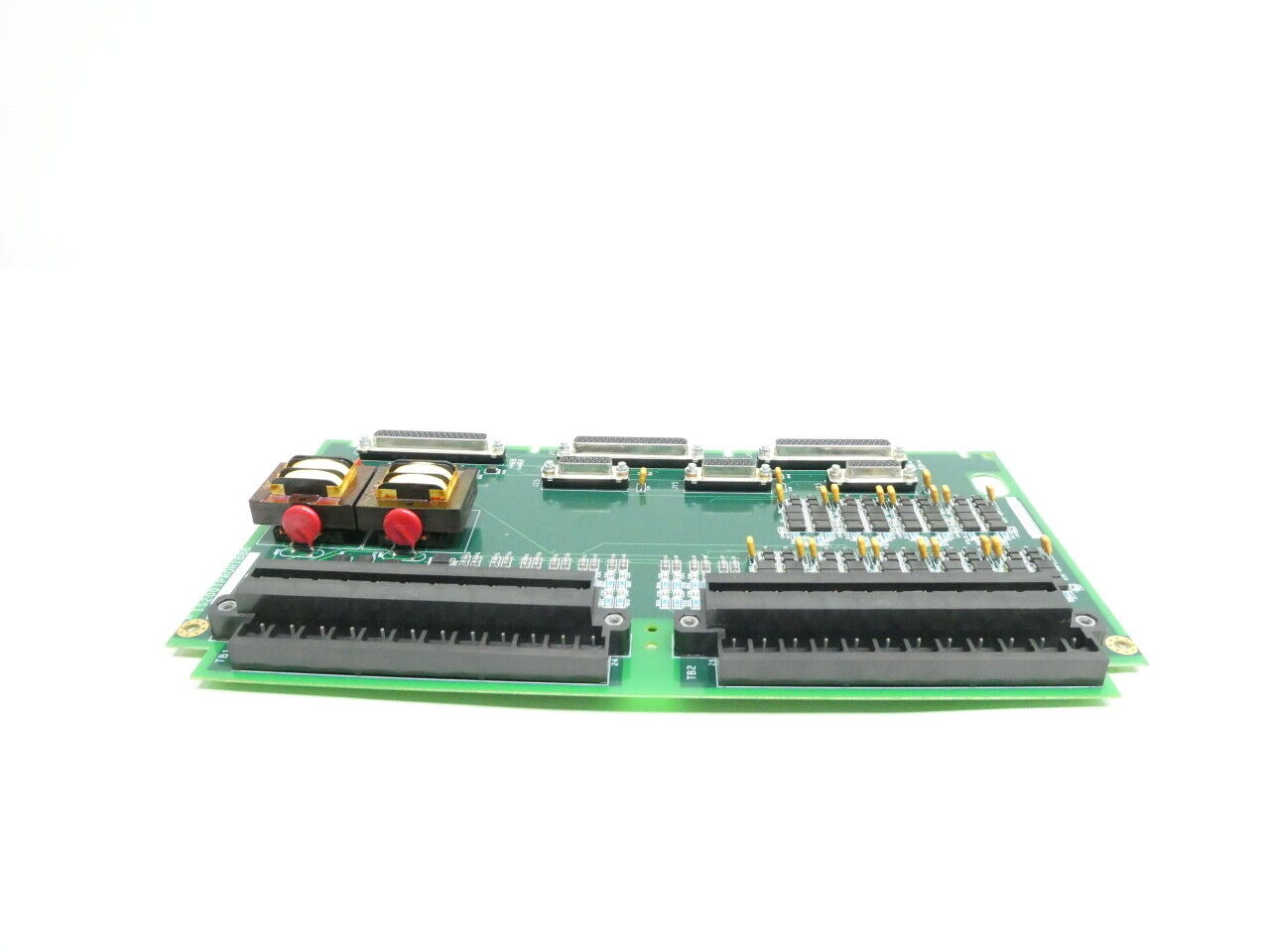

GE IS200TPROH1B IS200TPROH1BBB Terminal Protection Board
Description
| Manufacture | GE |
| Model | IS200TPROH1B |
| Ordering information | IS200TPROH1BBB |
| Catalog | Mark VI |
| Description | GE IS200TPROH1B IS200TPROH1BBB Terminal Protection Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS200TPROH1BBB is a Termination BD., It is a part of Mark VI systems.
This module serves as a key component, providing basic signals such as speed, temperature, generator voltage, and bus voltage to the VPRO.
This collaboration has formed an independent emergency overspeed and synchronous protection system to ensure safety and stability.
This comprehensive arrangement demonstrates the key interaction between TPRO and VPRO in emergency overspeed and synchronous protection systems.
The integrated functions and control mechanisms ensure timely and coordinated responses to emergency situations, with priority given to the safety and system stability of turbine operation.
Functions：
1. Emergency trip function: As the main entity providing emergency trip function, VPRO plays a key role in preventing potential dangers. It controls up to three trip solenoids connected between the TREx and TRPx (TRPG, TRPL or TRPS) terminal blocks.
2. Turbine Trip Control: The TREx and TRPx terminal boards manage the positive and negative poles of the 125 V DC supply to the trip solenoid valve respectively. Either panel has the ability to trip the turbine in an emergency.
3. Overspeed protection: VPRO undertakes emergency overspeed protection and emergency stop functions to ensure timely response to key scenarios.
