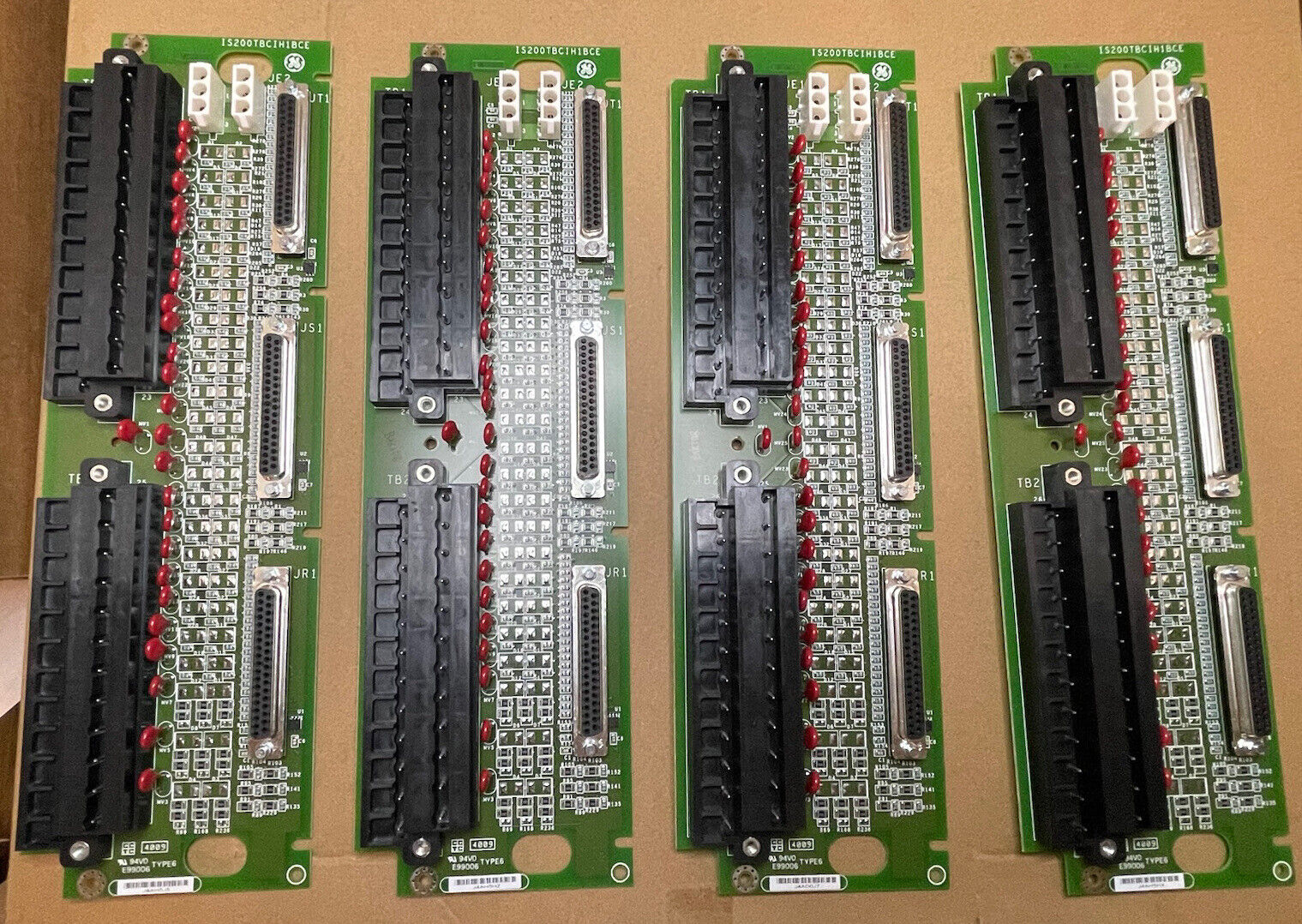

GE IS200TBCIH1B IS200TBCIH1BBC Contact Input Terminal Circuit Board
Description
| Manufacture | GE |
| Model | IS200TBCIH1B |
| Ordering information | IS200TBCIH1B |
| Catalog | Mark VI |
| Description | GE IS200TBCIH1B IS200TBCIH1BBC Contact Input Terminal Circuit Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
IS200TBCIH1B is a Contact Input Terminal Board manufactured and designed by GE as part of the Mark VIe Series.
The 24-dry-contact input terminal board (TBCI) can be linked to two barrier-type terminal blocks.
To excite the contacts, TBCI is linked with dc electricity. For surge and high-frequency noise protection, noise suppression circuitry is present at the contact inputs.
The two I/O terminal blocks installed on the terminal board are directly linked to the 24 dry contact inputs.
Two screws hold these blocks in place, and they can be unplugged from the board for upkeep.
Each block has 24 terminals that can accommodate wires up to #12 AWG.
Directly to the left of each terminal block is a shield terminal strip connected to the chassis ground.
