GE IS200TBAIH1C Terminal Board,Analog Input
Description
| Manufacture | GE |
| Model | IS200TBAIH1C |
| Ordering information | IS200TBAIH1C |
| Catalog | Mark VI |
| Description | GE IS200TBAIH1C Terminal Board,Analog Input |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

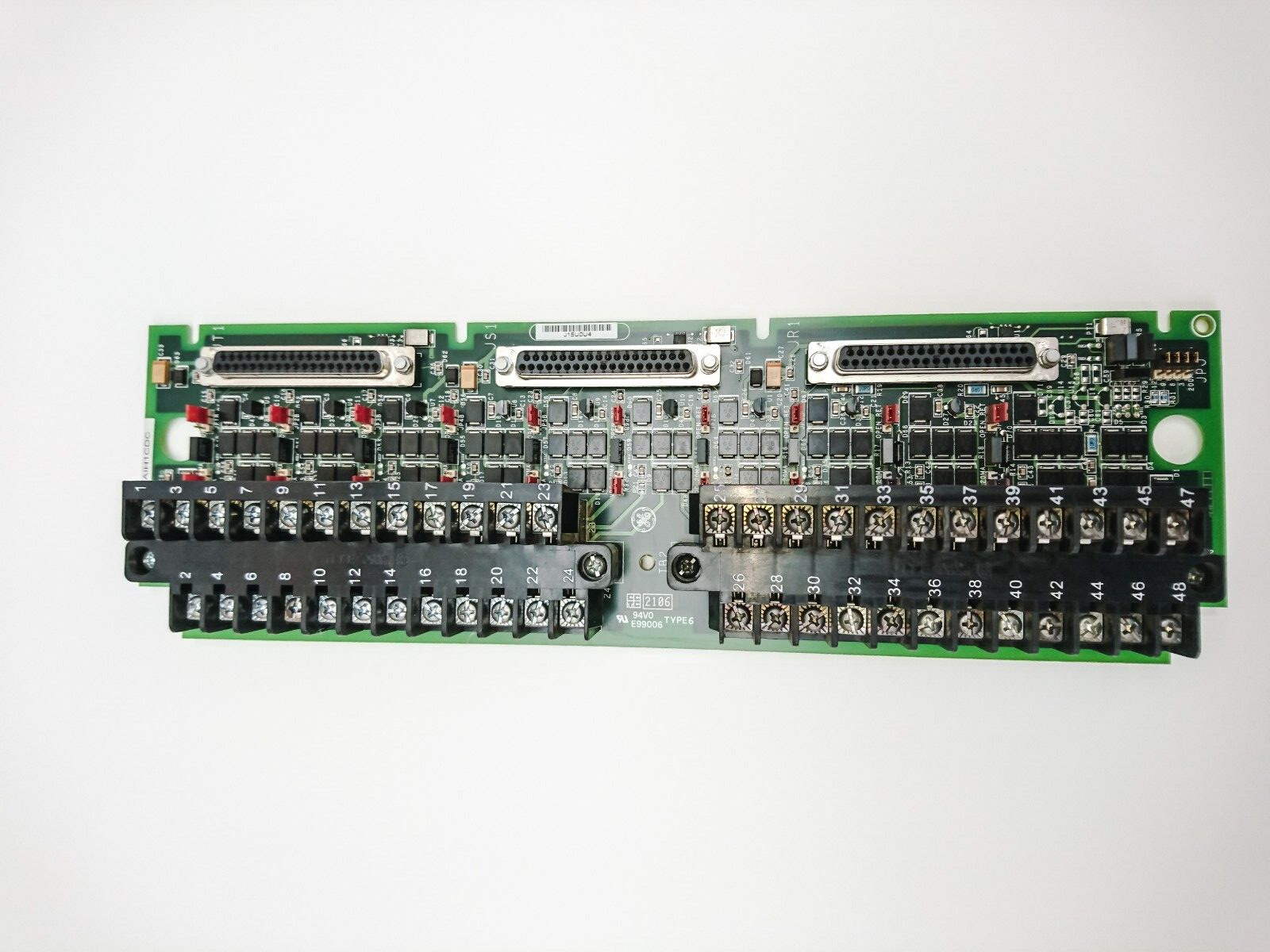

The IS200TBAIH1C is an Analog Input Terminal Board manufactured and by GE as part of the Mark VI Series.
Two outputs and 10 analog inputs are supported by the Analog Input terminal board.
Two-wire, three-wire, four-wire, or transmitters that are powered externally can all be plugged into one of the ten analog inputs. A current of 0-20 mA or 0-200 mA can be configured for the analog outputs. Surge and high frequency noise are protected from by noise suppression circuitry in the inputs and outputs.
For connecting to the I/O processors, the TBAI has three DC-37 pin connectors available. It is possible to connect using TMR with all three connectors or simplex on one connector (JR1).
Both direct connections to the electronics and cable connections are possible. To the three connectors for the R, S, and T controls in TMR applications, the input signals are fanning outward.
Utilizing a measuring shunt on the TBAI, the total current of the three output drivers that are connected is combined to run TMR outputs.
Following that, the electronics are given the total current signal by the TBAI so they can regulate it to the specified setpoint.
