GE IS200STCIH2A IS200STCIH2AED DINRL CNTIP
Description
| Manufacture | GE |
| Model | IS200STCIH2A |
| Ordering information | IS200STCIH2A |
| Catalog | Mark VI |
| Description | GE IS200STCIH2A DINRL CNTIP |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

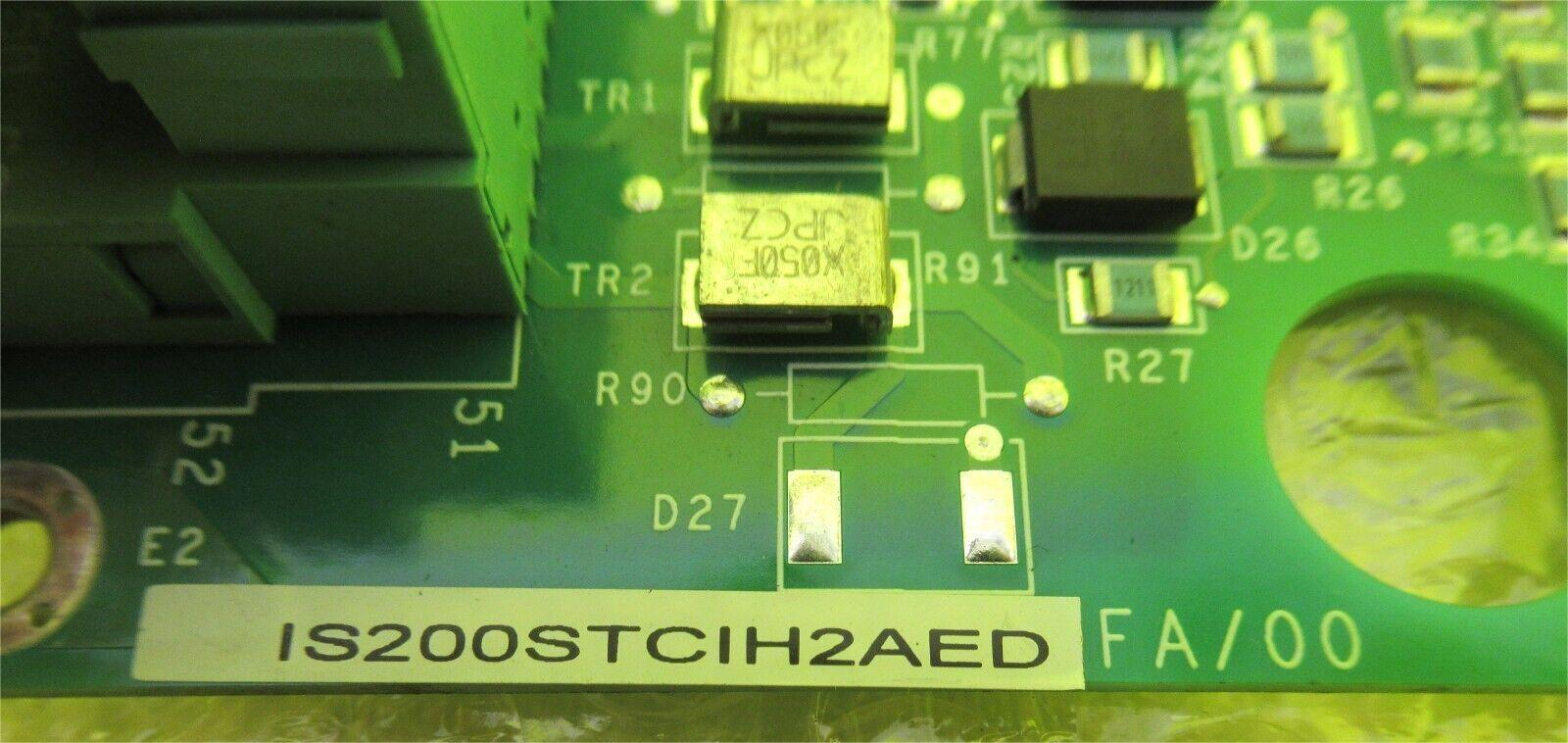

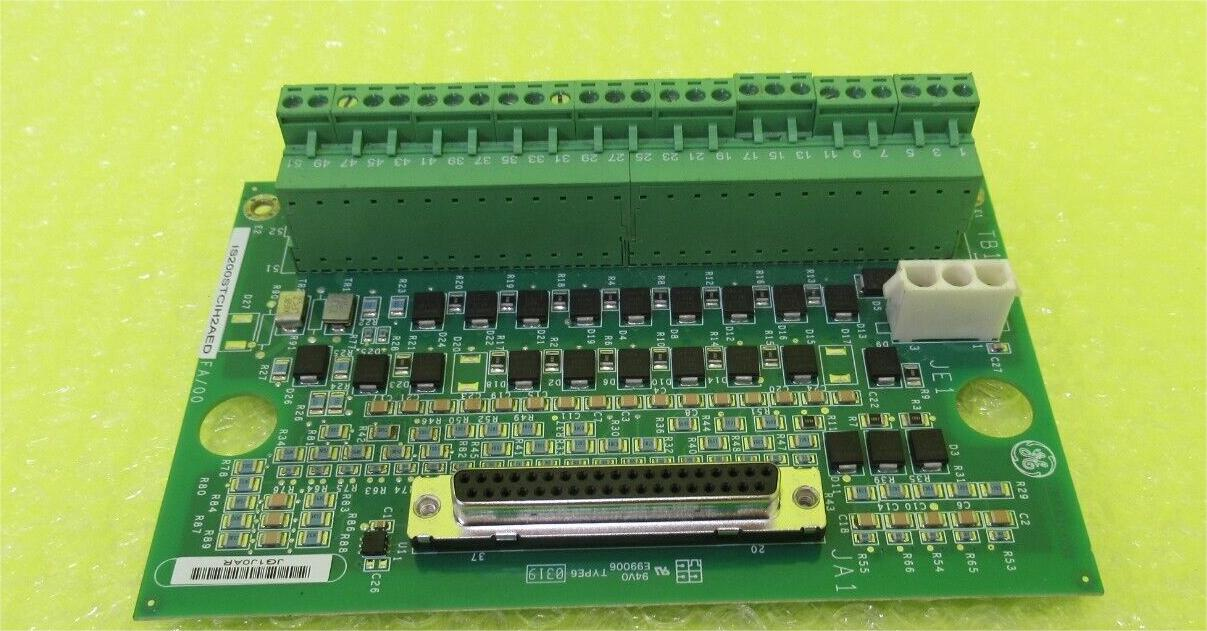

IS200STCIH2A is a Contact Input terminal board developed by GE.It is a part of Mark VI series,
The Contact Input terminal board is a small contact input terminal board designed for DIN-rail or flat mounting.
The board accepts 24 contact inputs with nominal 24, 48, and 125 V dc excitation from an external source.
The contact inputs have noise suppression to protect against surge and high-frequency noise.
The PAIC I/O Pack is compatible with the module. The I/O pack plugs into the D-type connector and communicates with the controller via Ethernet. Only simplex systems are supported.
