GE IS200SPIDG1ABA Simplex Funct ID Board
Description
| Manufacture | GE |
| Model | IS200SPIDG1ABA |
| Ordering information | IS200SPIDG1ABA |
| Catalog | Mark VI |
| Description | GE IS200SPIDG1ABA Simplex Funct ID Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

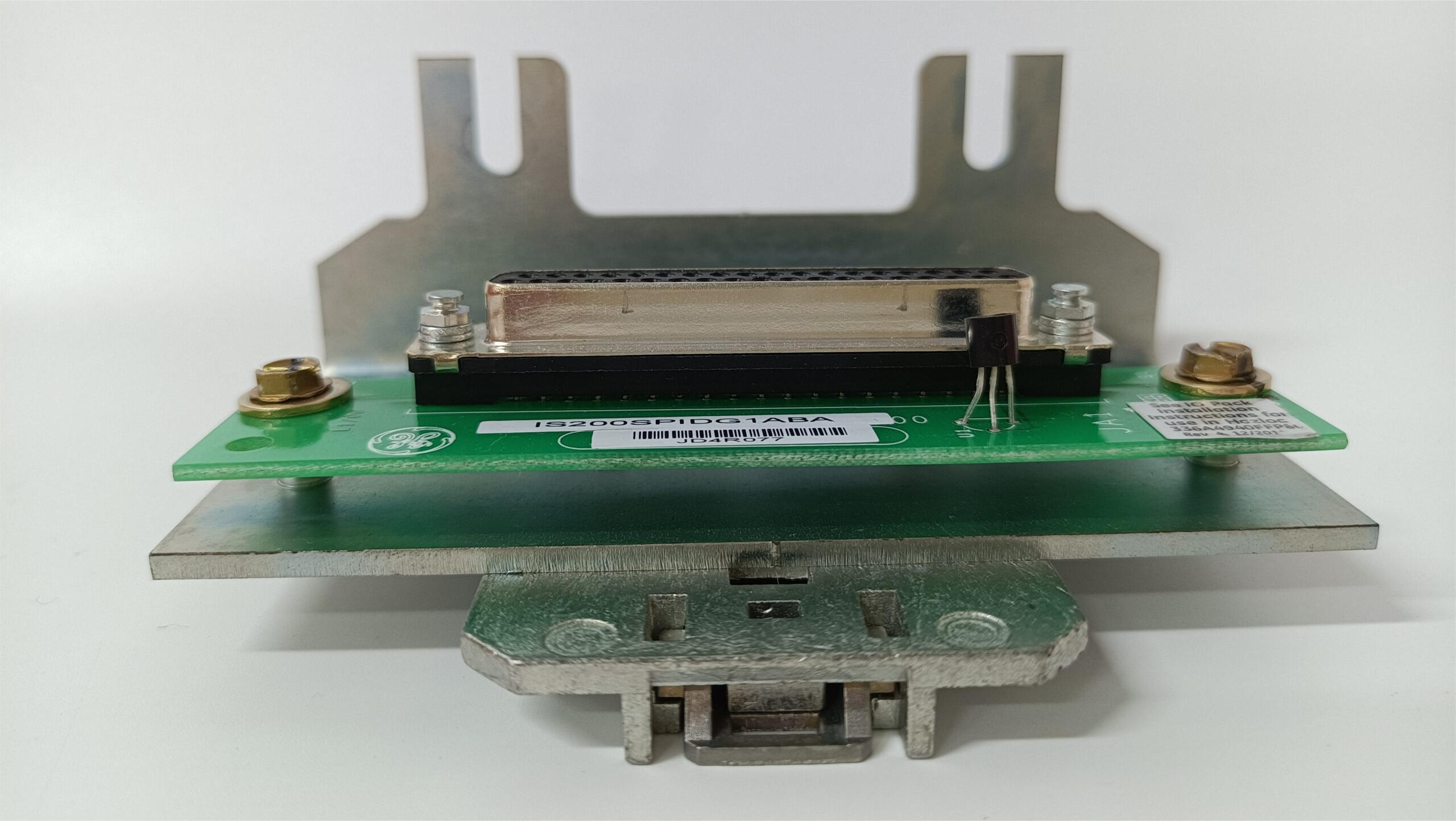

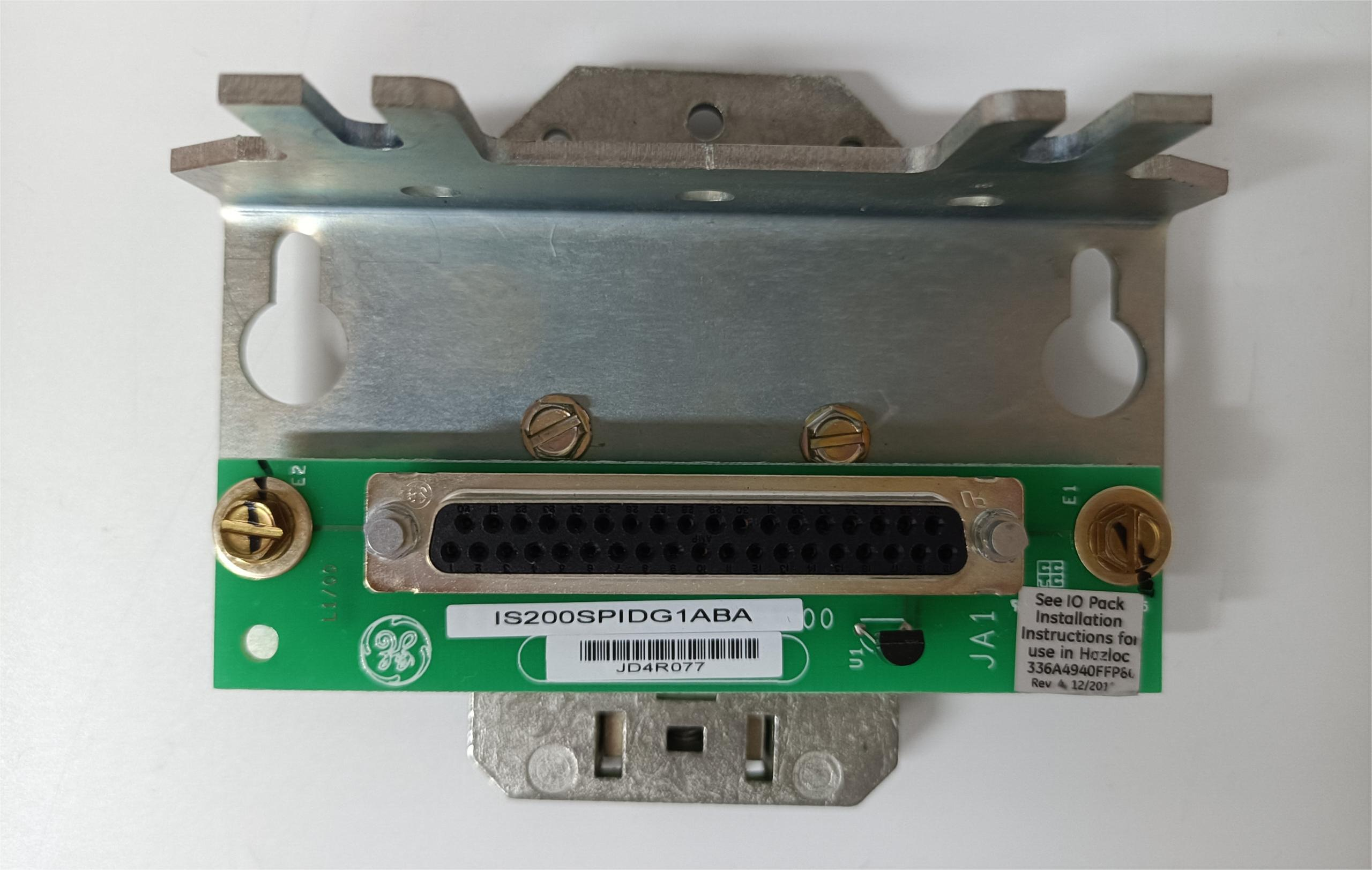

IS200SPIDG1A is a Simplex Funct ID Board manufactured by GE as part of the Mark VIe Series.
The I/O pack is mounted on the PROFIBUS Master Gateway Terminal board (SPIDG1A), which also provides an electronic ID.
As the PROFIBUS connection is established to the DE-9 D-sub receptacle connector that is exposed on the side of the I/O pack, that connection's only interface is with the I/O pack itself.
Indicator LEDs on the I/O pack enable visual diagnostics.
- A fast CPU with flash memory and RAM.
- Two connectorized, totally independent 10/100 Ethernet ports.
- A hardware reset circuit and watchdog timer.
- A temperature sensor inside.
- LEDs that display status.
- The capacity to read IDs on other boards through electronic means.
- An input power connector with a current limiter and a soft start.
- Local power supplies, with monitoring and sequencing.
