GE IS200ISBEH1ABC Insync Bus Extender Board
Description
| Manufacture | GE |
| Model | IS200ISBEH1ABC |
| Ordering information | IS200ISBEH1ABC |
| Catalog | Mark VI |
| Description | GE IS200ISBEH1ABC Insync Bus Extender Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

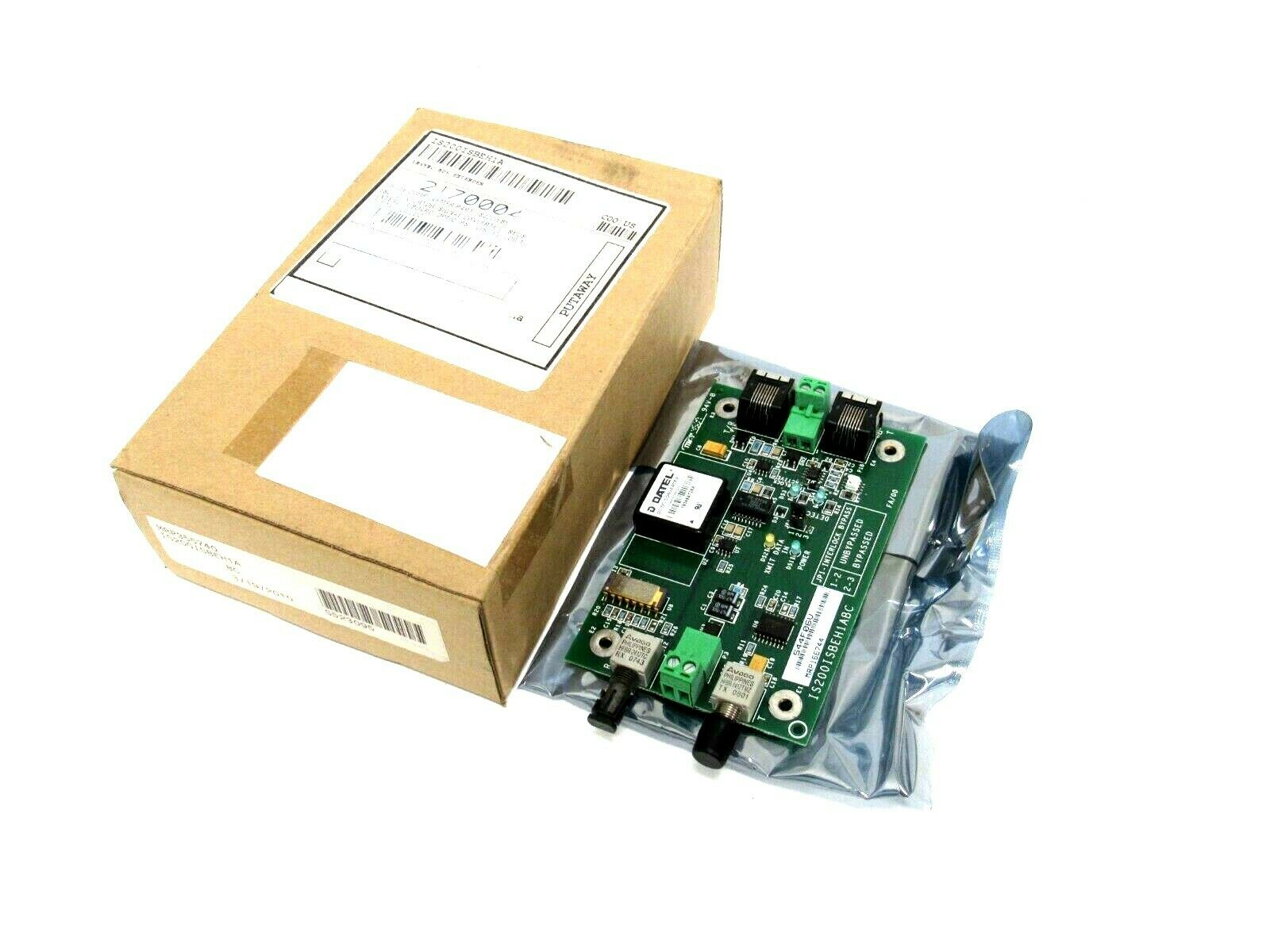

The IS200ISBEH1ABC is a Insync Bus Extender Board developed by GE.
The GE Energy EX2100 Excitation Control System is a cutting-edge platform for generator excitation.
Along with the transformers, this excitation system includes multiple controllers, power bridges, and a protection module.

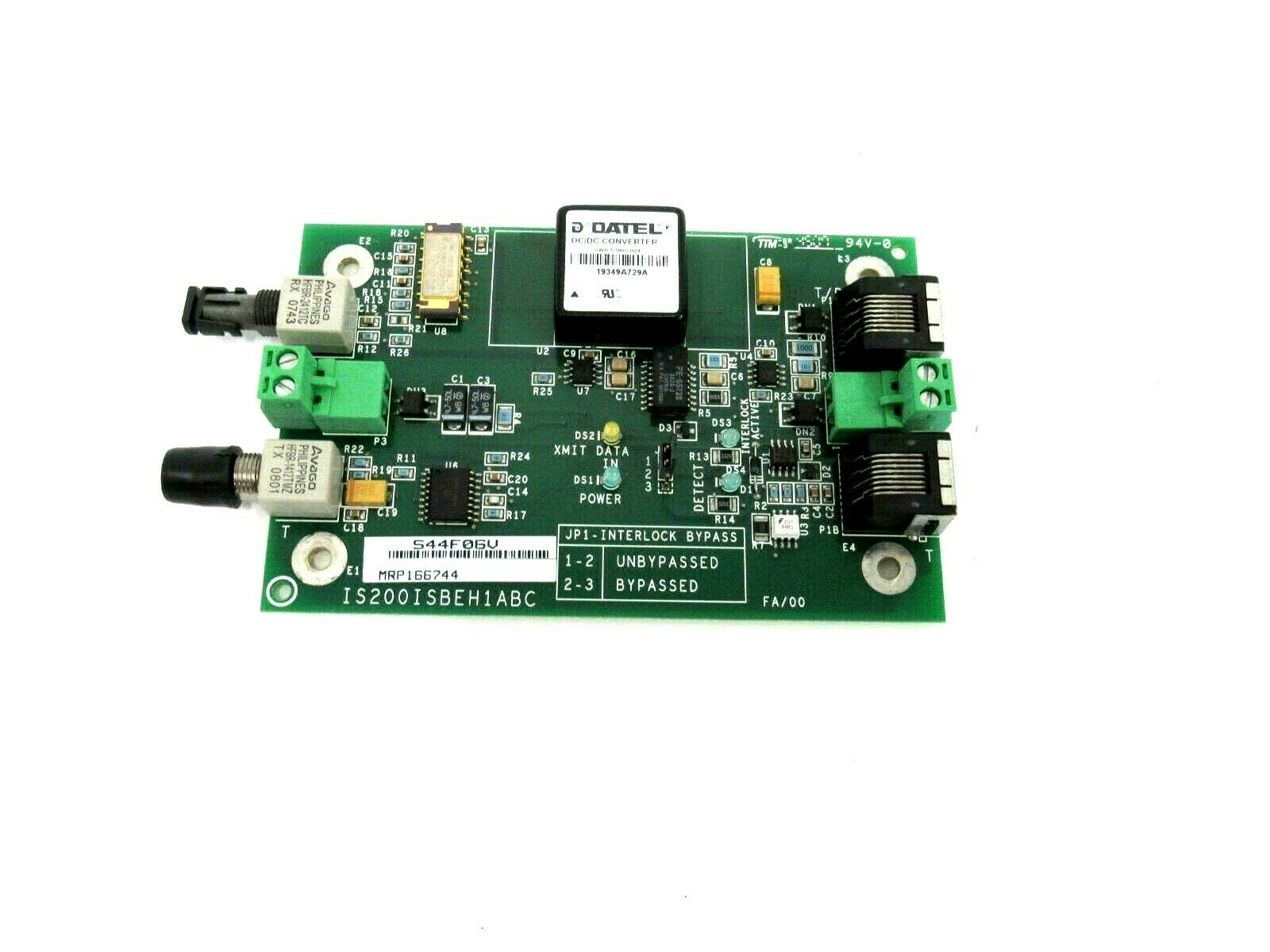

This board contains a DATEL DC/DC converter with an 18V to 36V input and a 5V output-1A.
This part is identified as UWR 5/1000-D24 04127A612A. There are two fiber-optic connectors, two two-position terminal strips, and two male plugs labeled P1A and P1B on the board.
The board is made up of three LEDs (two green and one amber) and eight integrated circuits. The board has the markings 94V-0 and FA/00.
