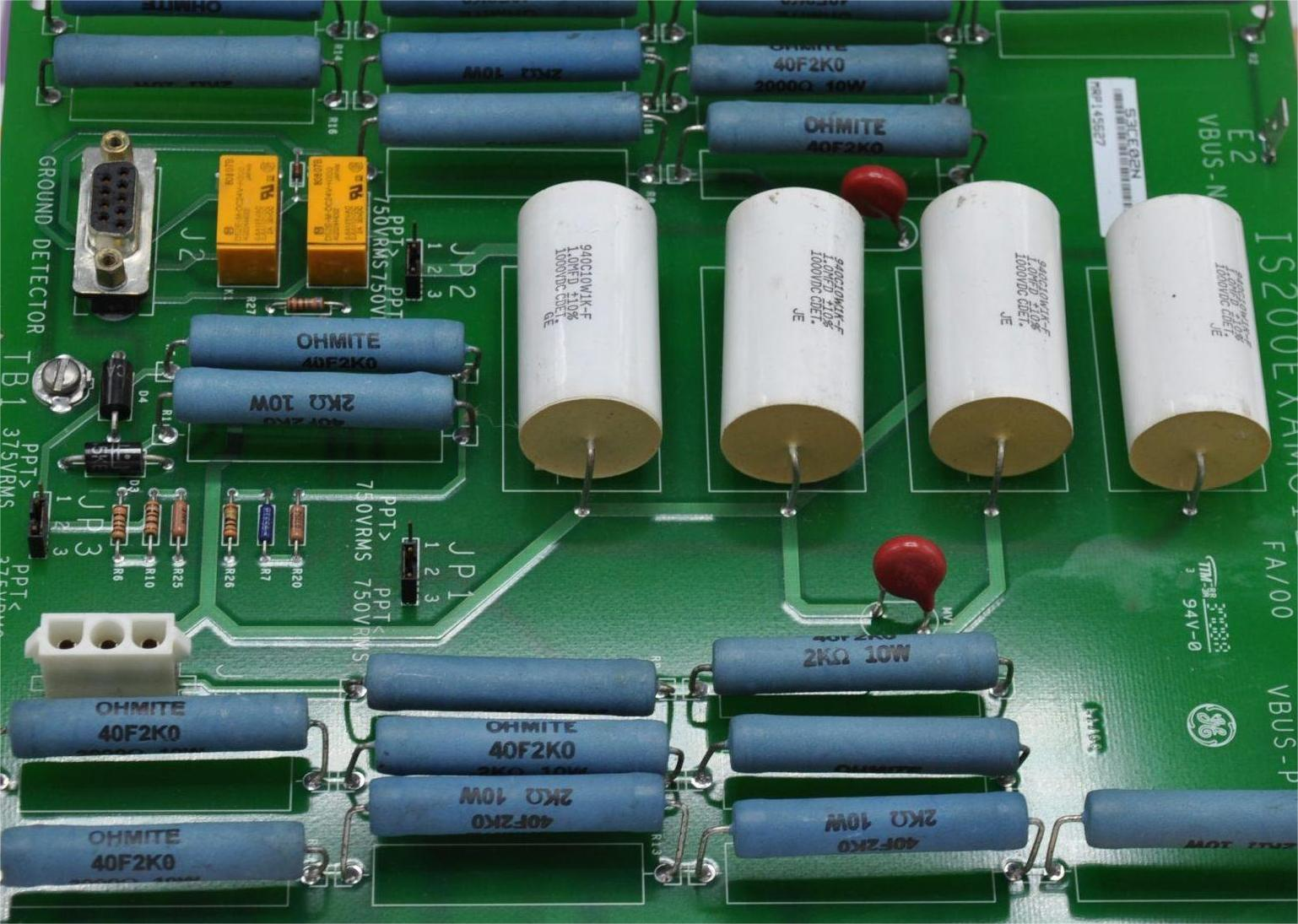

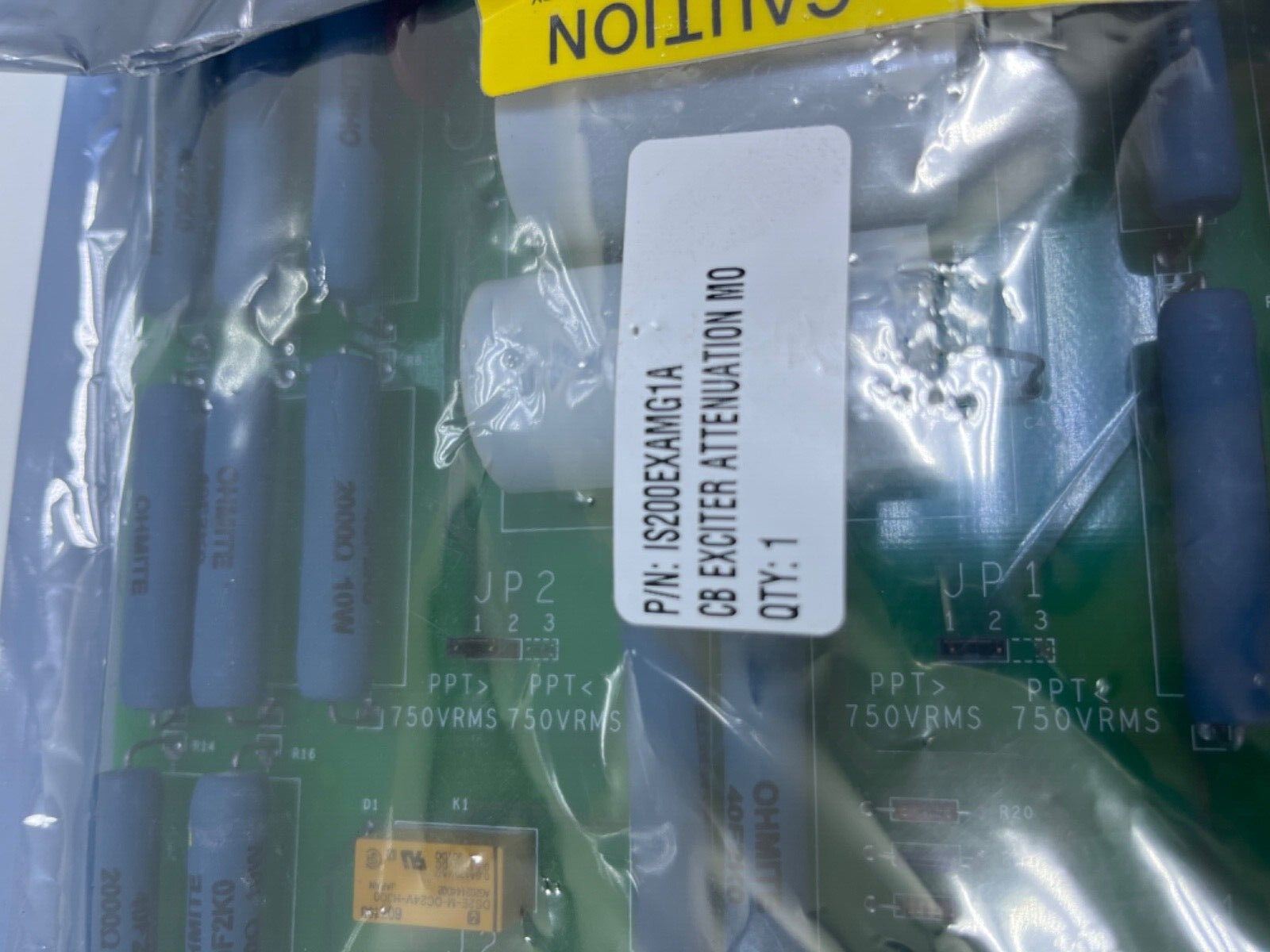

GE IS200EXAMG1AAB Exciter Attenuation Module
Description
| Manufacture | GE |
| Model | IS200EXAMG1AAB |
| Ordering information | IS200EXAMG1AAB |
| Catalog | Mark VI |
| Description | GE IS200EXAMG1AAB Exciter Attenuation Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS200EXAMG1AAB is an Exciter Attenuation Module developed by GE under the Mark VI series.
The ground detection system for the EX2100 Excitation Control is provided by the Exciter Attenuation Module IS200EXAM (EXAM) in conjunction with the Exciter Ground Detector Module IS200EGDM (EGDM).
The EXAM is housed in the auxiliary cabinet's High Voltage Interface (HVI) module. It attenuates the field bus and the EGDM by sensing high voltage from the bridge and scaling it to a usable level.
The Exciter Power Backplane IS200EPBP connects the EXAM and EGDM(s) (EPBP).
The EXAM and the EPBP are linked by a single 9-pin cable. The EGDMs connect to the EPBP via a 96-pin connector, P2. For simplex and triple modular redundant (TMR) applications, only one EXAM is required, and the interconnection is the same.
