GE IS200ESELH1AAA EX2100-Selector Card
Description
| Manufacture | GE |
| Model | IS200ESELH1AAA |
| Ordering information | IS200ESELH1AAA |
| Catalog | Mark VI |
| Description | GE IS200ESELH1AAA EX2100-Selector Card |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS200ESELH1A is an EX2100-Selector Card developed by GE for the Mark VI system.
This is part of the Speedtronic series for steam or gas turbine management.
The Speedtronic series successfully manages heavy-duty turbine systems of various sizes and complexities. This board functions as an Exciter Collector board and receives six logic level gate pulse signals from its corresponding EMIO.
They then distribute these signals to the EGPA exciter gate pulse amplifier boards that are mounted in the power conversion cabinet.
Two ESEL boards are used in redundant systems with one being driven by M1 and the other driven by M2.

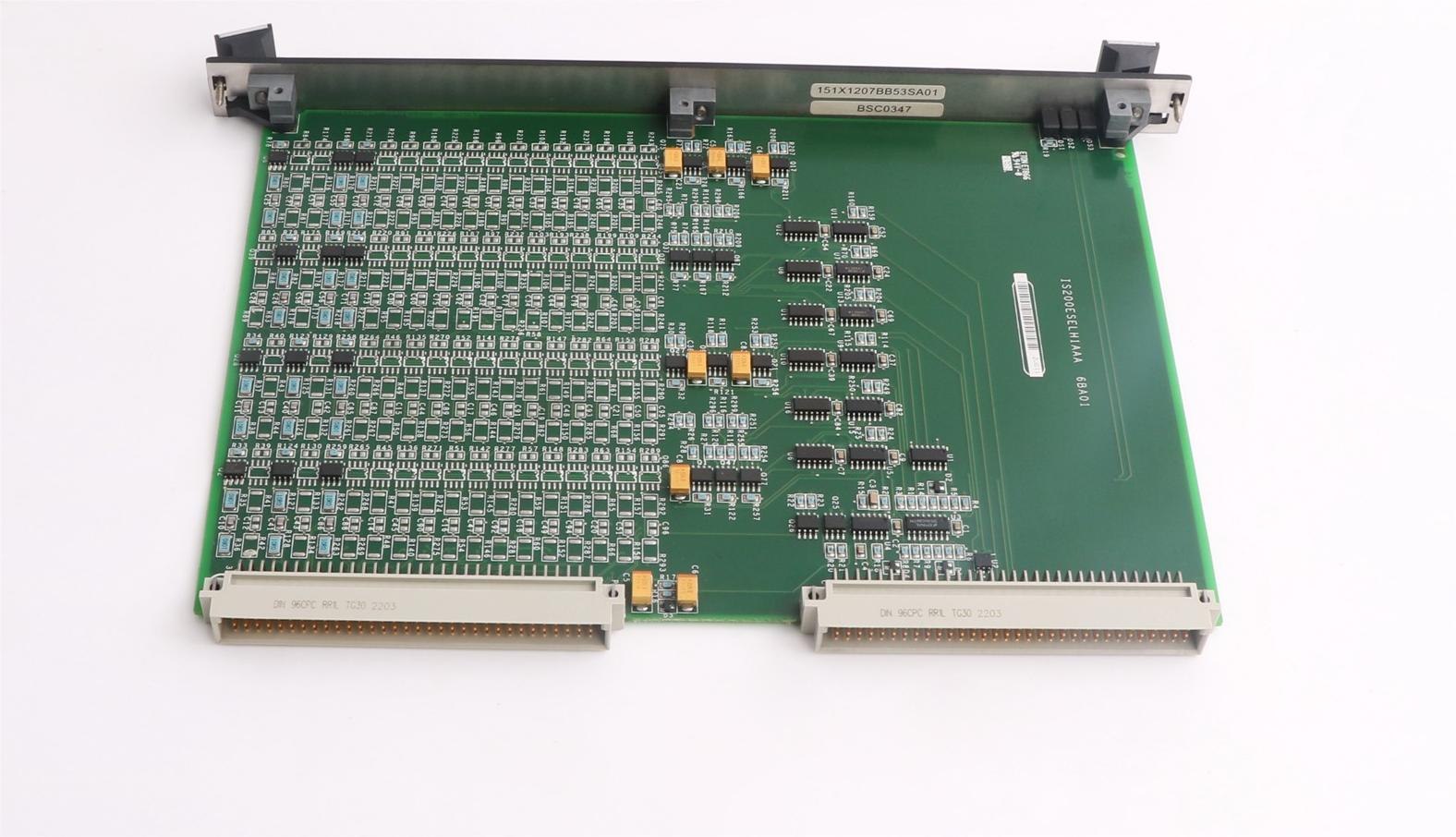

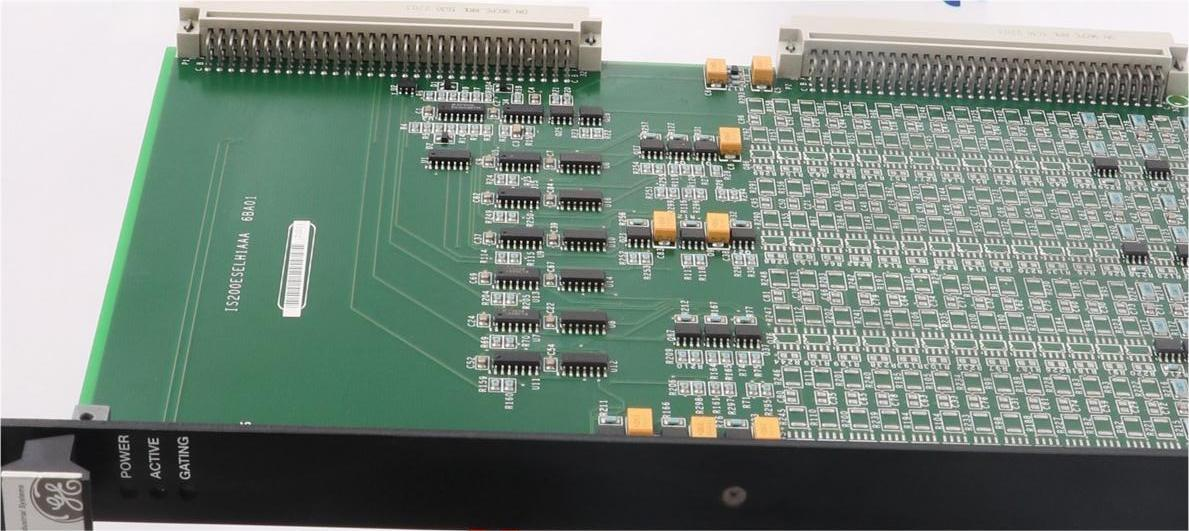

The board carries two backplane connectors and has multiple integrated circuits, over 75 transistors, 95 capacitors, nearly 300 resistors and a single bridge driver.
