GE IS200EPDMG1BAA Speedtronic Turbine Control PCB Board
Description
| Manufacture | GE |
| Model | IS200EPDMG1BAA |
| Ordering information | IS200EPDMG1BAA |
| Catalog | Mark VI |
| Description | GE IS200EPDMG1BAA Speedtronic Turbine Control PCB Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 3.2cm*10.7cm*13cm |
| Weight | 0.3kg |
Details
The IS200EPDMG1BAA is a rectangular board component made by General Electric as part of the Mark VI gas/steam turbine control system. The Mark VI is one of several turbine control systems marketed under the Speedtronic name since the 1960s. This iteration includes Ethernet capabilities and can be built to offer Simplex or TMR (triple modular redundant) control depending on the size and complexity of the associated turbine system.

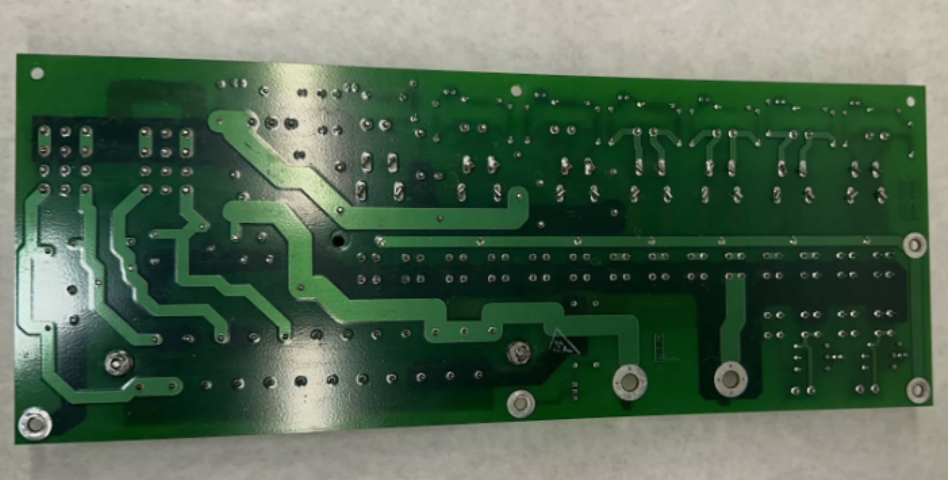

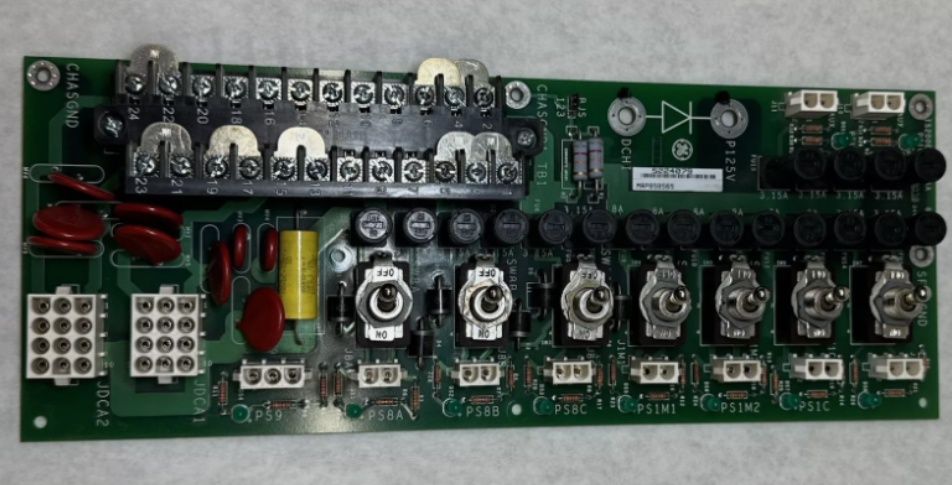

The IS200EPDMG1BAA is built with two terminal blocks located in the bottom corner. Other board components include multiple female plug connectors, the previously-mentioned toggle switches, and multiple fuses to protect all throughput. The board also has metal oxide varistors, capacitors, and resistors. There are eight green LED indicators lined up along one long edge of the board that will let users know when the board is energized.
