GE IS200EHPAG1ABA High Voltage Pulse Amplifier
Description
Manufacture | GE |
Model | IS200EHPAG1ABA |
Ordering information | IS200EHPAG1ABA |
Catalog | Mark VI |
Description | GE IS200EHPAG1ABA High Voltage Pulse Amplifier |
Origin | United States (US) |
HS Code | 85389091 |
Dimension | 3.2cm*10.7cm*13cm |
Weight | 0.3kg |
Details

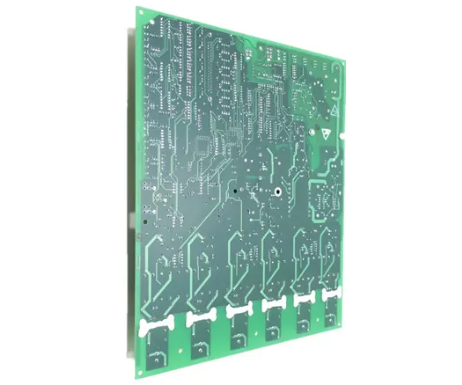

Exciter high voltage pulse amplifier board IS200EHPAG1ABA is part of the EX2100 series. The pulse amplifier board's purpose is to directly control silicon-controlled rectifiers (SCRs). On the actual board, there are multiple connectors, a total of fourteen plug connectors, and a set of three female board connectors. These plug-connectors have different plug options and quantities. Eight of the connectors are two-plug, four are four-plug, and two are six-plug connectors. The connectors are located in the upper right corner of the board near four standoffs which can be used for the attachment of an optional daughterboard.
