GE IS200DRTDH1A RTD Terminal Board
Description
| Manufacture | GE |
| Model | IS200DRTDH1A |
| Ordering information | IS200DRTDH1A |
| Catalog | Mark VI |
| Description | GE IS200DRTDH1A Terminal Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IS200DRTDH1A is a PCB (printed circuit board) component manufactured by GE as part of their Mark VI Speedtronic system for the management of gas and steam turbines.
RTD terminal boards act as resistance temperature detectors. They typically provide galvanic isolation or transient protection for part of the system they are attached to. Depending on the setup and type of board, RTDs can offer simplex, dual, or TMR control.
The IS200DRTDH1A is a DIN-rail mounted board. It is encircled by a DIN rail carrier on all sides. The board itself is marked with codes like PLC-4, 6DA00 and 6BA01.

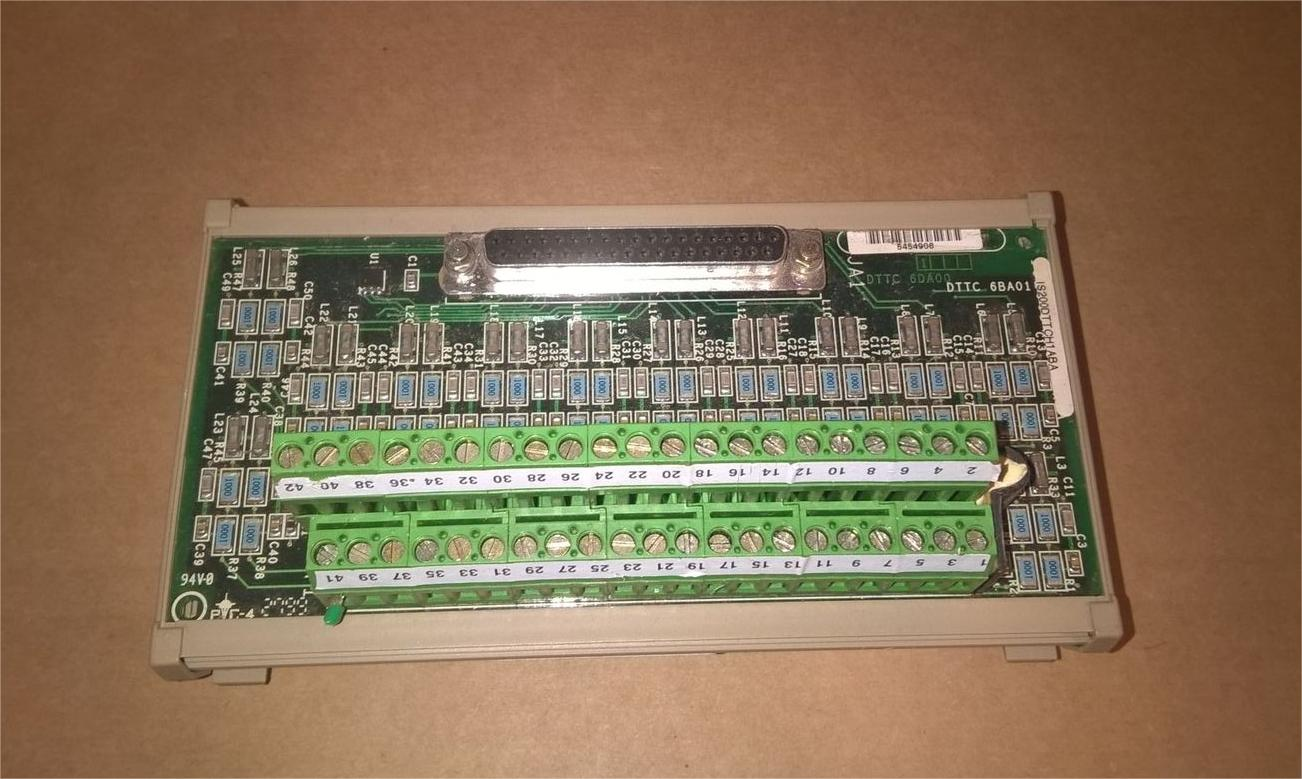

It also has a barcode attached near one short edge. The board has very few components, but these include one d-shell female connector with screw connects to secure cable connections, a euro-block style two-level terminal block, an integrated circuit, and two rows of capacitors. The board has been drilled in two corners.
More information about the IS200DRTDH1A, including detailed information about proper installation and handling procedures, can be found via original GE documentation like manuals and datasheets. AX Control ship from our North Carolina facility daily, Monday through Friday. Orders placed before 3 pm typically ship the same day if your part is in stock.
