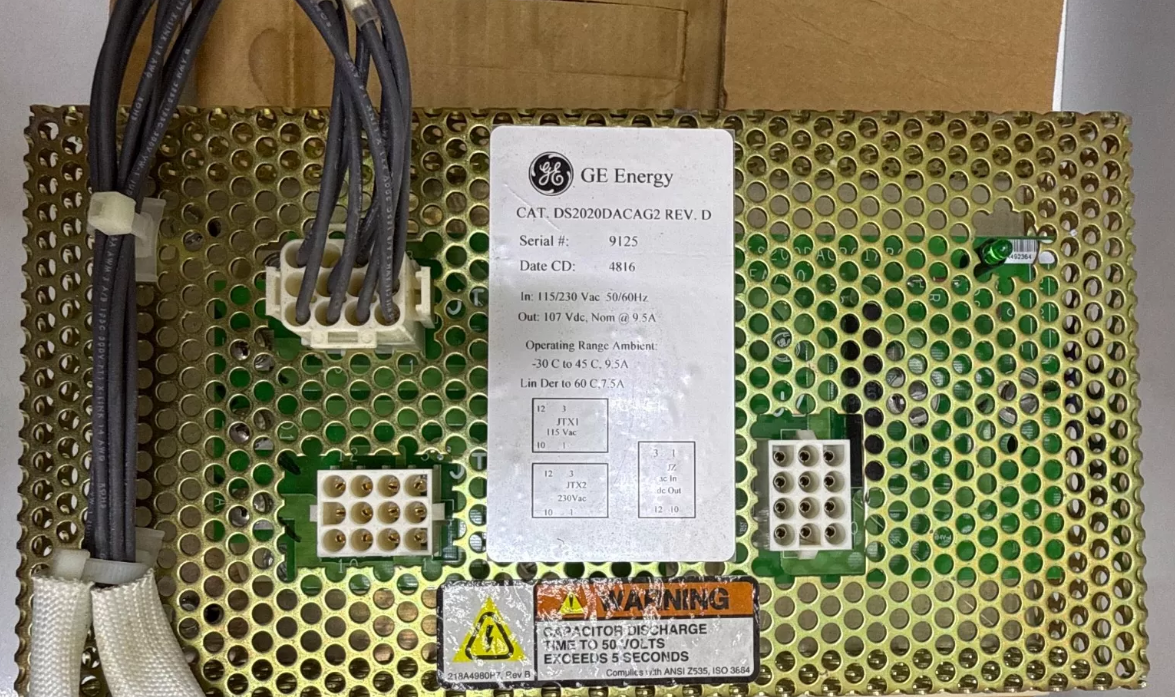

The DS2020DACAG2 is a power conversion module in the GE Speedtronic Mark V series, also known as a transformer assembly (DACA).

The main function of this module is to convert alternating current (VAC) to direct current (VDC). It can be used with the main power supply, with or without battery backup.

When the system loses power, the DS2020DACAG2 module can provide additional local energy storage to help the control system maintain operation for a longer period of time without main power, but it does not have self-diagnostic functions or monitor its input and output levels.

Power Conversion: The DS2020DACAG2 is mainly responsible for converting alternating current (VAC) to direct current (VDC) to support the power needs of the control system.

Energy Storage: The module can provide local energy storage to help the control system maintain operation for a period of time in the event of a system power outage.

Diagnostic Functions: The module itself has no diagnostic capabilities and cannot monitor power input and output levels. All diagnostic functions will be performed by other equipment in the power distribution system.

Environmental Requirements for Use Environmental Conditions: The module can only be used in an environment without corrosive or flammable materials.

Its operating temperature range is -30°C to +65°C, relative humidity is 5%-95%, and non-condensing is required.

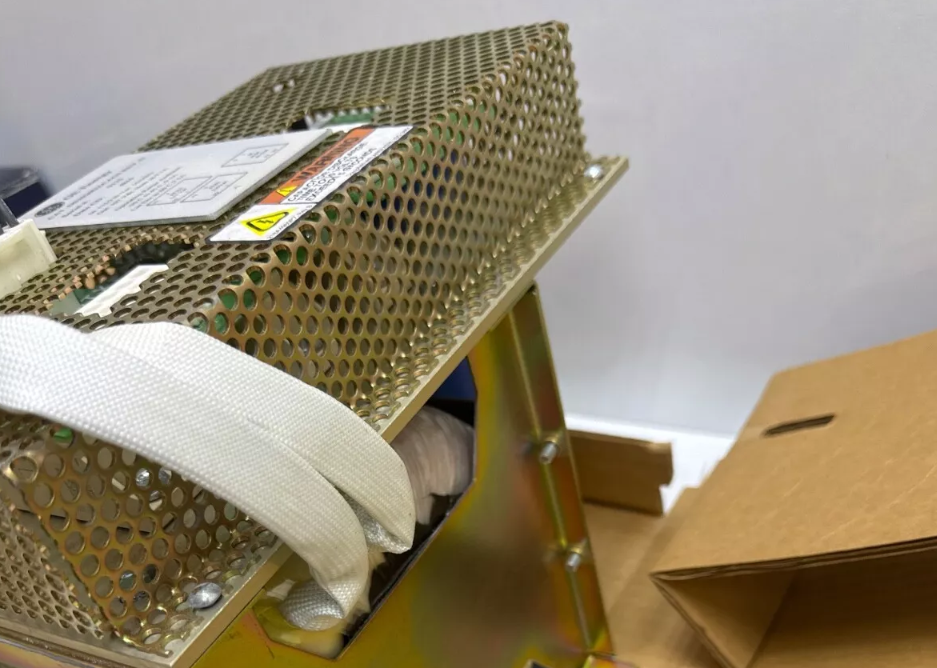

Installation method: DS2020DACAG2 can be fixed to the floor of the drive cabinet by special brackets and bolts.

The module is equipped with four brackets, and bolt installation can ensure that it is stably fixed to the ground.
